MUTOH ValueJet 1604 - 5.13.2 PF Motor Endurance Menu

VJ-1604 Maintenance Manual 5 Self-Diagnosis Mode
5-67 Rev.-05

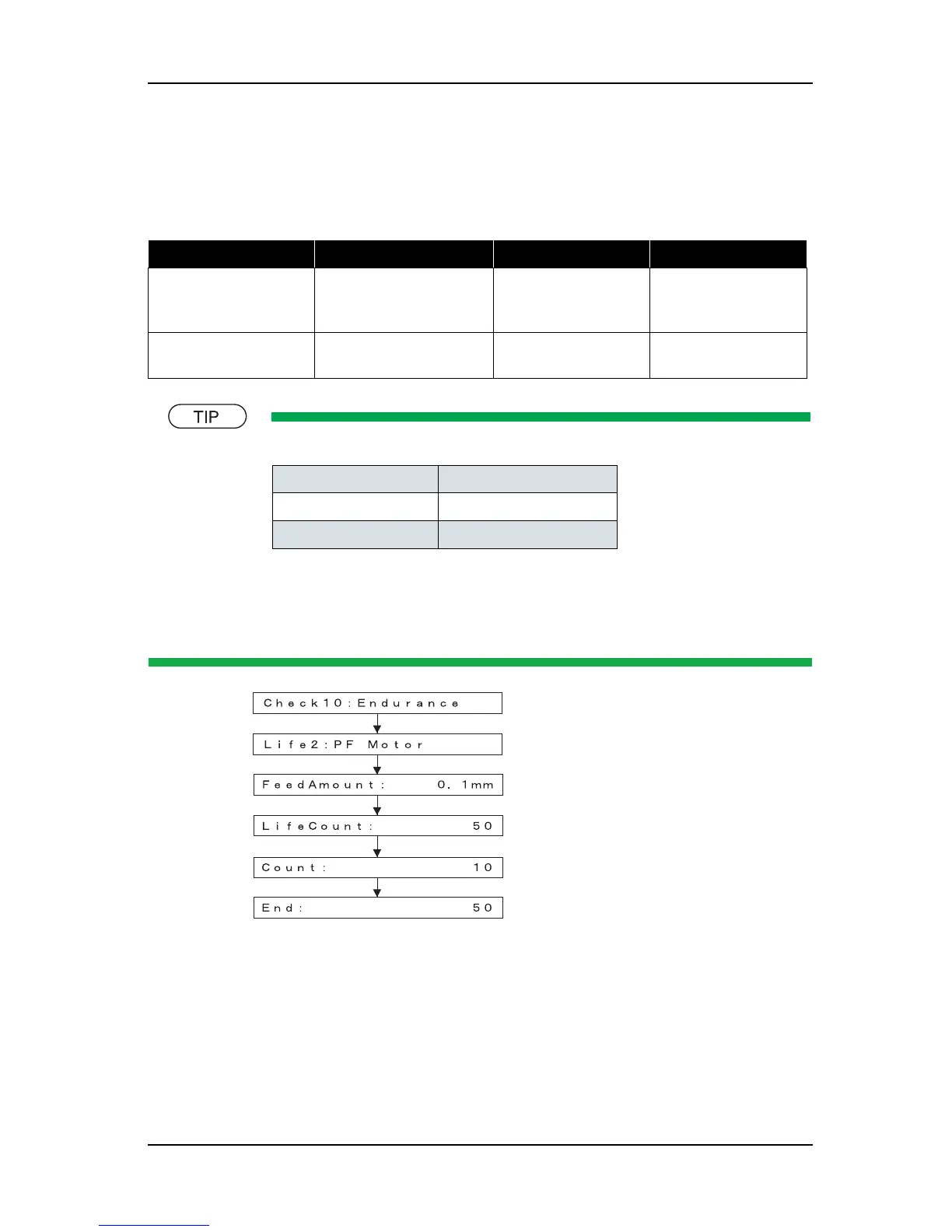

5.13.2 PF Motor Endurance Menu
This menu performs endurance running for the PF motor.
You can drive the PF motor according to your desired settings. The available settings are shown below.
• The following table shows the motor moving parameters to media feed amount.
• If the number of endurance running cycles is set to -1, the carriage continuously repeats endurance
running until cancel input is given from the operation panel.
• The maximum counter value for endurance running cycles is 99999999 (up to 8-digit number). If the
number of cycles exceeds the maximum value, the counter is reset to 0.
Table 5-23 Set Items in PF Motor Endurance Menu
Set item Contents Set value Remark
Media feed amount Set the media feed amount
per endurance running
cycle.
0.1 to 100 Unit: mm
Number of endurance
running cycles
Set the number of
endurance running cycles.
-1 to 10000 -
Speed
35CPS
Acceleration
0.1G
Deceleration
0.1G
Enter a media feed amount by using ±.
Range : 0.1 to 100.0 mm
Endurance Count
Performing endurance
[Enter]
[Enter]
[Enter] or [Cancel]
[Enter]
[Enter]
