VJ-1604　 Maintenance Manual 4 Parts Replacement
4-159 Rev.-05

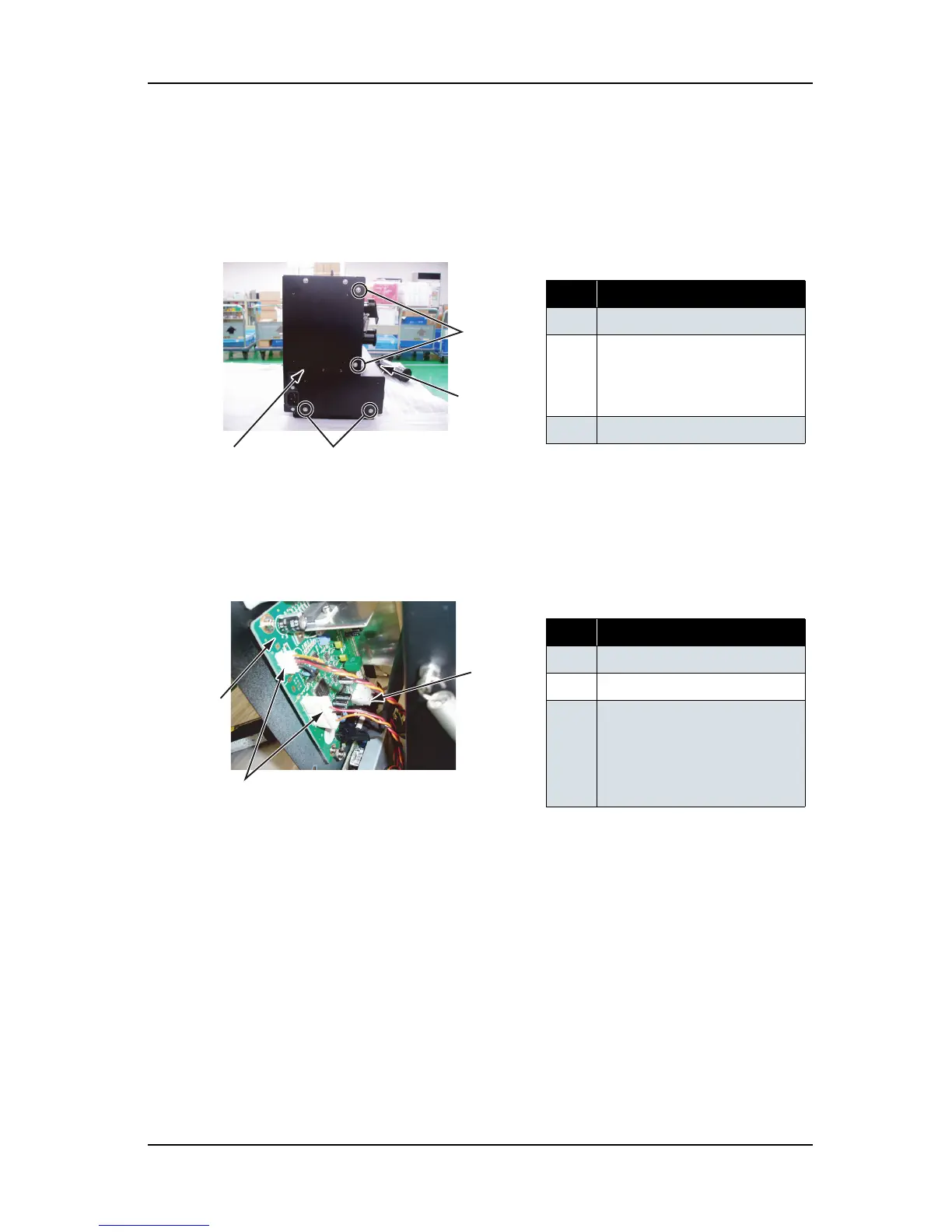

4.13.5 Replacing VJ Take-up CNT Board Assembly
(1) Removing Board Chassis
1. Remove the screws (pan-head screw with spring washer and flat washer M3 × 6: 4 pieces) that retain the
board chassis on the chassis (out).
2. Detach the motor cable, W_ON sensor relay assembly and the W_OFF sensor relay assembly from the
connector to the VJ take-up CNT board assembly that appears.
3. To reassemble the unit, reverse the removal procedure.
No. Part name
1 Board chassis
2 Screws that retain the board
chassis (pan-head screw with
spring washer and flat washer
M3
× 6: 4 pieces)
3 Chassis (out)
No. Part name
1 VJ take-up CNT board assembly
2 Motor cable
3 W_ON sensor relay assembly,
W_OFF sensor relay assembly
1
2
2
3
1
2
3
To Next Page
