VJ-1604 Maintenance Manual 4 Parts Replacement
4-23 Rev.-05
3. Remove the side top cover L.
"4.2.7 Removing Side Top Cover L" p.4-14
4. Remove the cartridge cover (upper).
"4.2.9 Removing Cartridge Cover (Upper)" p.4-17

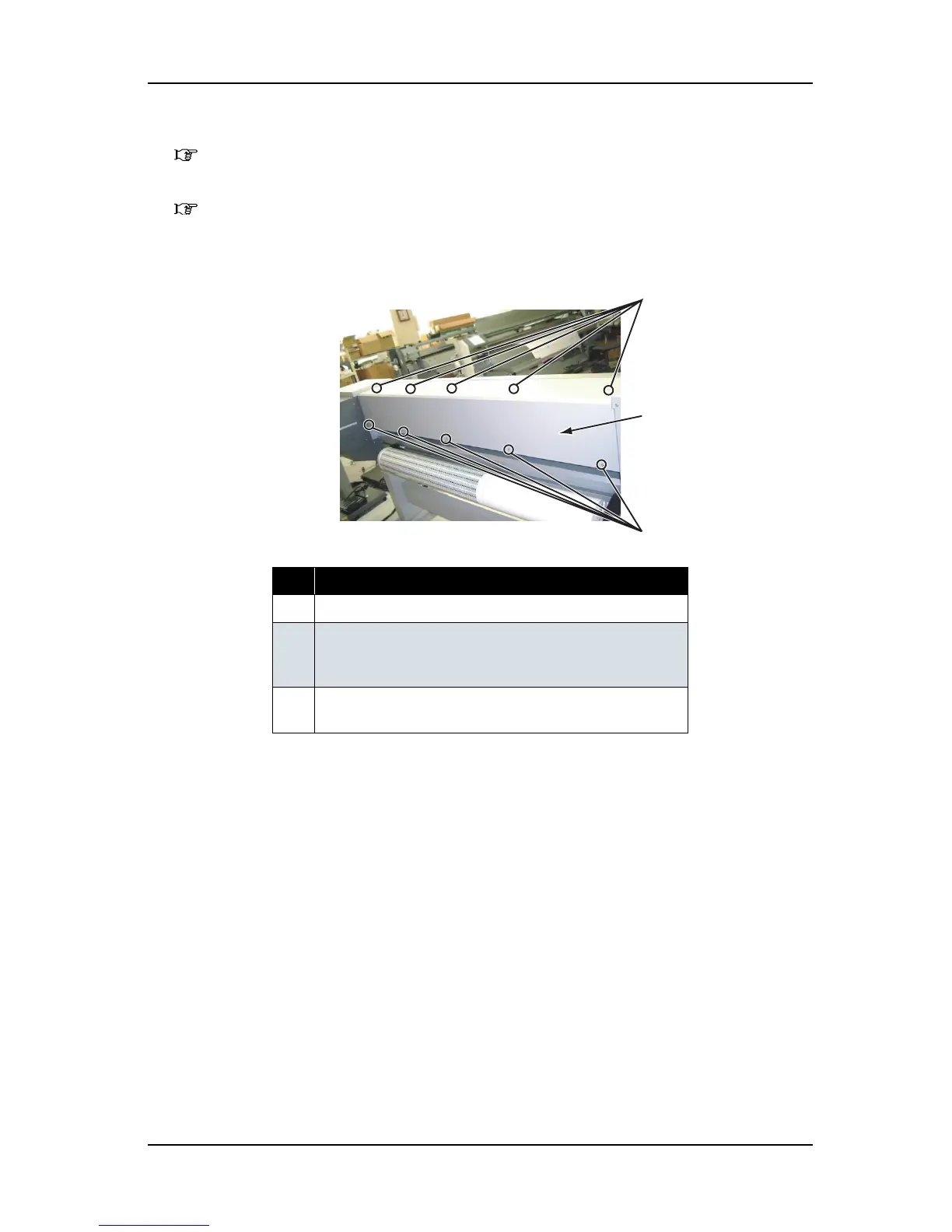

5. Remove the screws (5 pieces) on the back of the rear top cover.
6. Remove the screws (5 pieces) on the upper side of the rear top cover.
7. Remove the rear top cover.
8. To reassemble the unit, reverse the removal procedure.
No. Part name
1 Rear top cover
2 Screws that retain the rear top cover
(pan-head screw with spring washer and flat washer M4
×
8)
3 Screws that retain the rear top cover
(cup screw M3
× 8)
2
1
3
