VJ-1604 Maintenance Manual 4 Parts Replacement
4-25 Rev.-05
4. Remove the screws (5 pieces) that retain the front of the top cover.
5. Remove the top cover.
6. To reassemble the unit, reverse the removal procedure.
4.2.17 Removing Media Guide F (Upper)
Media guide F (upper) removal must be done by 2 or more persons.
1. Remove the maintenance cover.
"4.2.2 Removing Maintenance Cover" p.4-9

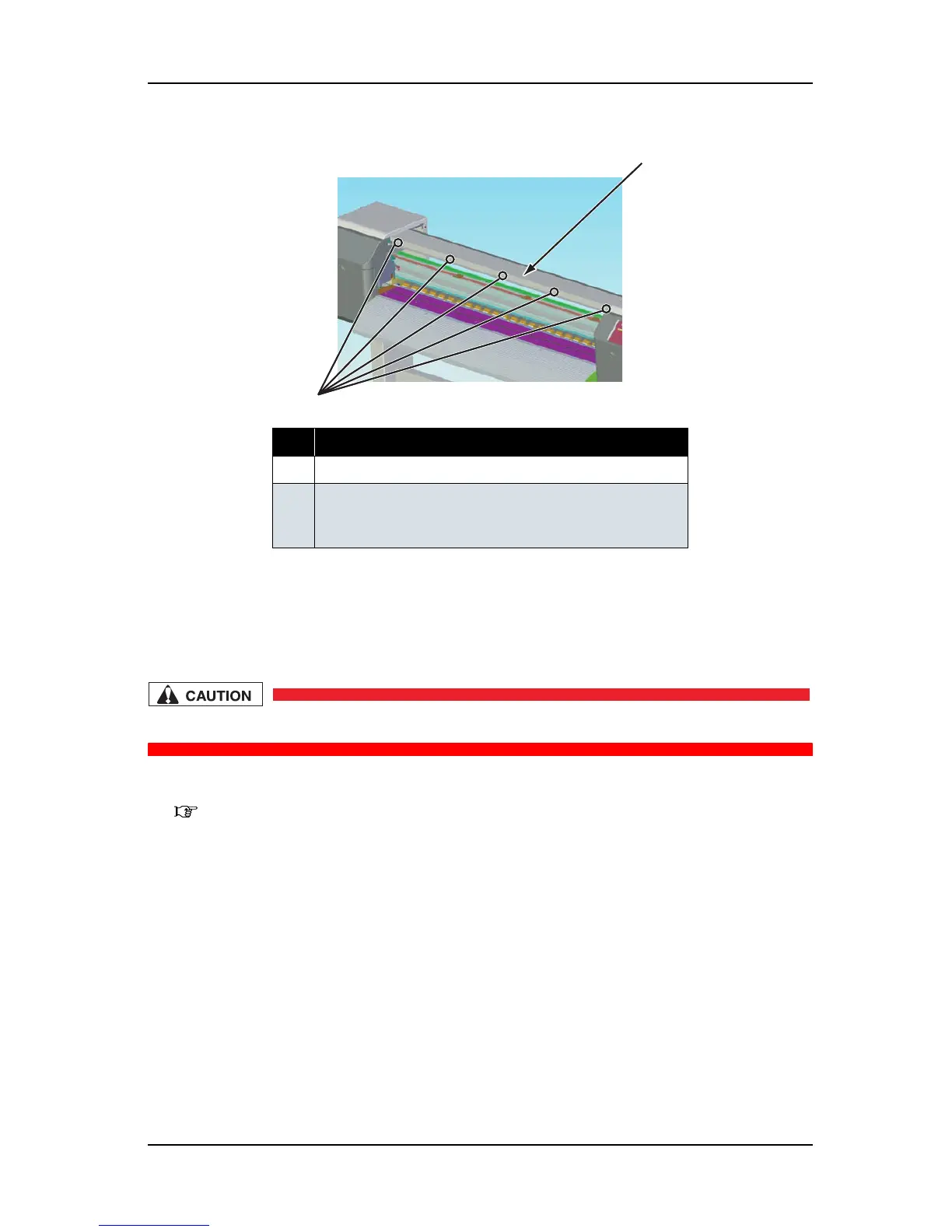

No. Part name
1 Top cover
2 Screws that retain the top cover
(pan-head screw with spring washer and flat washer M3
×
8)
2
1
Front view
