MUTOH ValueJet 1604 - Replacing CR Origin Sensor

VJ-1604 Maintenance Manual 4 Parts Replacement
4-97 Rev.-05
12. To reassemble the unit, reverse the removal procedure.
4.7.5 Replacing CR Origin Sensor
1. Open the maintenance cover R.
2. Remove the side top cover R.
"4.2.6 Removing Side Top Cover R" p.4-12
3. Move the carriage to the left side (opposite side of the origin)
"4.8.1 Releasing Head Lock" p.4-106
4. Remove the CR_ORG cable assembly.

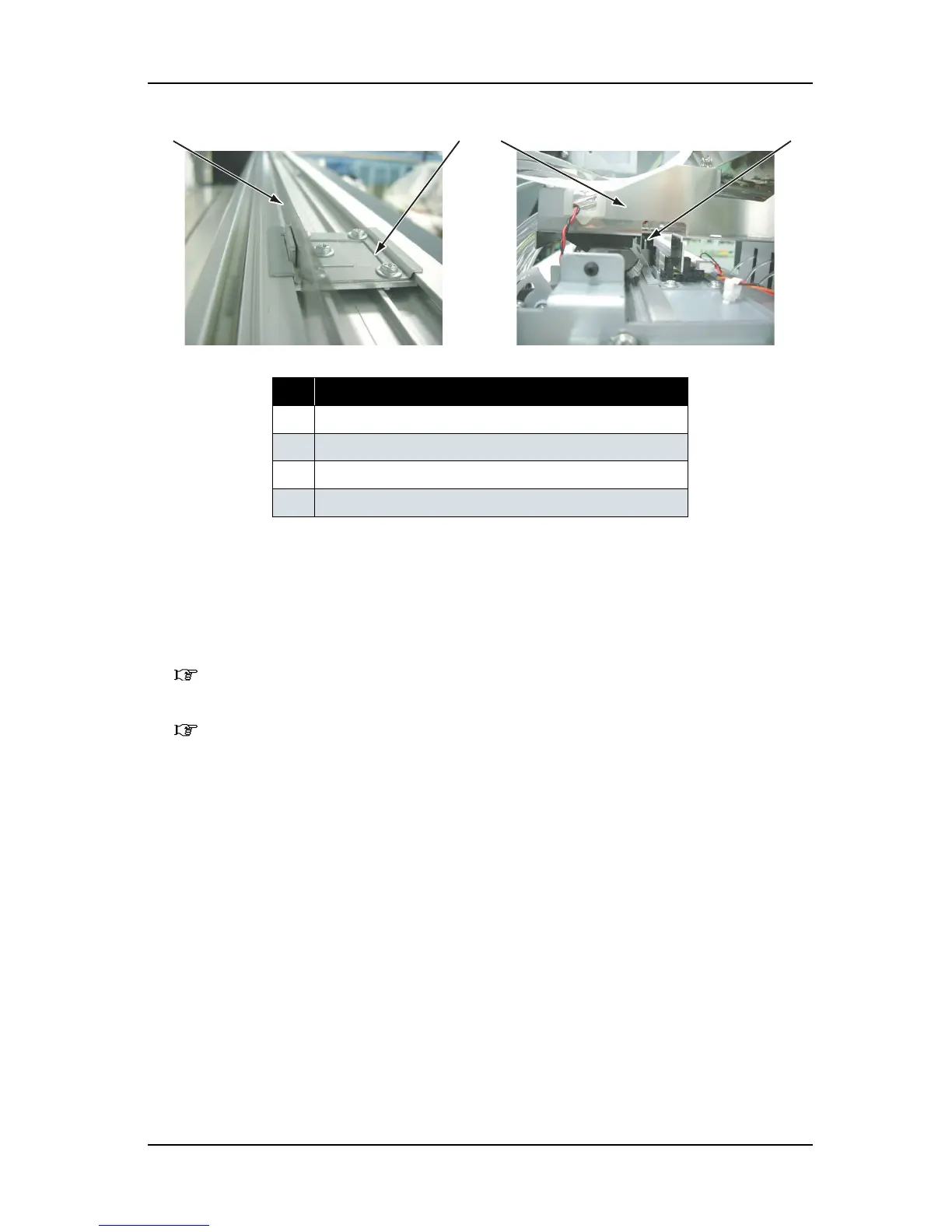

No. Part name
1 T fence guide plate
2 T fence
3 CR_ENC assembly
4 Carriage
3
1
2
4
