5.5.5 Encoder Menu

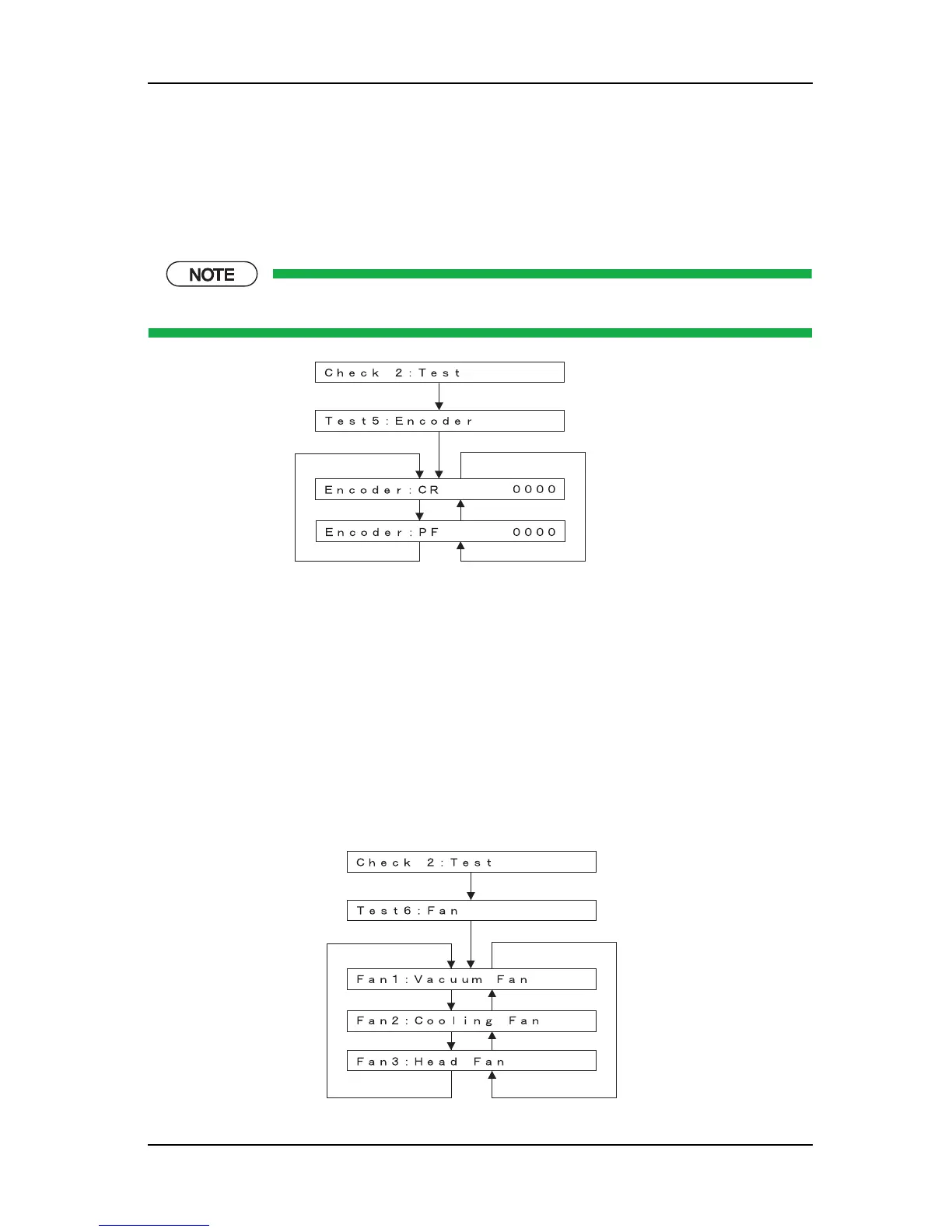

This menu displays the detected values from the following encoders.
• CR_ENC (Carriage)
• PF_ENC (Media feed)
For the encoder-detected values, the encoder pulse numbers are displayed in hexadecimal number.
5.5.6 Fan Menu
This menu is used to check if the fans operate normally by turning them ON and OFF.
If this operation is selected, the fans operate as follows:
• Suction fan: Turns to ON
• Cooling fan: Turns to OFF
• Head fan: Turns to ON
If you press [Cancel] key, the suction fan is deactivated and the cooling fan is resumed, and the display shifts
to "Test 6: Fan".
