4 Parts Replacement VJ-1604 Maintenance Manual
Rev.-05 4-100
Seven parts are accompanied when removing the CR drive pulley. They are collectively called CR
driven pulley assembly except for the screw caps.
8. To reassemble the unit, reverse the removal procedure.
9. Adjust the steel belt tension.
"7.4 Steel Belt Tension Adjustment" p.7-26
4.7.7 Replacing Steel Bearer
1. Remove the side top cover R.
"4.2.6 Removing Side Top Cover R" p.4-12
2. Remove the rear top cover.
"4.2.15 Removing Rear Top Cover" p.4-21

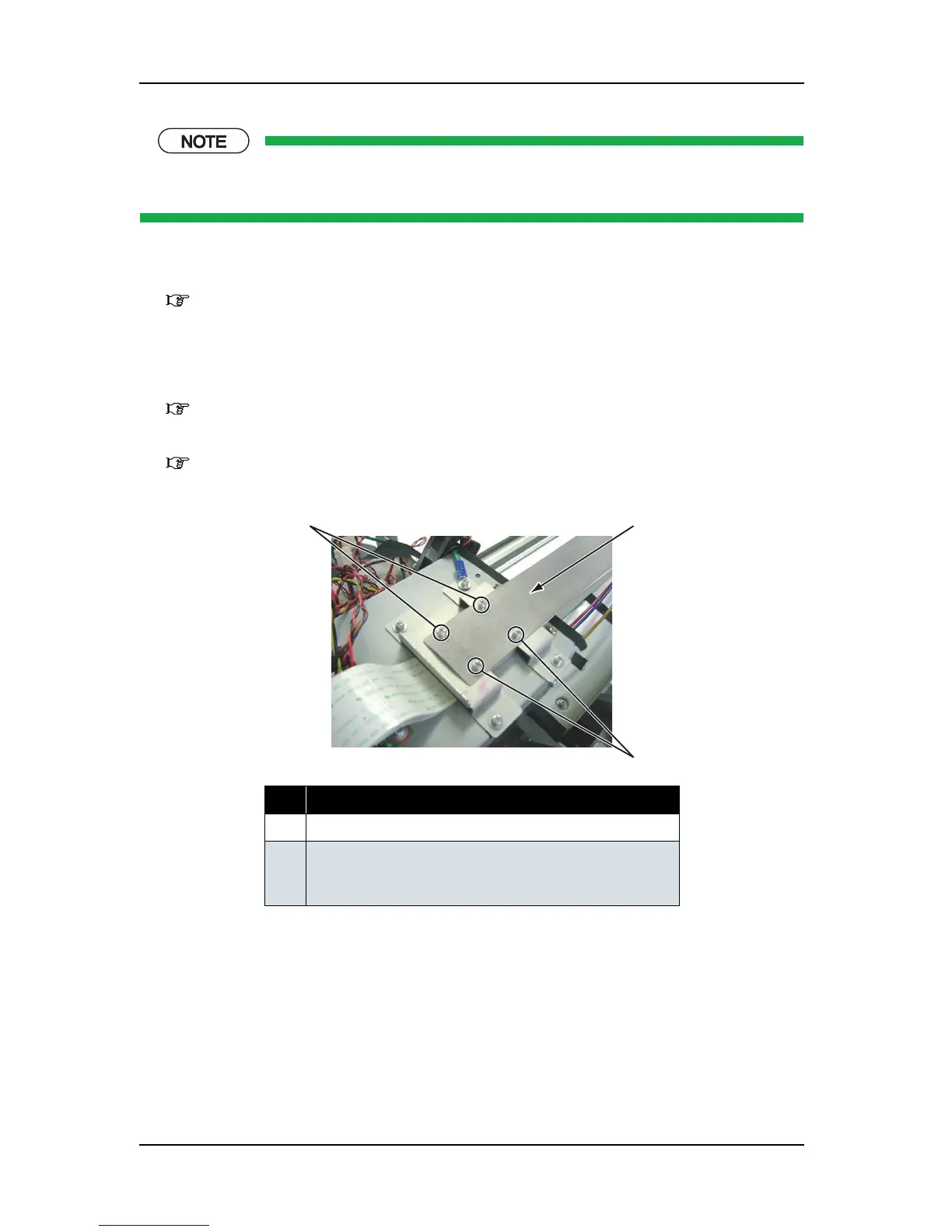

3. Remove the screws (4 pieces) that retain the steel bearer.
No. Part name
1 Steel bearer
2 Screws that retain the steel bearer
(pan-head screw with spring washer and flat washer M3
×
6)
2
1
2
To Next Page
