VJ-1604 Maintenance Manual 4 Parts Replacement
4-101 Rev.-05

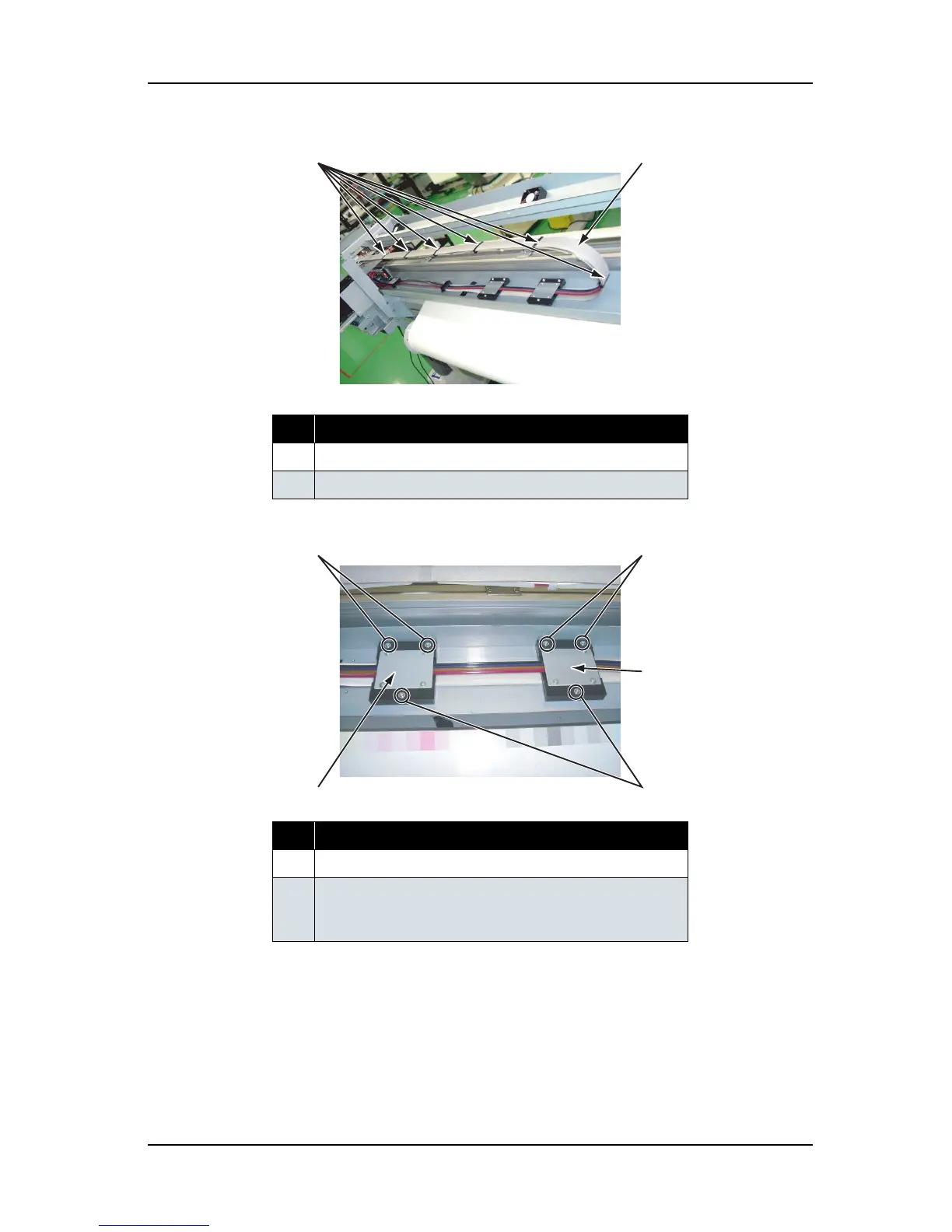

4. Remove the film FFC retainers (6 pieces).
5. Remove the screws (3 pieces each) that retain the cable guides (2 pieces).
6. Remove the cable guide.
7. Remove the steel bearer.
8. Replace the steel bearer.
9. To reassemble the unit, reverse the removal procedure.
No. Part name
1 Steel bearer
2 Film FFC retainer
No. Part name
1 Cable guide
2 Screws that retain the cable guide
(pan-head screw with spring washer and flat washer M3
×
18)
1
2
2
2
1
1
2
