MUTOH ValueJet 1604 User Manual

4 Parts Replacement VJ-1604 Maintenance Manual
Rev.-05 4-112
4.8.5 Replacing PG Origin Sensor Assembly
1. Open the maintenance cover R.
2. Open the side top cover R.
"4.2.6 Removing Side Top Cover R" p.4-12
3. Remove the PG origin sensor relay assembly.
4. Remove the PG origin sensor assembly.
5. Replace the PG origin sensor assembly.
6. To reassemble the unit, reverse the removal procedure.

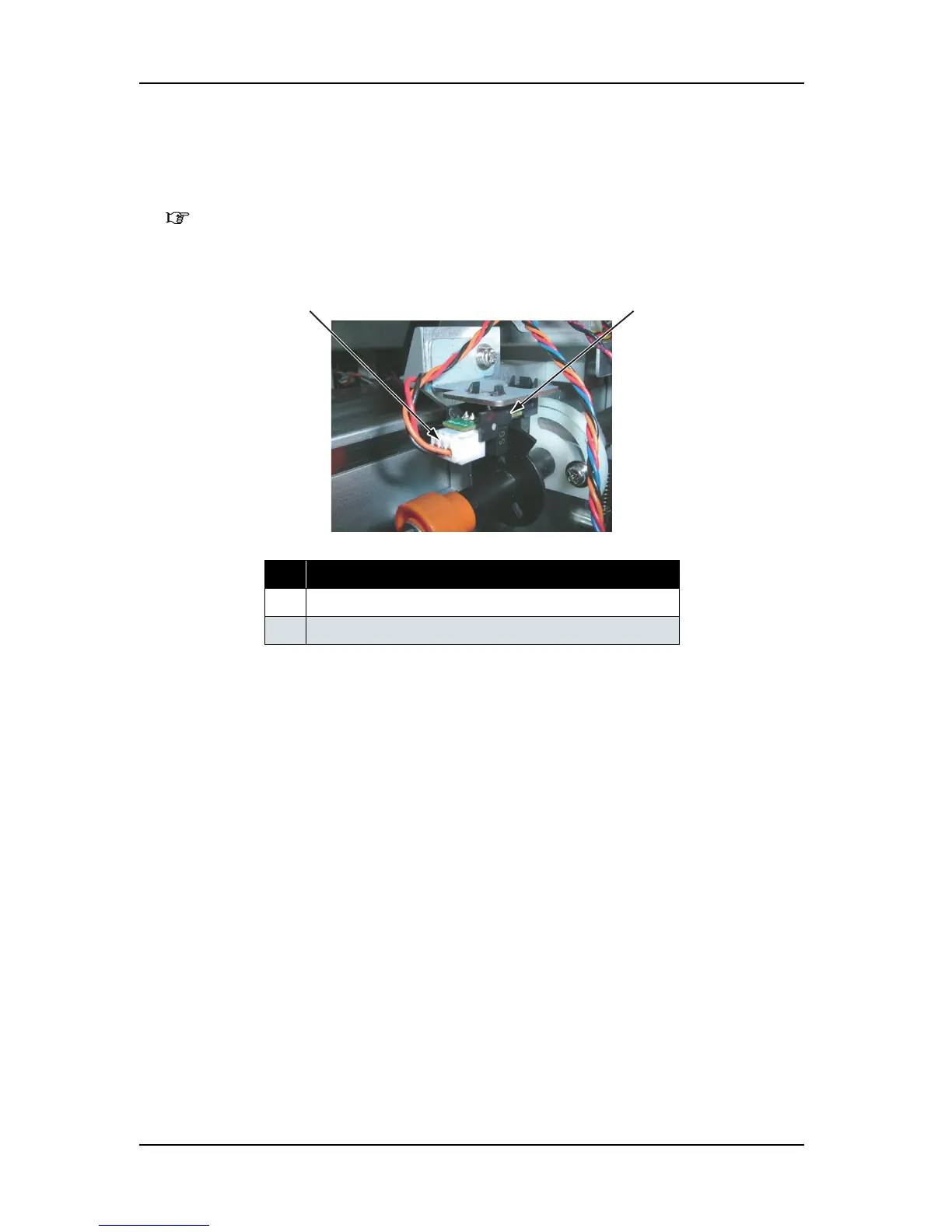

No. Part name
1 PG origin sensor relay assembly
2 PG origin sensor assembly
2
1
