5 Self-Diagnosis Mode VJ-1604 Maintenance Manual
Rev.-05 5-40
(The following shows a case for “Bi-D 240 - Setup” is selected.)
The initial value is set to values that are suited for the manufacturer genuine ink.

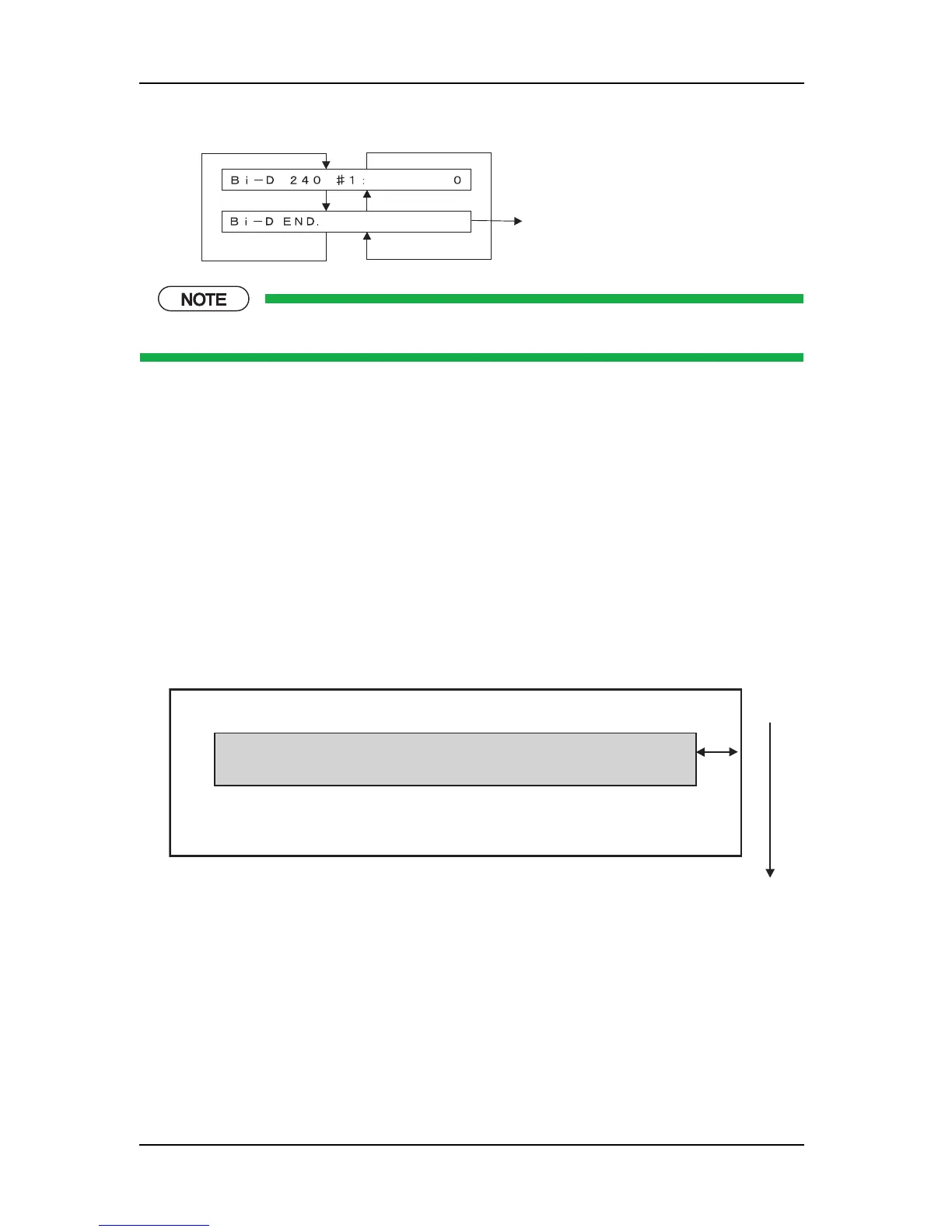

5.7.6 Side Margin Adjustment Menu
This menu is used to adjust the printing margins.
To adjust the margins, follow the steps below.
1. Set media as necessary.
2. After media is set, the detected width of the set media is displayed.
3. After media is set, the plotter prints out band feed correction adjustment patterns and cuts the media in
the following modes.
• Black, 1 pass, Uni-D, 360 dpi
* If "check" is selected, black replaces magenta.
4. Check the printed side margin adjustment patterns for the measurement.
1: Side margin
2: Media feed direction
[<] key
[<] key
[>] key
[>] key
Press [Setting/Value+] or [Setting/Value-] key
to change unit to pulseޓ
1 pulse = 1/2880 inch
Pulse range: -400 VQ400
Back to Uni㨺D/Bi-D Top menu
1
2
TOP
To Next Page
