MUTOH ValueJet 1604 - Removing Media Guide R (Upper)

4 Parts Replacement VJ-1604 Maintenance Manual
Rev.-05 4-28

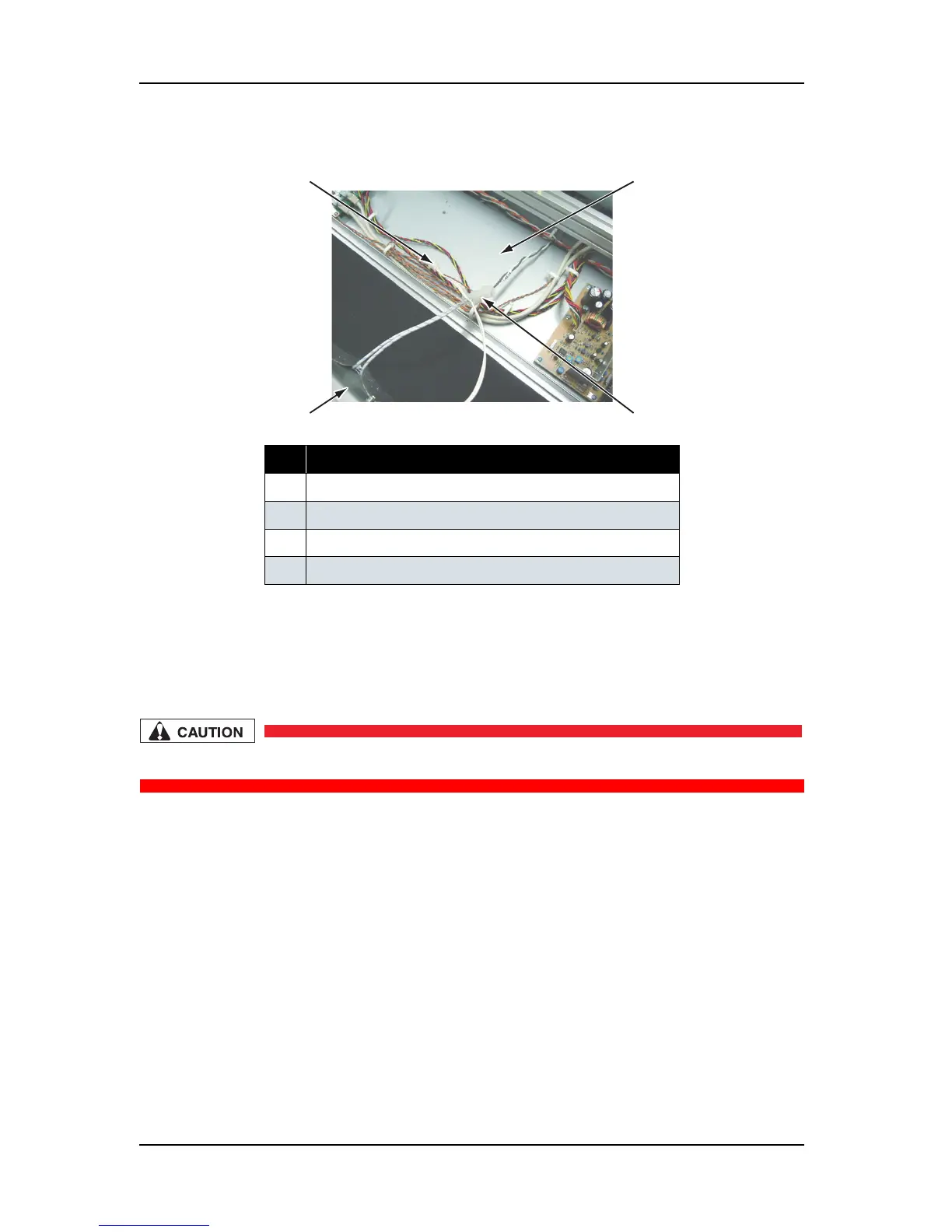

9. Remove the two connectors to the after-heater and the two connectors to the after-thermistor that are
inside the media guide F (upper).
10. Remove the media guide F (upper).
11. To reassemble the unit, reverse the removal procedure.
4.2.18 Removing Media Guide R (Upper)
Media guide R (upper) removal must be done by 2 or more persons.
1. Remove media.
No. Part name
1 Media guide F (upper)
2 Media guide F (lower)
3 Connector to the after-thermistor
4 Connector to the after-heater
2
1
3
4
