VJ-1604 Maintenance Manual 4 Parts Replacement
4-27 Rev.-05

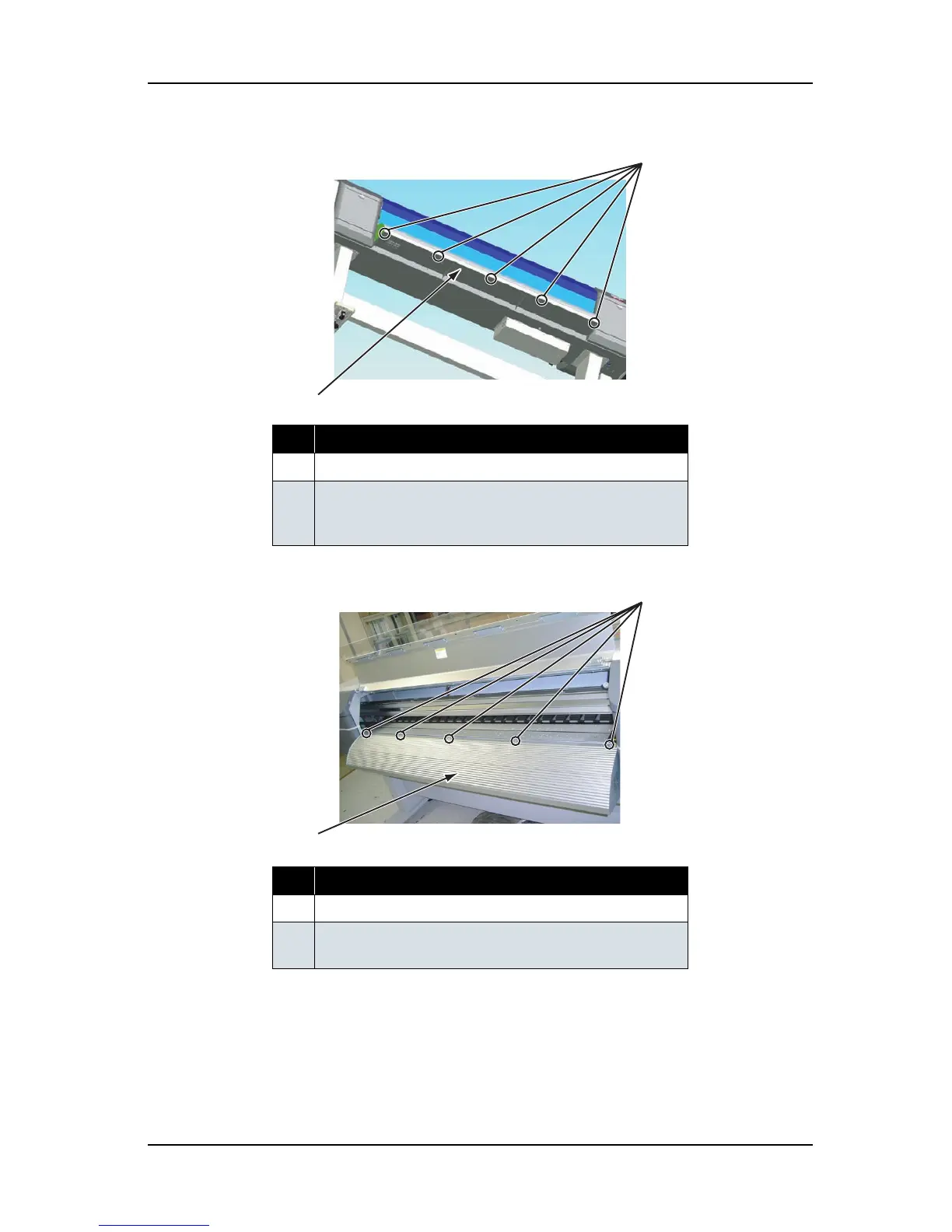

6. Remove the screws (5 pieces) that retain the bottom of the media guide F (upper).
7. Remove the screws (5 pieces) that retain the media guide F (upper).
8. Lift up the media guide F (upper).
No. Part name
1 Media guide F (upper)
2 Screws that retain the media guide F (upper)
(pan-head screw with spring washer and flat washer M4
×
8)
No. Part name
1 Media guide F (upper)
2 Screws that retain the media guide F (upper)
(binding small screw M3
× 6)
1
2
1
2
