MUTOH ValueJet 1604 - Removing Top Cover

4 Parts Replacement VJ-1604 Maintenance Manual
Rev.-05 4-24

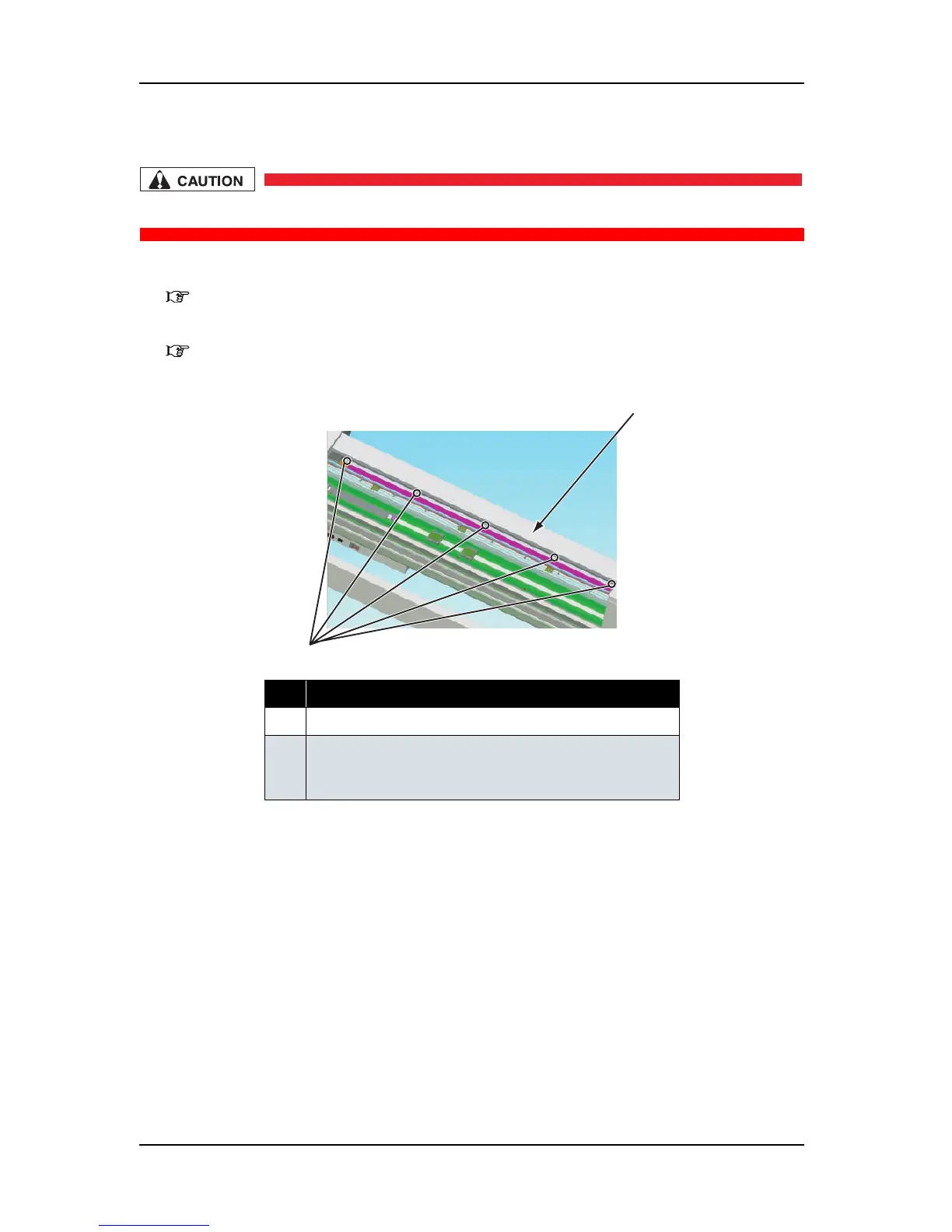

4.2.16 Removing Top Cover
Top cover removal must be done by 2 or more persons.
1. Remove the front cover.
"4.2.14 Removing Front Cover" p.4-21
2. Remove the rear top cover.
"4.2.15 Removing Rear Top Cover" p.4-21
3. Remove the screws (5 pieces) that retain the back of the top cover.
No. Part name
1 Top cover
2 Screws that retain the top cover
(pan-head screw with spring washer and flat washer M3
×
8)
2
1
Rear view
