VJ-1604 Maintenance Manual 4 Parts Replacement
4-151 Rev.-05

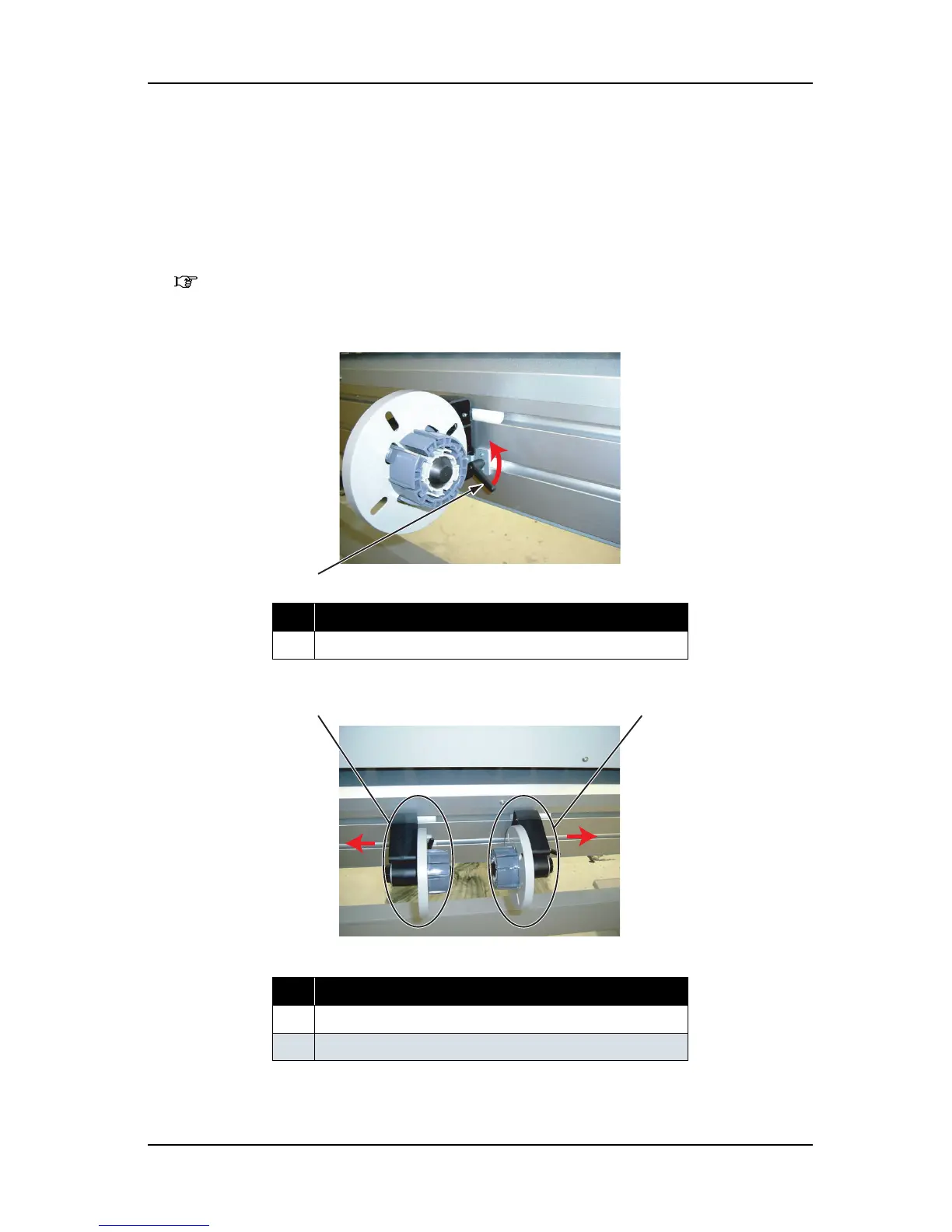

4.12 Replacing Roll Media Holder Assembly
This section describes the procedure to replace the roll media holder assembly.
4.12.1 Replacing Roll Media Holder Assembly on the VJ16_L Side
1. Remove the media guide R (lower).
"4.2.19 Removing Media Guide R (Lower)" p.4-29
2. Release the roll media fixing lever.
3. Pull out the roll media holder assembly on the VJ16_L side from the left side.
4. Replace the roll media holder assembly on the VJ16_L side.
No. Part name
1 Roll media fixing lever
No. Part name
1 Roll media holder assembly on the VJ16_L side
2 Roll media holder assembly on the VJ16_R side
1
1
2
