5 Self-Diagnosis Mode VJ-1604 Maintenance Manual
Rev.-05 5-10
5.4 Platen Adjustment Menu
In the platen adjustment menu, you can set the temperature of the pre-heater and platen heater to 42° C.
Parts assembly and adjustment should be done in the condition.
* This item displays platen temperature only.

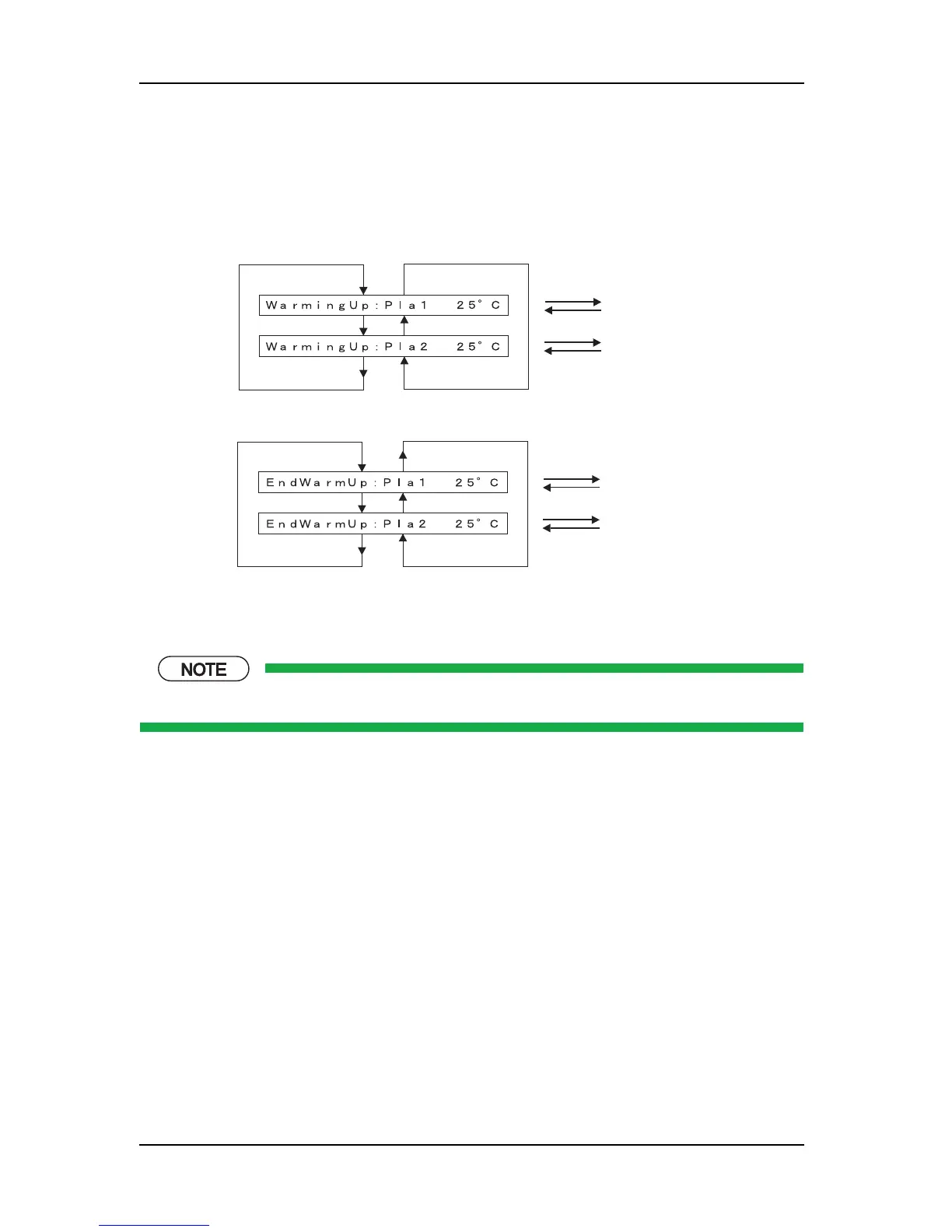

Fig. 5-1 If the heater temp. does not reach 42° C
Fig. 5-2 If Pla1 reaches 42
° C
* Pla2 is a reference value. Though Pla2 does not reach 42°C, Pla1 reaches 42° C and it will be complete.
When the heater reaches the specified temperature, a buzzer is sounded.
[<] key
[>] key
[<] key
[>] key
[>] key
PlatenHeater 1
PlatenHeater 2
[Enter] key
[Enter] key
[Cancel] key
[Cancel] key
[<] key
[>] key
[<] key
[>] key
[>] key
Platen Heater 1
Platen Heater 2
[Enter] key
[Enter] key
[Cancel] key
[Cancel] key
