4 Parts Replacement VJ-1604　 Maintenance Manual
Rev.-05 4-108
4.8 Replacing Cursor Section
This section describes the procedure to replace the cursor section.
4.8.1 Releasing Head Lock
When head lock is released on the software, the carriage moves to the origin position after the power is turned
off. This section describes the procedure to release head lock with the power turned off.
1. Open the maintenance cover R.
2. Push down the cap on the left side of carriage.
3. Move the carriage to the opposite side to the origin while holding down the cap.
For enabling head lock again, the cap does not need to be pushed down. Move back the carriage to
the position where the carriage is fixed with a sound.

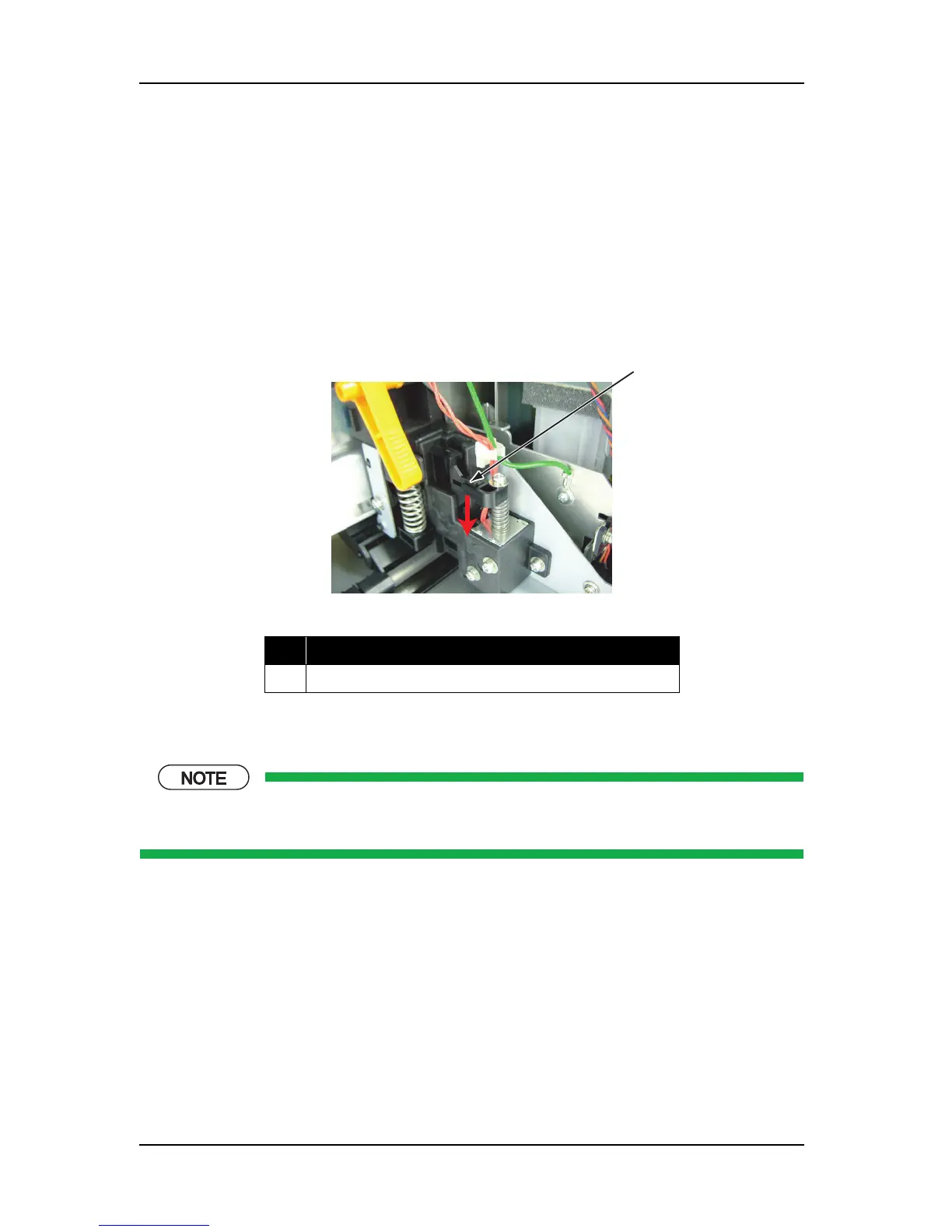

No. Part name
1Cap
