VJ-1604　 Maintenance Manual 4 Parts Replacement
4-107 Rev.-05

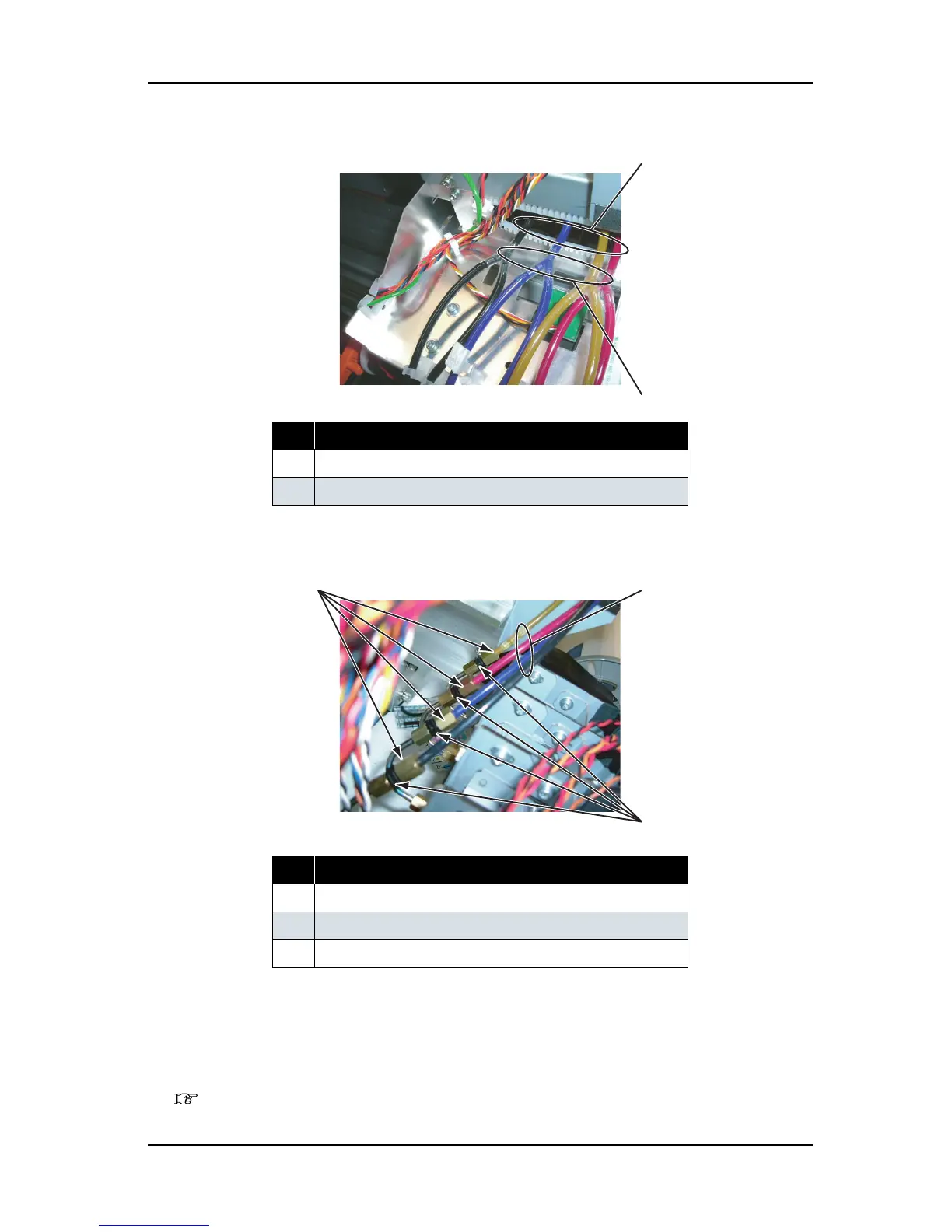

11. Pull out the ink tube from inside the carriage.
12. Loosen the joint screw on the tip of the sub tank.
13. Detach the ink tube from the joint tube.
14. Remove the ink tube.
15. Replace the ink tube.
16. To reassemble the unit, reverse the removal procedure.
17. Charge ink.
"5.6 Ink Charging Menu" p.5-22
No. Part name
1 Three-way joint
2 Ink tube
No. Part name
1 Ink tube
2 Joint tube
3 Joint screw
1
2
1
2
3
