VJ-1604　 Maintenance Manual 7 Adjustment
7-39 Rev.-05

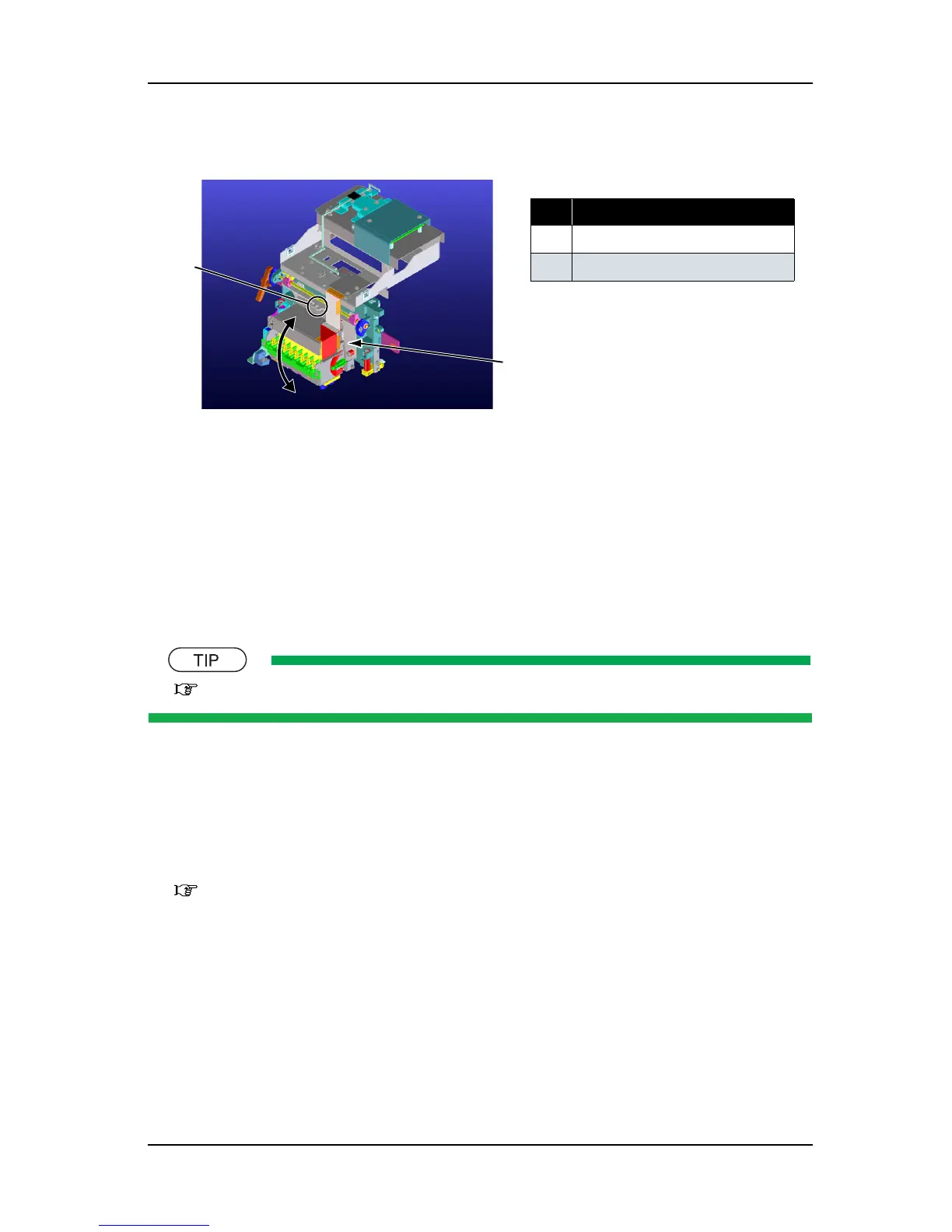

3. Loosen the head base mounting plate screw and move the head base mounting plate up and down (in the
direction shown below) to adjust the head vertical angle.
7.9 PG Height Adjustment
This section describes the procedure to adjust the carriage height (distance between carriage and platen).
7.9.1 Jigs and Tools
The following jigs and tools are required for carriage height adjustment.
• PG height check jig
"8.4 Jigs and Tools" p.8-5
7.9.2 Adjustment Procedure
To make adjustment, follow the steps below.
1. Open the front cover.
2. Unlock the head lock.
"4.8.1 Releasing Head Lock" p.4-106
No. Part name
1 Head base mounting plate
2
Head base mounting plate screw


To Next Page
