7 Adjustment VJ-1604　 Maintenance Manual
Rev.-05 7-40

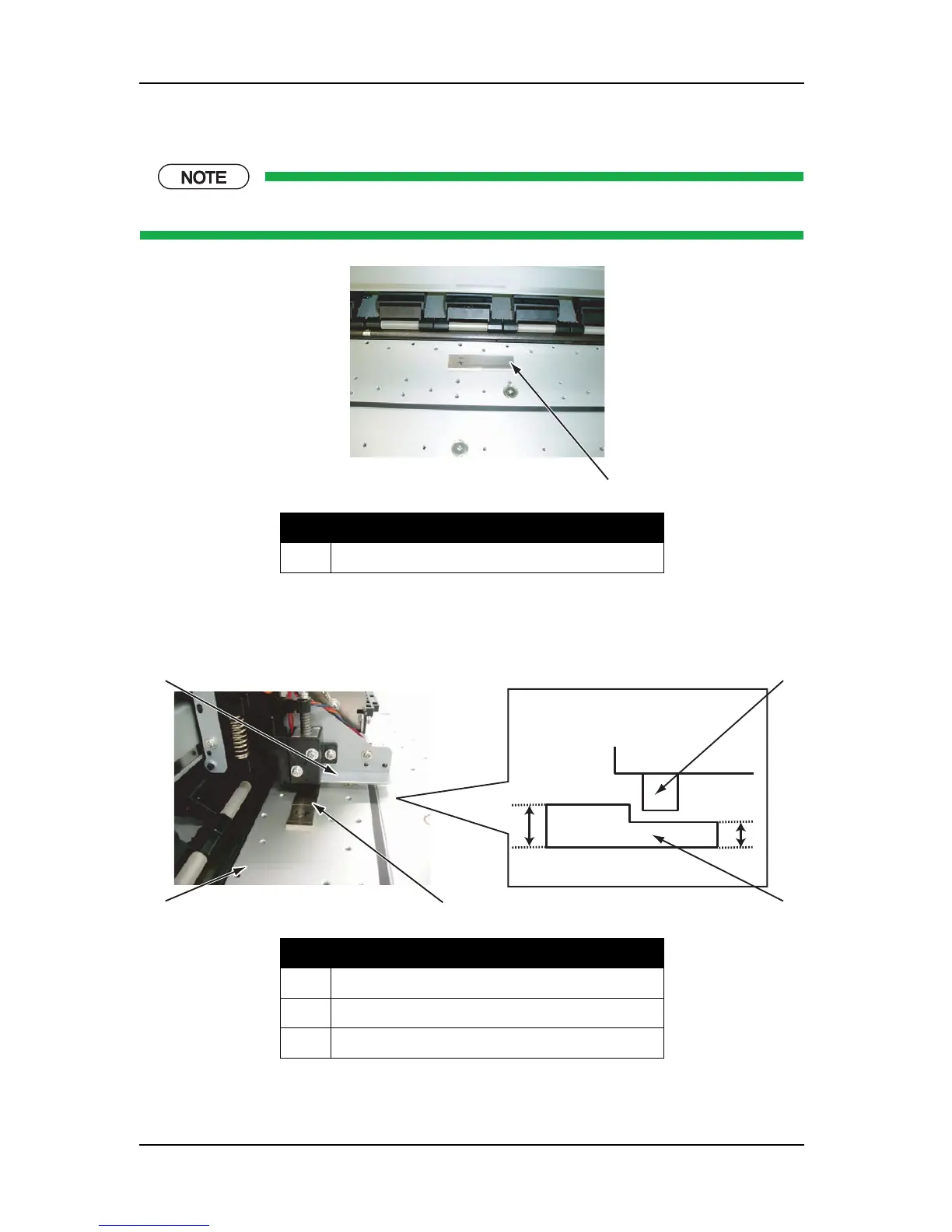

3. Place the PG height check jig on the platen.
Place the PG height check jig where print heads pass over the jig when moving the carriage.
4. Move the carriage from the origin side with the lever “LOW“.
5. Check if the carriage passes over the 1.37 mm part of the PG height check jig, but not over the 1.42 mm
part.
6. Reverse the jig and move the carriage from the opposite side of the jig.
No. Part name
1 PG height check jig
No. Part name
1 PG height check jig
2 Print head
3Platen
1
1
3
Enlarged view
2
1.37mm
1.42mm
L
R
1
2
To Next Page
