4 Parts Replacement VJ-1604 Maintenance Manual
Rev.-05 4-26

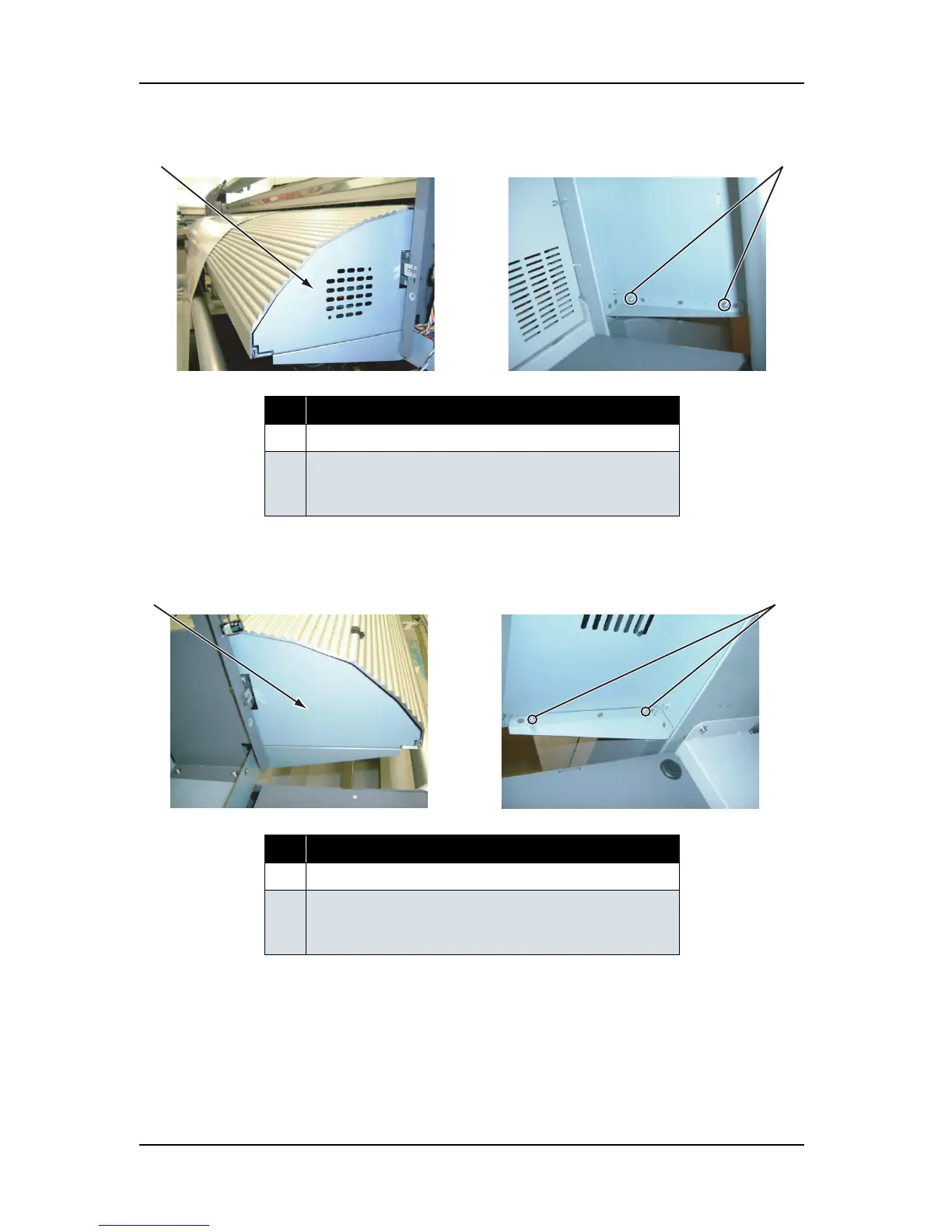

2. Remove the screws (2 pieces) that retain the media guide FR.
3. Remove the
media guide FR.
4. Remove the screws (2 pieces) that retain the media guide FL.
5. Remove the media guide FL.
No. Part name
1Media guide FR
2 Screws that retain the media guide FR
(pan-head screw with spring washer and flat washer M4
×
8)
No. Part name
1Media guide FL
2 Screws that retain the media guide FL
(pan-head screw with spring washer and flat washer M4
×
8)
2
1
Right upper view
Lower view
2
1
Left upper view
Lower view
