VJ-1604 Maintenance Manual 4 Parts Replacement
4-29 Rev.-05

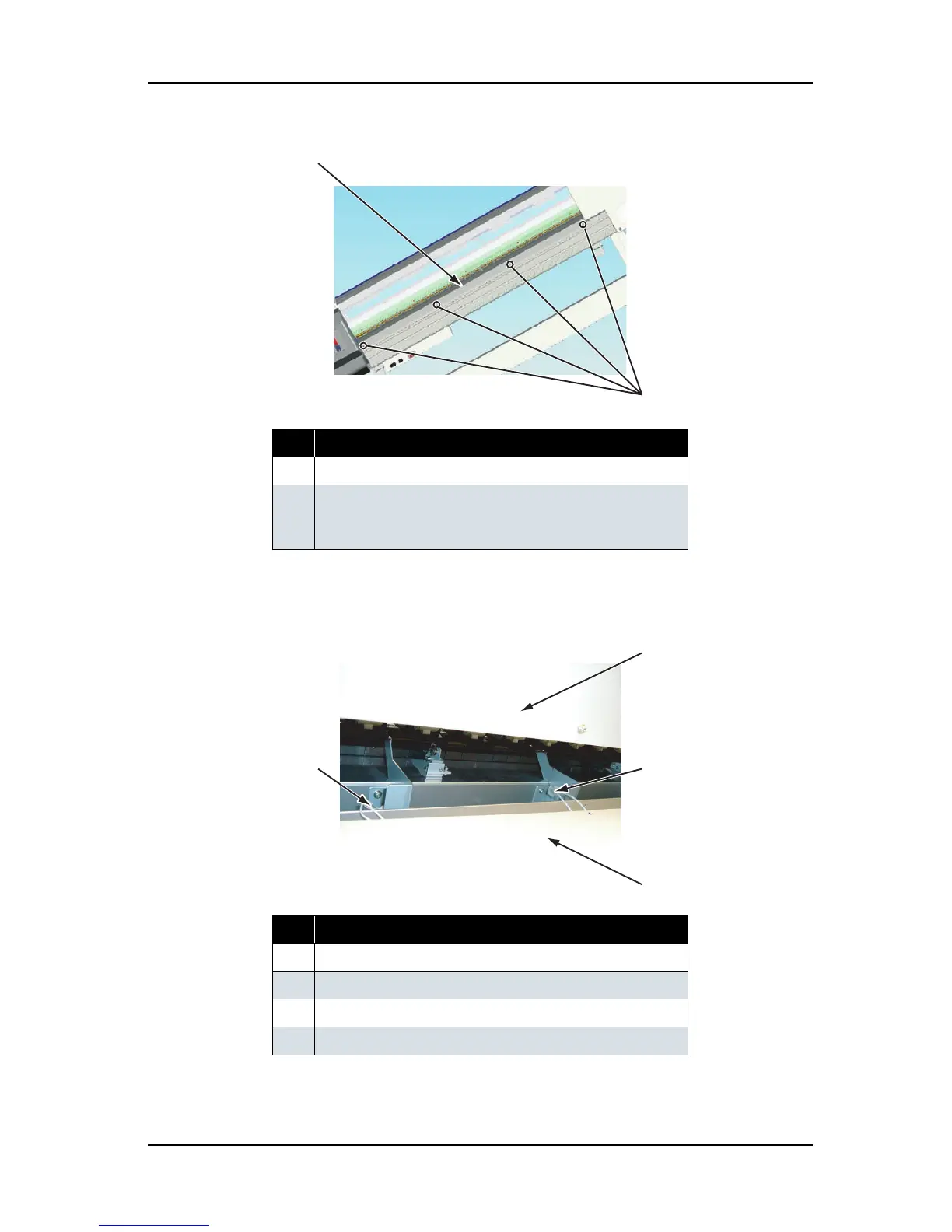

2. Remove the screws (4 pieces) that retain the media guide R (upper).
3. Push backward the
media guide R (upper).
4. Remove the two connectors to the pre-heater and the two connectors to the pre-thermistor that are inside
the media guide R (upper).
5. Remove the media guide R (upper).
6. To reassemble the unit, reverse the removal procedure.
No. Part name
1 Media guide R (upper)
2 Screws that retain the media guide R (upper)
(pan-head screw with spring washer and flat washer M4
×
8)
No. Part name
1Rear top cover
2 Media guide R (upper)
3 Connector to the pre-thermistor
4 Connector to the pre-heater
1
2
2
1
3
4
