4 Parts Replacement VJ-1604 Maintenance Manual
Rev.-05 4-16

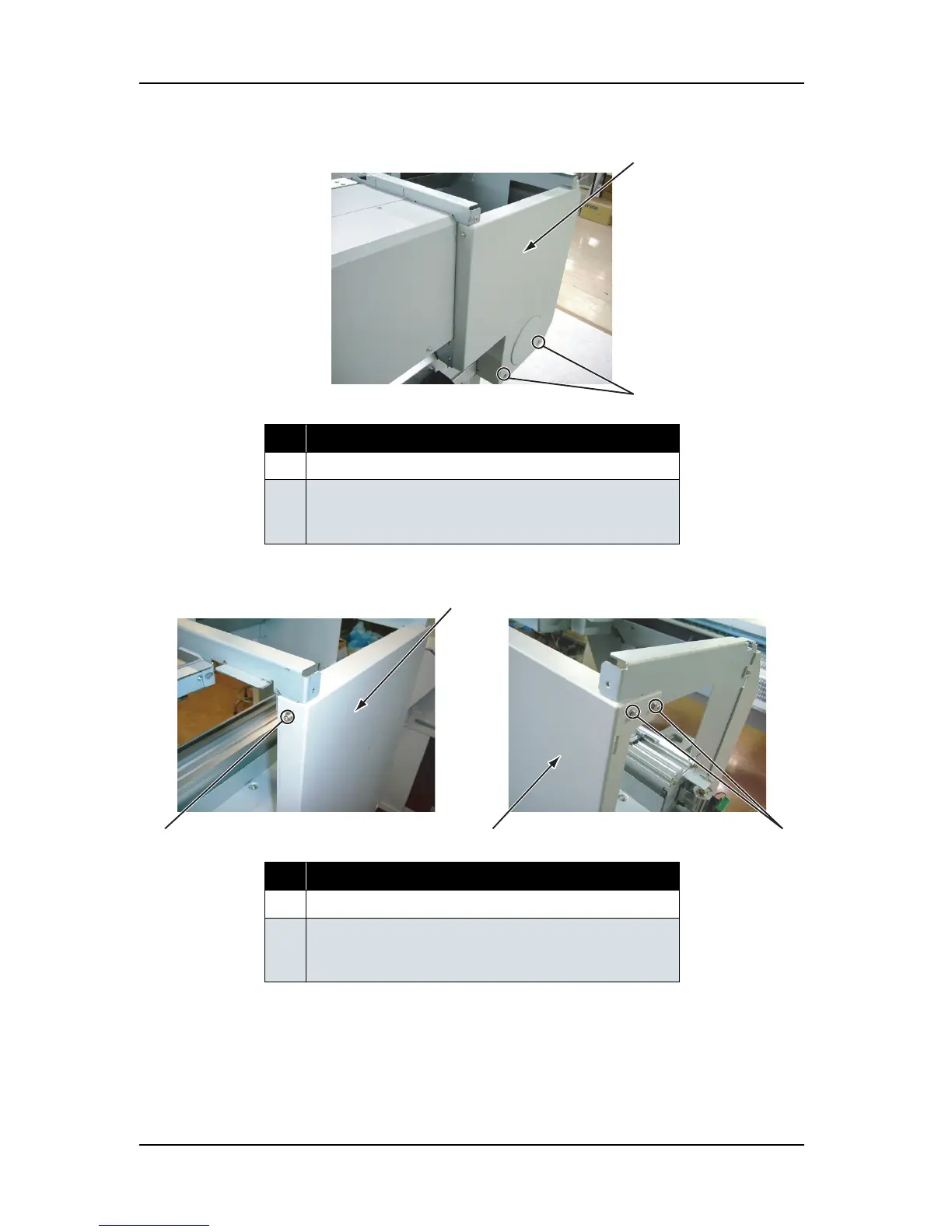

5. Remove the screws (2 pieces) on the lower part of the rear side cover.
6. Remove the screws (3 pieces) on the left and right side of the rear side cover.
No. Part name
1 Rear side cover
2 Screws that retain the rear side cover
(pan-head screw with spring washer and flat washer M4
×
8)
No. Part name
1 Rear side cover
2 Screws that retain the rear side cover
(pan-head screw with spring washer and flat washer M4
×
8)
1
2
1
2
2
1
Rear right view
Rear left view
To Next Page
