4 Parts Replacement VJ-1604 Maintenance Manual
Rev.-05 4-48
3. Remove the screws (2 pieces) that retain the cooling fan (24V) assembly.
4. Replace the cooling fan (24V) assembly.
5. To reassemble the unit, reverse the removal procedure.

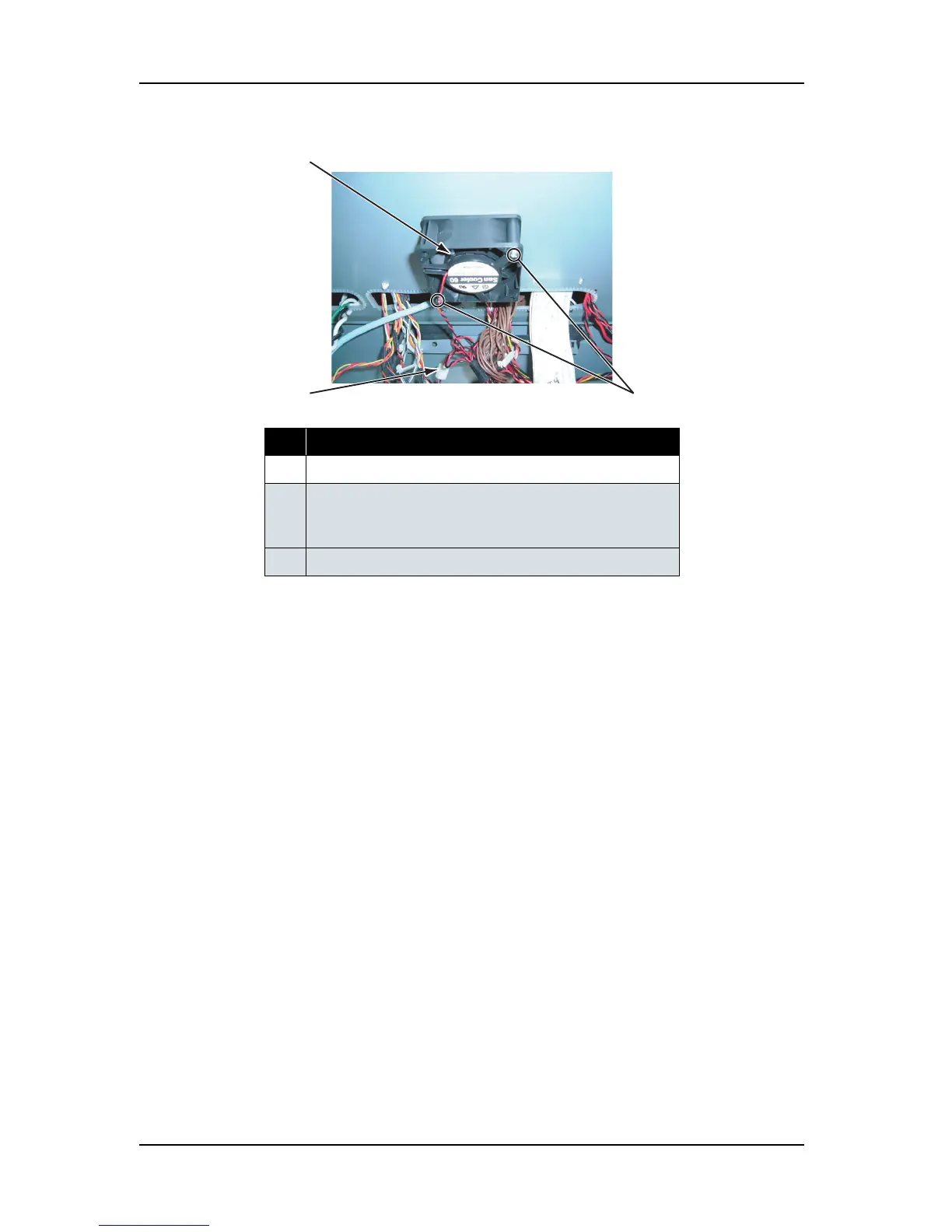

No. Part name
1 Cooling fan (24V) assembly
2 Screws that retain the cooling fan (24V) assembly
(pan-head screw with spring washer and flat washer M3
×
30)
3 Connector to the cooling fan (24V) assembly
2
1
3
Back of the leg holder base
