VJ-1604 Maintenance Manual 4 Parts Replacement
4-91 Rev.-05

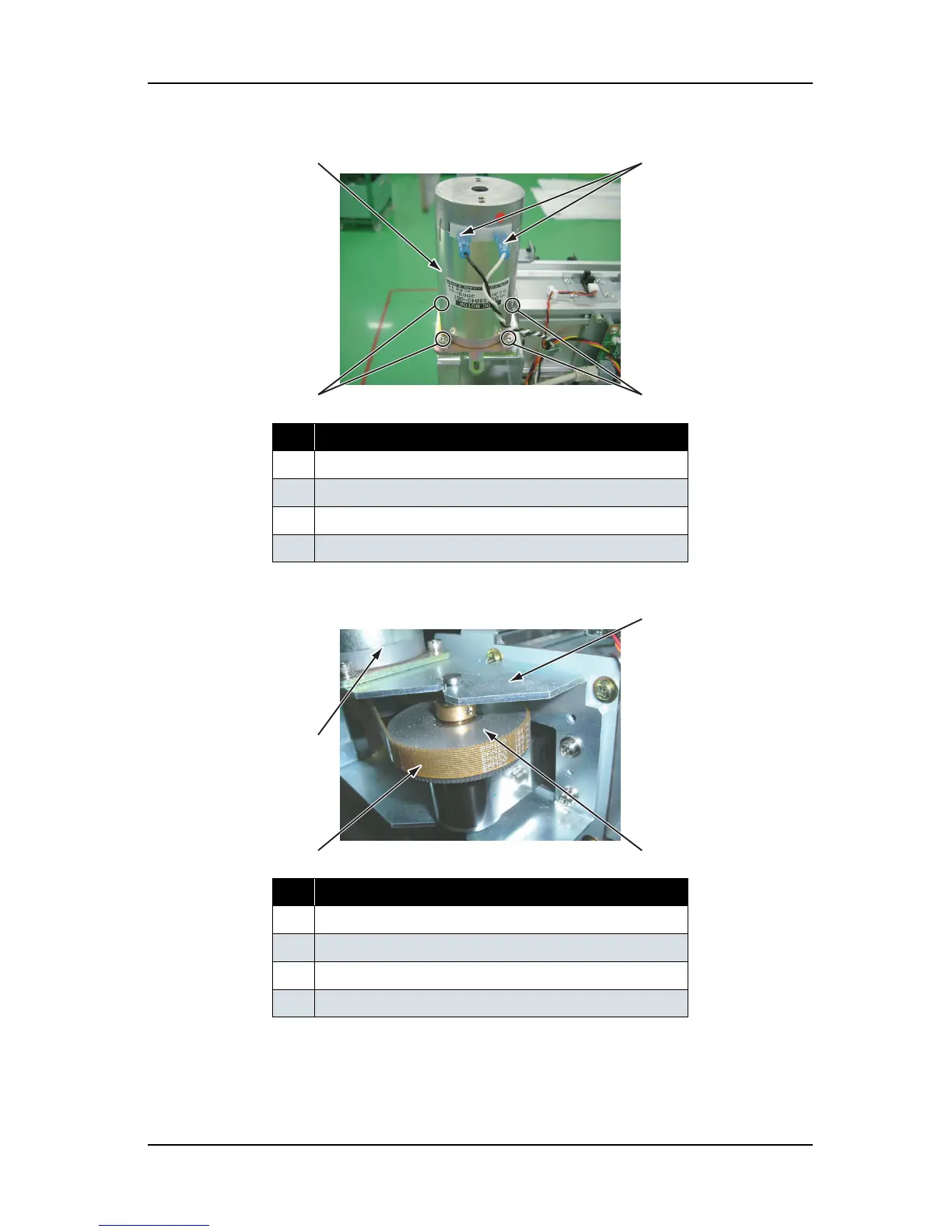

4. Loosen the hexagon socket screws (4 pieces) that retain the CR motor assembly.
5. Confirm that the CR speed reduction belt is loosened.
6. Remove the CR speed reduction belt.
7. Remove the hexagon socket screws (4 pieces) that retain the CR motor assembly.
8. Remove the CR motor assembly.
No. Part name
1 CR motor assembly
2 CR motor spacer
3 Hexagon socket screws (M4
× 6)
4 CR motor cable assembly
No. Part name
1 CR motor assembly
2 CR speed reduction belt
3Y drive base
4 CR drive pulley
1
2
2
3
1
2
3
4
