VJ-1604　 Maintenance Manual 4 Parts Replacement
4-93 Rev.-05

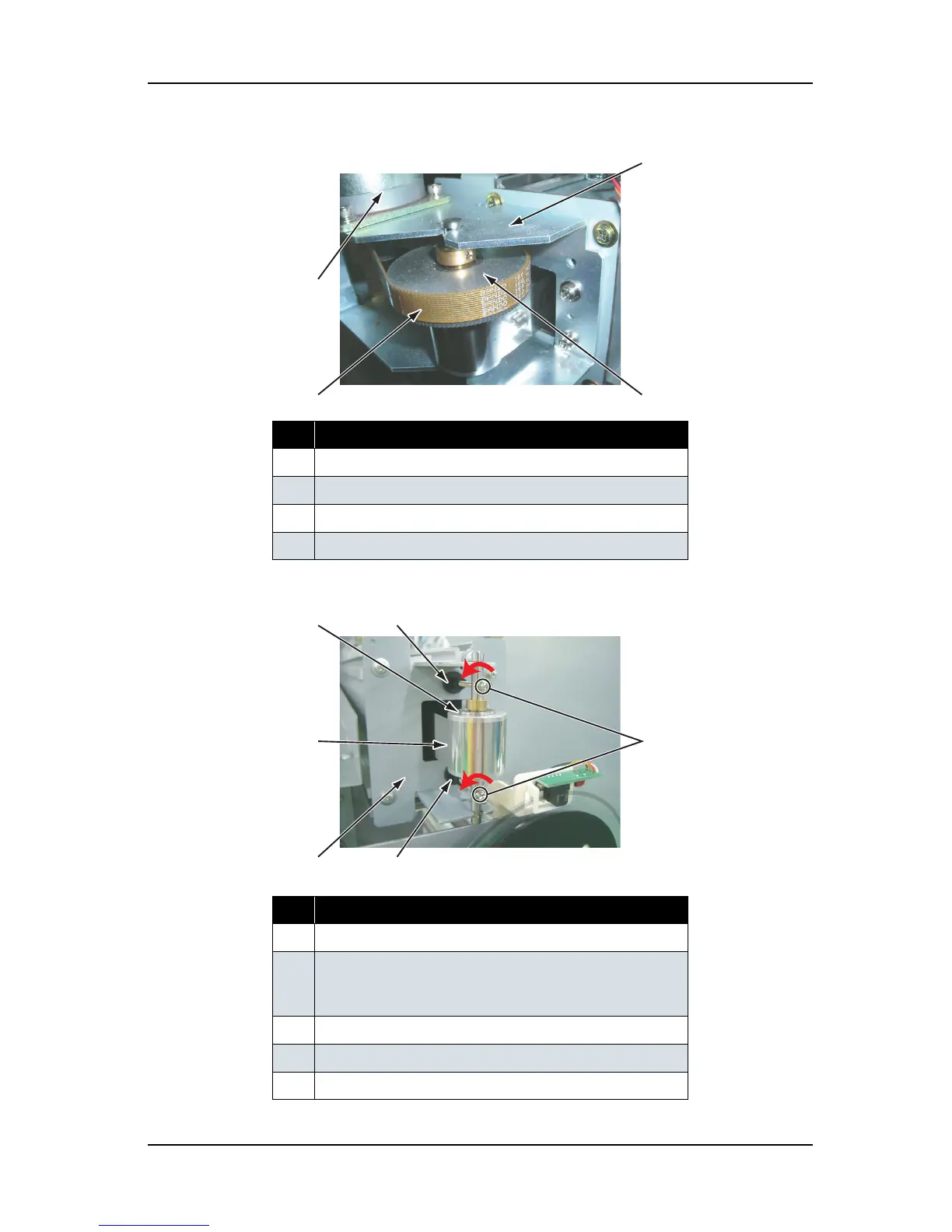

4. Confirm that the CR speed reduction belt is loosened.
5. Loosen the steel belt adjustment screws (2 pieces).
No. Part name
1 CR motor assembly
2 CR speed reduction belt
3Y drive base
4 CR drive pulley
No. Part name
1 CR driven pulley
2 Steel belt adjustment screws
(pan-head screw with spring washer and flat washer M3
×
40)
3 Steel belt
4 Return pulley mounting plate
5 Screw cap
1
2
3
4
2
1
3
4
5
5
To Next Page
