MUTOH ValueJet 1604 User Manual

7 Adjustment VJ-1604 Maintenance Manual
Rev.-05 7-36

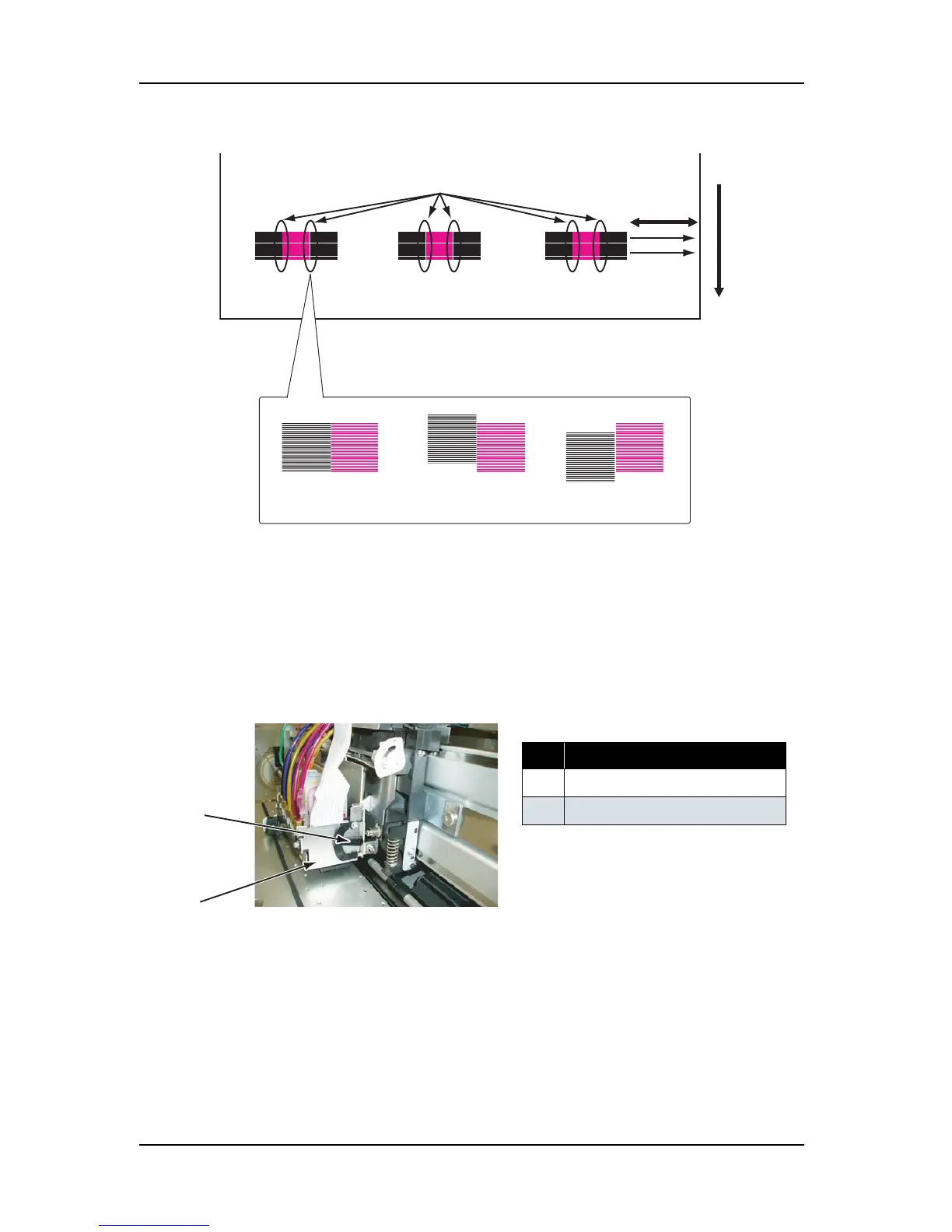

2. Make adjustment based on the printed adjustment patterns.
• A: Check the slant at this point.
• B: Media feed direction
•C: OK
• D: Move the head adjusting cam upward.
• E: Move the head adjusting cam downward.
3. Move the head adjusting cam lever to adjust head slant.
No. Part name
1
Head adjusting cam
2
Head mounting plate
B
A
C
E
D
20mm
1
2
