VJ-1604 Maintenance Manual 4 Parts Replacement
4-13 Rev.-05

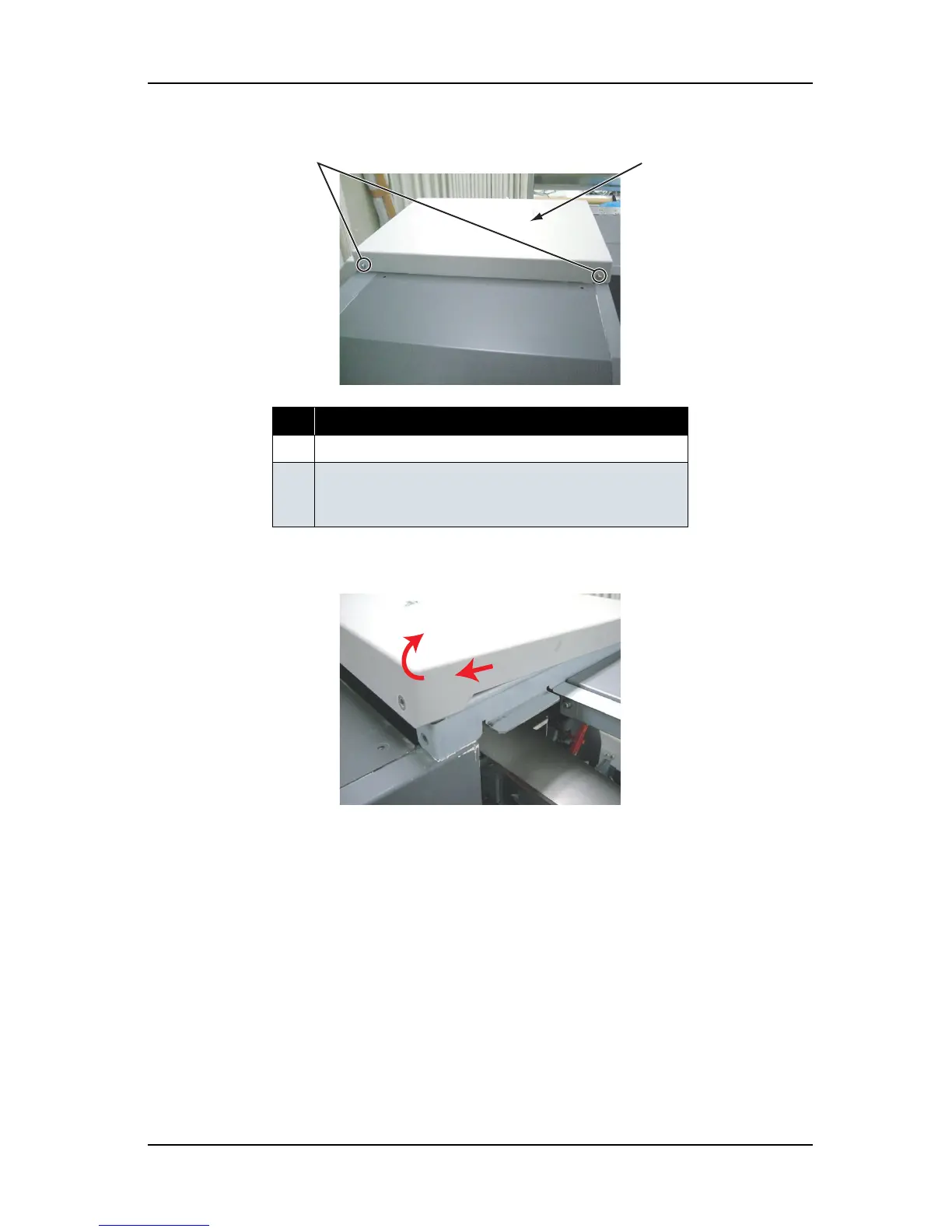

2. Remove the screws (2 pieces) that retain the side top cover R.
3. Remove the side top cover R to the direction shown in the picture below.
4. To reassemble the unit, reverse the removal procedure.
No. Part name
1Side top cover R
2 Screws that retain the side top cover R
(pan-head screw with spring washer and flat washer M4
×
8)
2
1
