VJ-1604　 Maintenance Manual 4 Parts Replacement
4-39 Rev.-05
5. Remove the damper cover L.
6. Remove the flange bushing.
7. Replace the front cover gear.
8. Replace the damper gear (sintered).
9. To reassemble the unit, reverse the removal procedure.

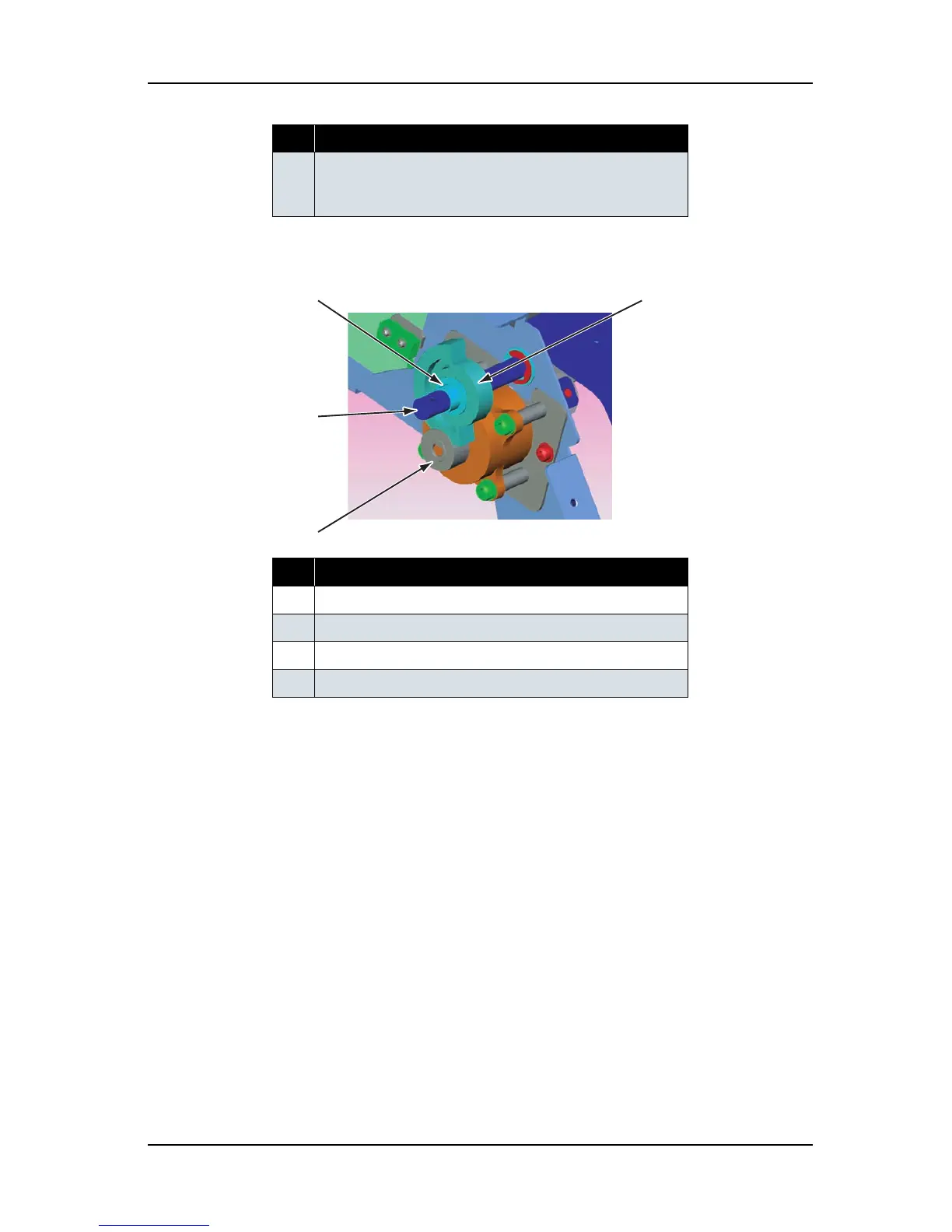

2 Screws that retain the damper cover L
(pan-head screw with spring washer and flat washer M4
×
8)
No. Part name
1 Flange bushing
2 Front cover gear
3 Front cover axis
4 Damper gear (sintered)
No. Part name
1
3
2
4
