Omron R88D-1SN ECT Series User Manual

3 Specifications
3 - 20
AC Servomotors/Servo Drives 1S-series with Built-in EtherCAT® Communications User’s Manual (I586)

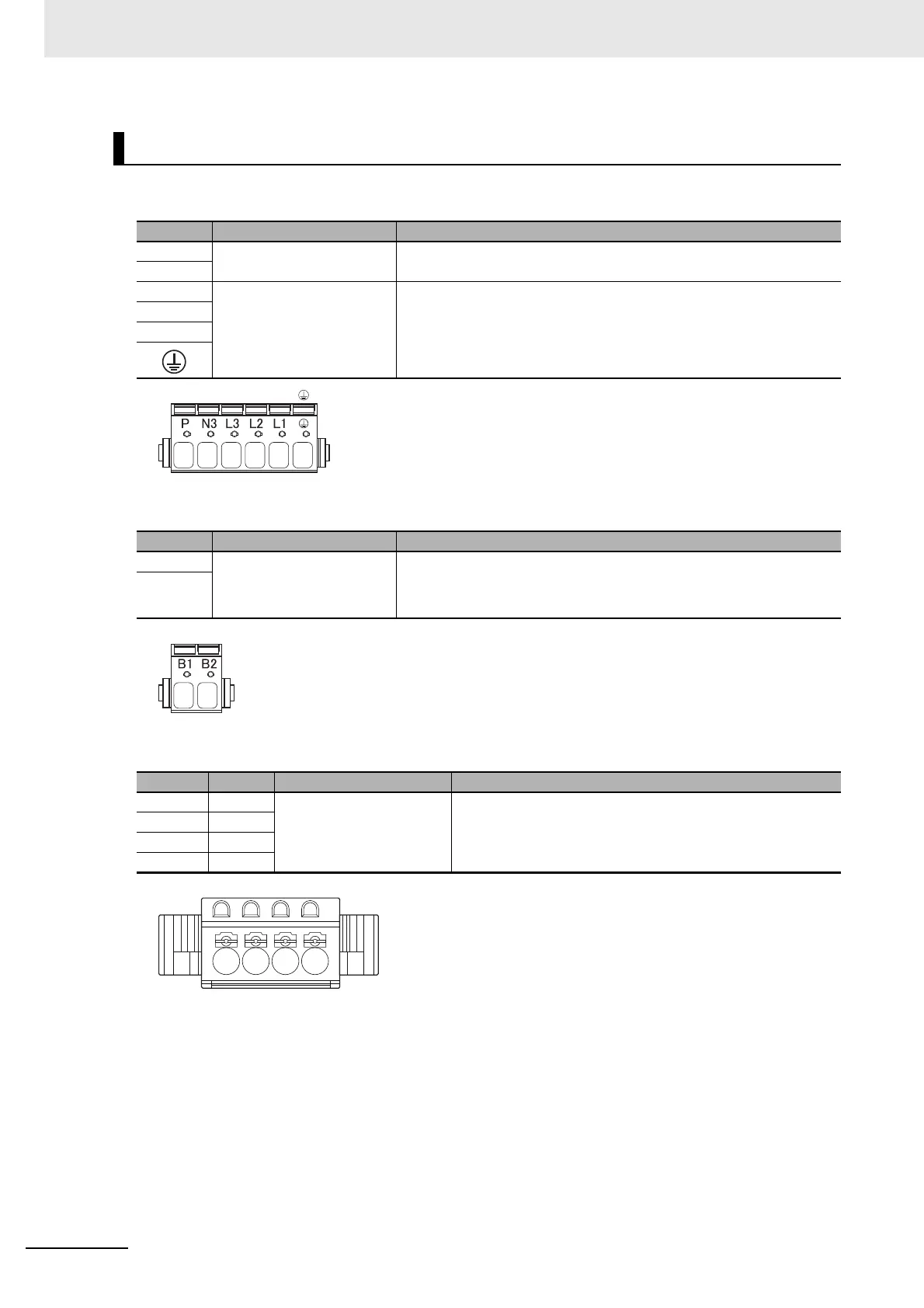

 Main Circuit Connector A (CNA) Specifications
 Main Circuit Connector B (CNB) Specifications
 Control Circuit Connector (CND) Specifications
R88D-1SN150F-ECT
Symbol Name Specifications
P ---- Do not connect.
N3
L3 Main circuit power supply
input
3-phase 380 to 480 VAC (3230 to 504 VAC) 50/60 Hz (47.5 to 63 Hz)
L2
L1
Symbol Name Specifications
B1 External Regeneration
Resistor connection termi-
nals
Connect the External Regeneration Resistor between B1 and B2.
This Servo Drive does NOT install Internal Regeneration Resistor.
B2
Pin No. Symbol Name Specifications
1 +24V Control circuit power sup-
ply input
24VDC (21.6 to 26.4 V)
Measured current value: 1,200 mA
2 +24V
30 V
40 V
PN3L3L2L1
B1 B2
+24V +24V 0V 0V

Omron R88D-1SN ECT Series Specifications

General

Feedback	Incremental encoder, Absolute encoder
Position Control	Yes
Speed Control	Yes
Torque Control	Yes
Communication Interface	EtherCAT
Power Supply Voltage	200 to 240 VAC
Output Power	0.1 to 1.5 kW
Input Voltage Range	170 to 264 VAC
Control Method	Sine-wave PWM control
Main Circuit Power Supply	200-240 VAC
Applicable Motor Capacity	0.1 to 1.5 kW
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheating, Encoder Error
Ambient Operating Temperature	0 to 55°C
Vibration Resistance	4.9 m/s² (10 to 55 Hz)
Shock Resistance	98 m/s2
Weight	Varies by model
