Omron R88D-1SN ECT Series User Manual

3 Specifications
3 - 34
AC Servomotors/Servo Drives 1S-series with Built-in EtherCAT® Communications User’s Manual (I586)
Note When you do not use the STO function via safety input signals, short-circuit pins 22 and 23, 24 and 26, 3
and 5, and 6 and 7.
When you use the STO function via safety input signals, remove the attached short-circuit wires and do not
connect anything to pins 7 and 22.
*1. When you use an output signal to drive a relay directly, always insert a diode as shown in the above figure.
Use a high-speed diode.

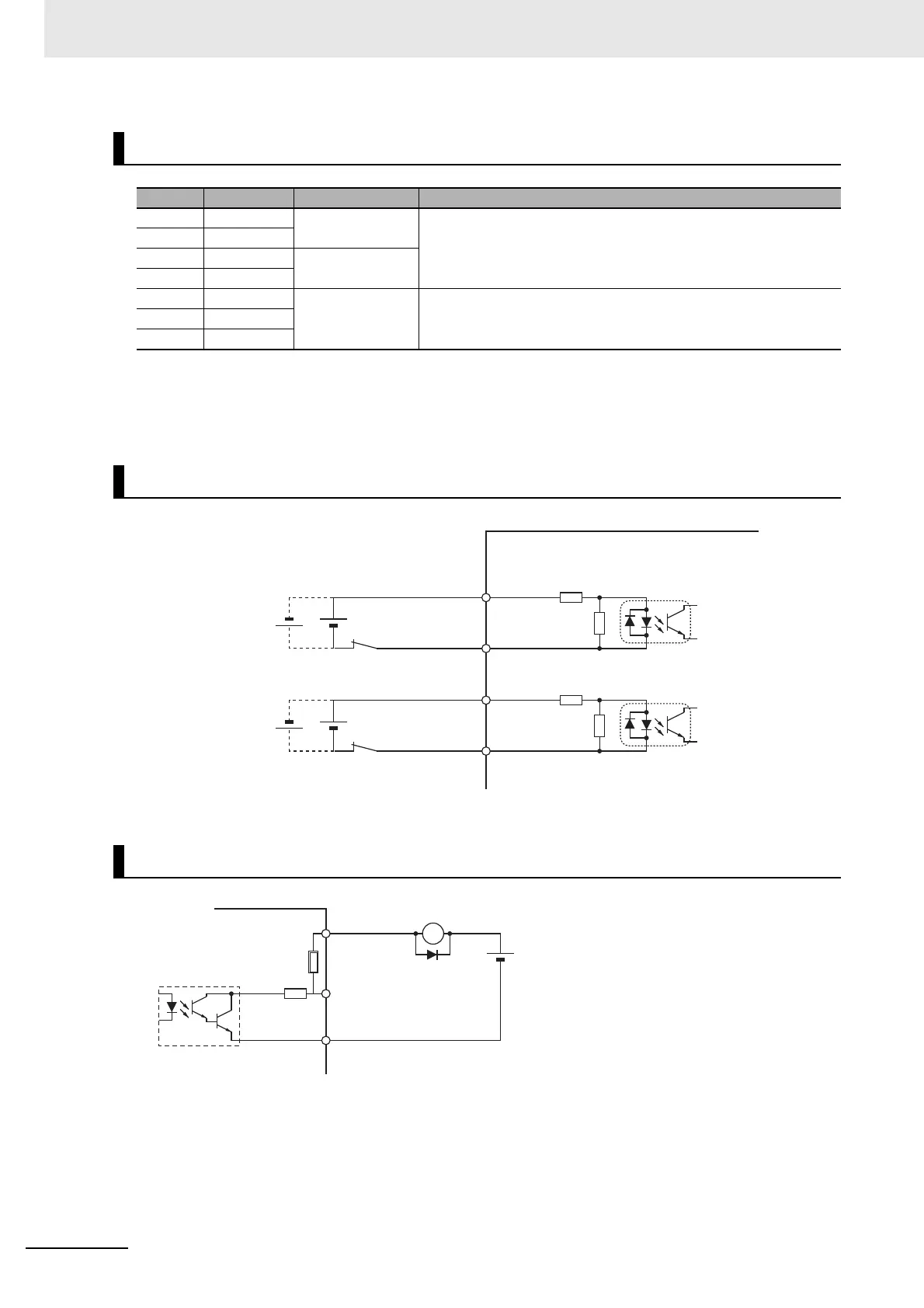

Safety I/O Signal Table
Pin No. Symbol Name Function and interface
3 and 23 SF1+ Safety input 1 Inputs 1 and 2 for operating the STO function, which are two inde-
pendent circuits. This input turns OFF the power transistor drive
signals in the Servo Drive to cut off the current output to the motor.
4 and 24 SF1-
5 and 25 SF2+ Safety input 2
6 and 26 SF2-
1 EDM+ P EDM Output A monitor signal is output to detect a safety function failure.
2EDM+
21 EDM-
Safety Input Circuits
EDM Output Circuit
4.3 kΩ
430 Ω
24 VDC±5%
4.3 kΩ
430 Ω
SF1+ 3, 23
SF1- 4, 24
SF2+ 5, 25
SF2- 6, 26
Photocoupler input
External power
supply
Photocoupler input
Servo Drive
Signal level
ON level: 20.8 V or more
OFF level: 5 V or less
X
21 EDM-
2 EDM+
1 EDM+P
Di
2.2 Ω
Servo Drive
External power supply
12 to 24 VDC
Maximum service voltage: 30 VDC
Maximum output current: 50 mA
Leakage current: 1 mA or less
Residual voltage:
Di: Surge voltage prevention diode
*1
Short-circuit
protection element
2.0 V or less (EDM+P)
1.7 V or less (EDM+)

Omron R88D-1SN ECT Series Specifications

General

Feedback	Incremental encoder, Absolute encoder
Position Control	Yes
Speed Control	Yes
Torque Control	Yes
Communication Interface	EtherCAT
Power Supply Voltage	200 to 240 VAC
Output Power	0.1 to 1.5 kW
Input Voltage Range	170 to 264 VAC
Control Method	Sine-wave PWM control
Main Circuit Power Supply	200-240 VAC
Applicable Motor Capacity	0.1 to 1.5 kW
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheating, Encoder Error
Ambient Operating Temperature	0 to 55°C
Vibration Resistance	4.9 m/s² (10 to 55 Hz)
Shock Resistance	98 m/s2
Weight	Varies by model
