Omron R88D-1SN ECT Series User Manual

4 - 3
4 Configuration and Wiring
AC Servomotors/Servo Drives 1S-series with Built-in EtherCAT® Communications User’s Manual (I586)
4-1 Installation Conditions
4
4-1-1 Servo Drive Installation Conditions

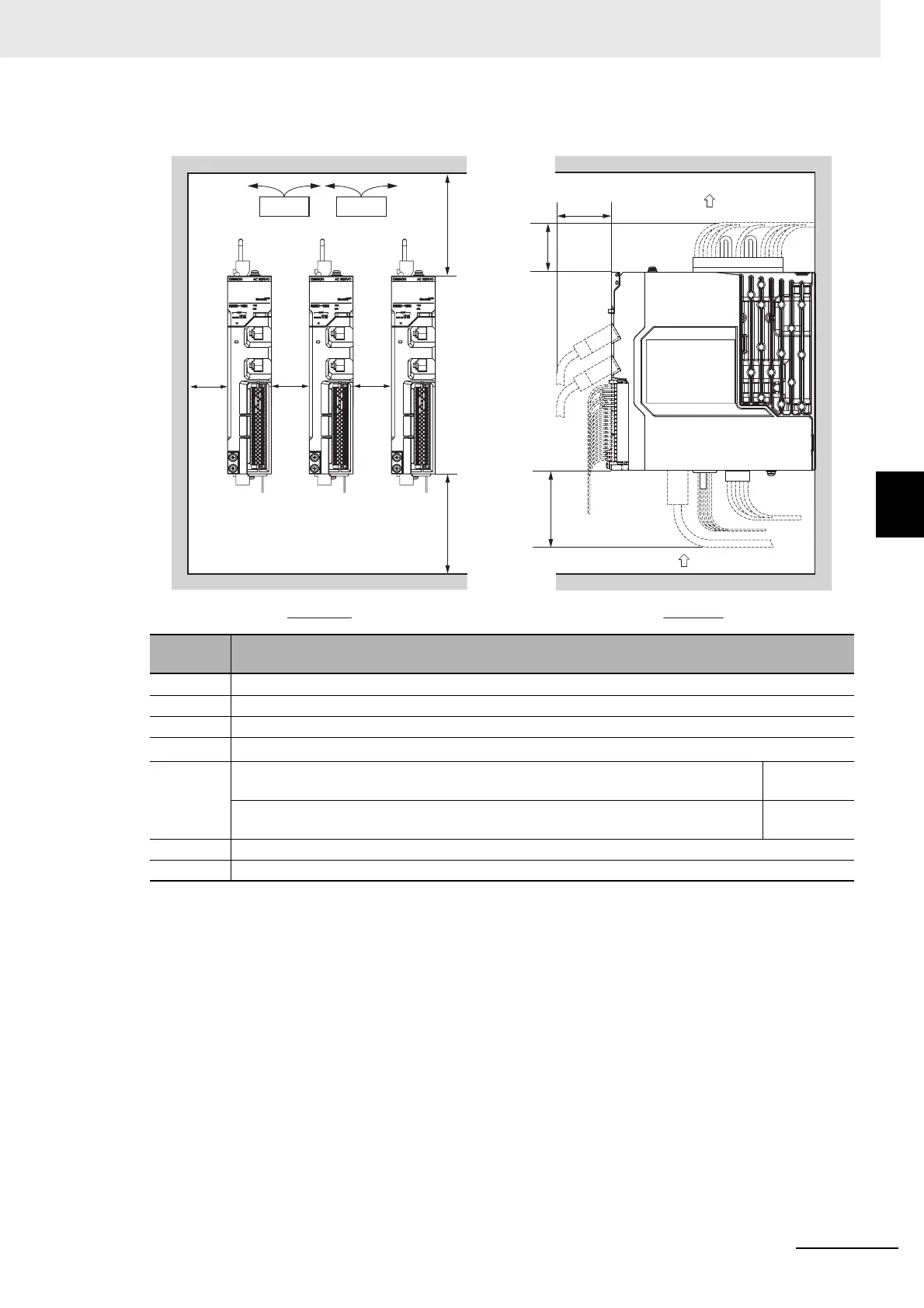

 Side-by-side Installation
*1. Limit the operating ambient temperature of Servo Drive from 0 to 45°C when the distance is less than 10 mm.
• Install the Servo Drive on the vertical metal surface.
• To provide electrical conduction, remove any paint from the surface on which you install the Servo
Drives. Also, it is recommended that you apply conductive plating if you make the mounting bracket
by yourself.
• The recommended tightening torque for installing the Servo Drive is 1.5 N·m. Make sure that the
threaded portion has the sufficient strength to withstand the recommended torque.
Dimen-
sion
Distance
T 100 mm min.
B 100 mm min.
S1 40 mm min.
S2
10 mm min.
*1
C1 R88D-1SN01L-ECT/-1SN02L-ECT/-1SN04L-ECT/-1SN01H-ECT/
-1SN02H-ECT/-1SN04H-ECT/-1SN08H-ECT/-1SN10H-ECT
45 mm min.
R88D-1SN15H-ECT/-1SN20H-ECT/-1SN30H-ECT/-1SN06F-ECT/
-1SN10F-ECT/-1SN15F-ECT/-1SN20F-ECT/-1SN30F-ECT
60 mm min.
C
2 50 mm min.
C3 70 mm min.
Front view Side view
S2
S2
T
B
S
1
Fan Fan
C1
C2
C3
Air outlet
Air intake

Omron R88D-1SN ECT Series Specifications

General

Feedback	Incremental encoder, Absolute encoder
Position Control	Yes
Speed Control	Yes
Torque Control	Yes
Communication Interface	EtherCAT
Power Supply Voltage	200 to 240 VAC
Output Power	0.1 to 1.5 kW
Input Voltage Range	170 to 264 VAC
Control Method	Sine-wave PWM control
Main Circuit Power Supply	200-240 VAC
Applicable Motor Capacity	0.1 to 1.5 kW
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheating, Encoder Error
Ambient Operating Temperature	0 to 55°C
Vibration Resistance	4.9 m/s² (10 to 55 Hz)
Shock Resistance	98 m/s2
Weight	Varies by model
