8 Safety Function
8 - 8
AC Servomotors/Servo Drives 1S-series with Built-in EtherCAT® Communications User’s Manual (I586)

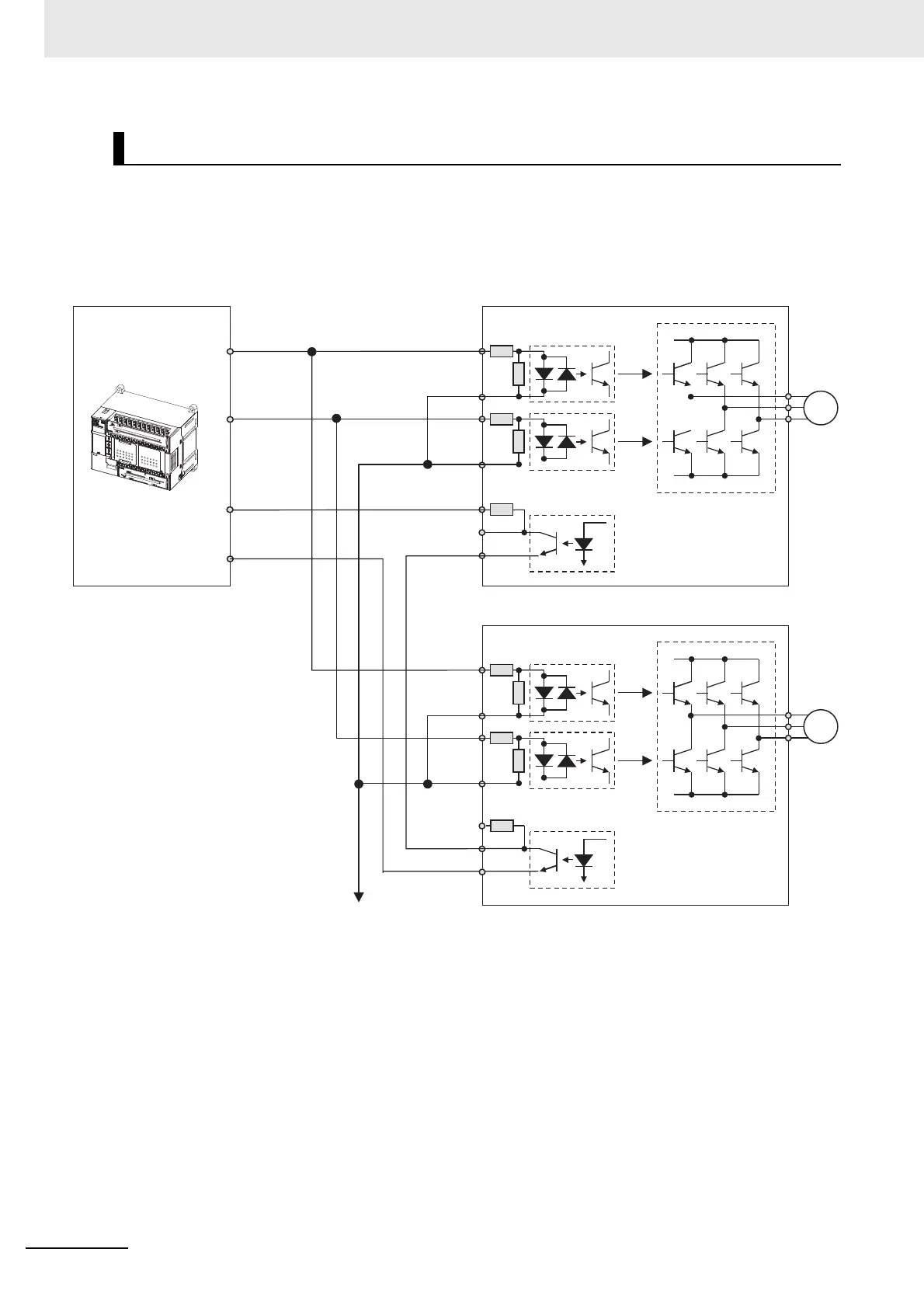

This example shows how to connect multiple Servo Drives.
Connect the EDM signal to the terminal EDM + P on the first Unit, and to the terminal EDM + on a Unit
from the second as shown in the following diagram when you use multiple Servo Drives.
When a G9SP-series safety controller is used, you can connect up to four 1S-series Servo Drives.
Connection with a Safety Controller (Multiple Servo Drives)
M
M
EDM
output
SF1 +
SF2 +
SF2 -
EDM +
EDM
-
SF1 -
Safety
Controller
Test output
Safety input
EDM input
G9SP Series
Safety output
(source)
Safety output 1
Safety output 2
SF1 +
SF2 +
SF2 -
SF1 -
0 V
Servo Drive
Servo Drive
EDM +
P
EDM
output
EDM +
EDM
-
EDM +
P
