Physio (ECG) Receptacles
For physio support, your system includes receptacles for both high-level and
low-level ECG signals. In addition, there are receptacles for Analog Output
(TTL-compatible trigger), Pulse/Aux1 (for physio channel 1), and Phono/Aux 2
(for physio channel 2). The ECG receptacles are on the front panel of the system
below the control module.

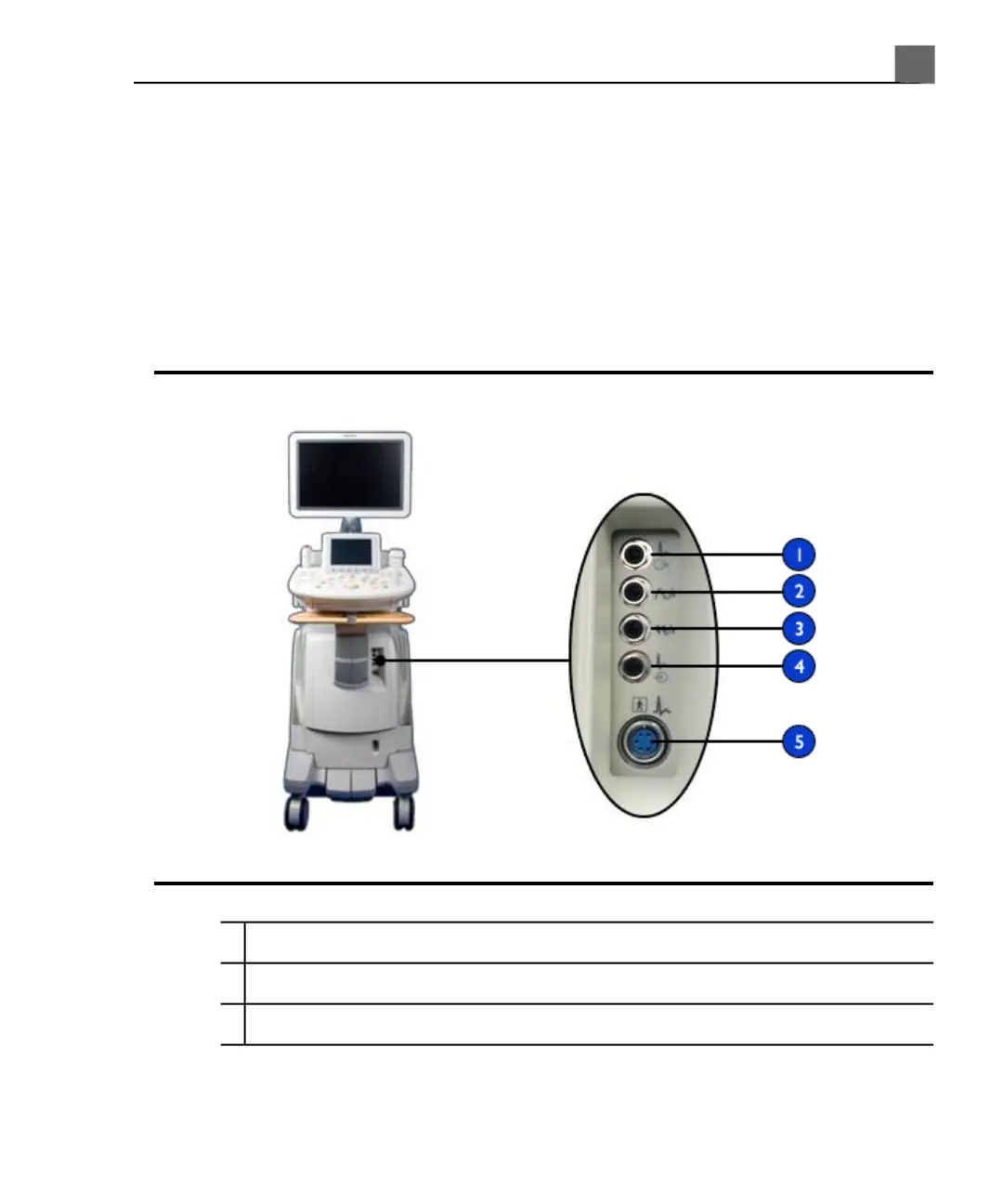

ECG and Physio Receptacles
Analog output1
Pulse/Aux 1 input2
Phono/Aux 2 input3
