Control Panel

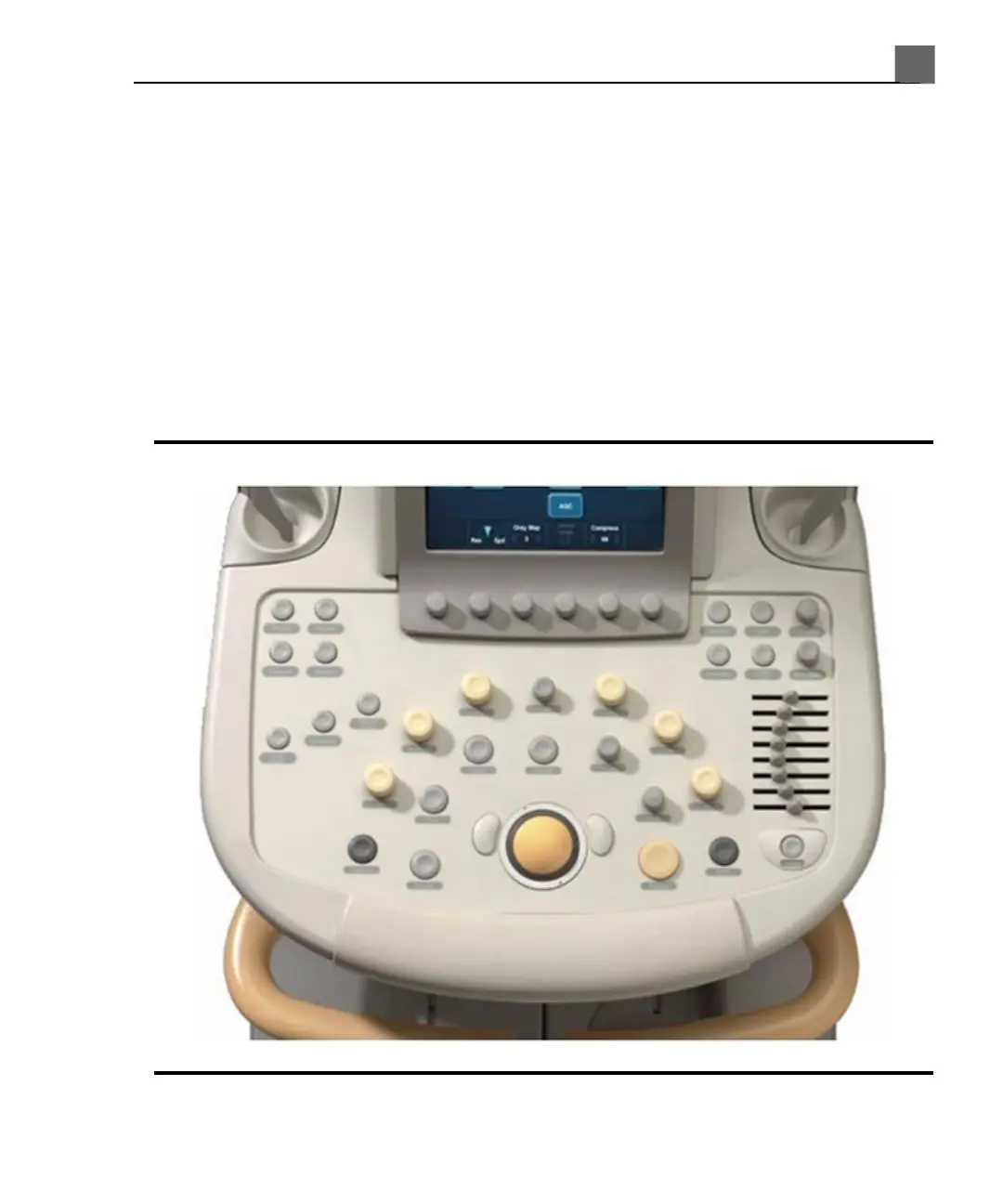

The control panel, located on the control module, contains the main imaging
controls. These controls include knobs, buttons, TGC slide controls, and a
trackball. Knobs that are indented on top act as both buttons and knobs. For
example, when you press the M-Mode control, M-mode imaging begins; when
you turn the M-Mode control, the 2D/M-mode gain changes.
A touch screen at the top of the control panel contains controls that assume
different functions, depending on the system operating mode.
