Two-Pedal System for Brakes and Steering Locks

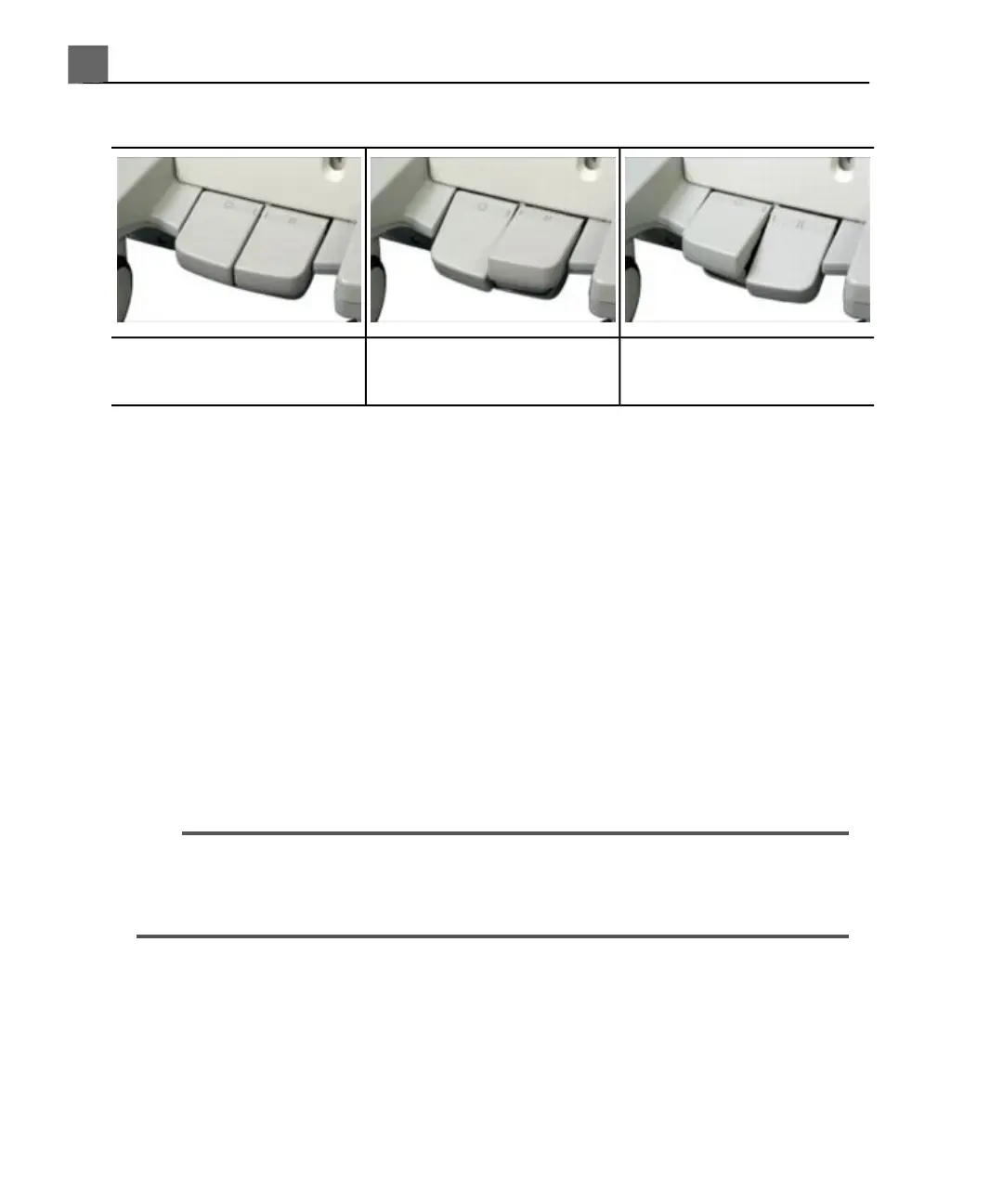

Steering lock ONBrake ONBrake and steering lock
OFF
Monitor Adjustments
The monitor is mounted on an articulated arm that permits it to be positioned
vertically and in an arc from side to side. The monitor arm can also be locked
for moving the system. You can adjust the brightness of the monitor image to
compensate for ambient light. You can also change the default brightness setting
for the monitor.
Positioning the Monitor
You can adjust the position of the monitor to suit different operating positions
and operator heights.
CAUTION
To avoid damaging the flat-panel display in the monitor, do not operate it in
direct sunlight. Also, do not operate or store the system where the ambient
temperature exceeds 61°C (141.8°F).
1. Release the monitor from its locked transport position.
2. Grasp the monitor firmly and:
• Tilt the monitor up and down
• Swivel the monitor left and right
