EASI Electrode Placement
ECG and Arrhythmia Alarm Overview
The ECG and arrhythmia alarms available depend on which measurements are switched on, and the
arrhythmia option enabled for your monitor.
• Cardiotach alarms are available when HR is on and the active alarm source is ECG, but
Arrhythmia is switched off
• Basic arrhythmia alarms are available when Arrhythmia is switched on
• Enhanced arrhythmia alarms are available when Arrhythmia is switched on and the Enhanced
Arrhythmia option has been enabled for your monitor

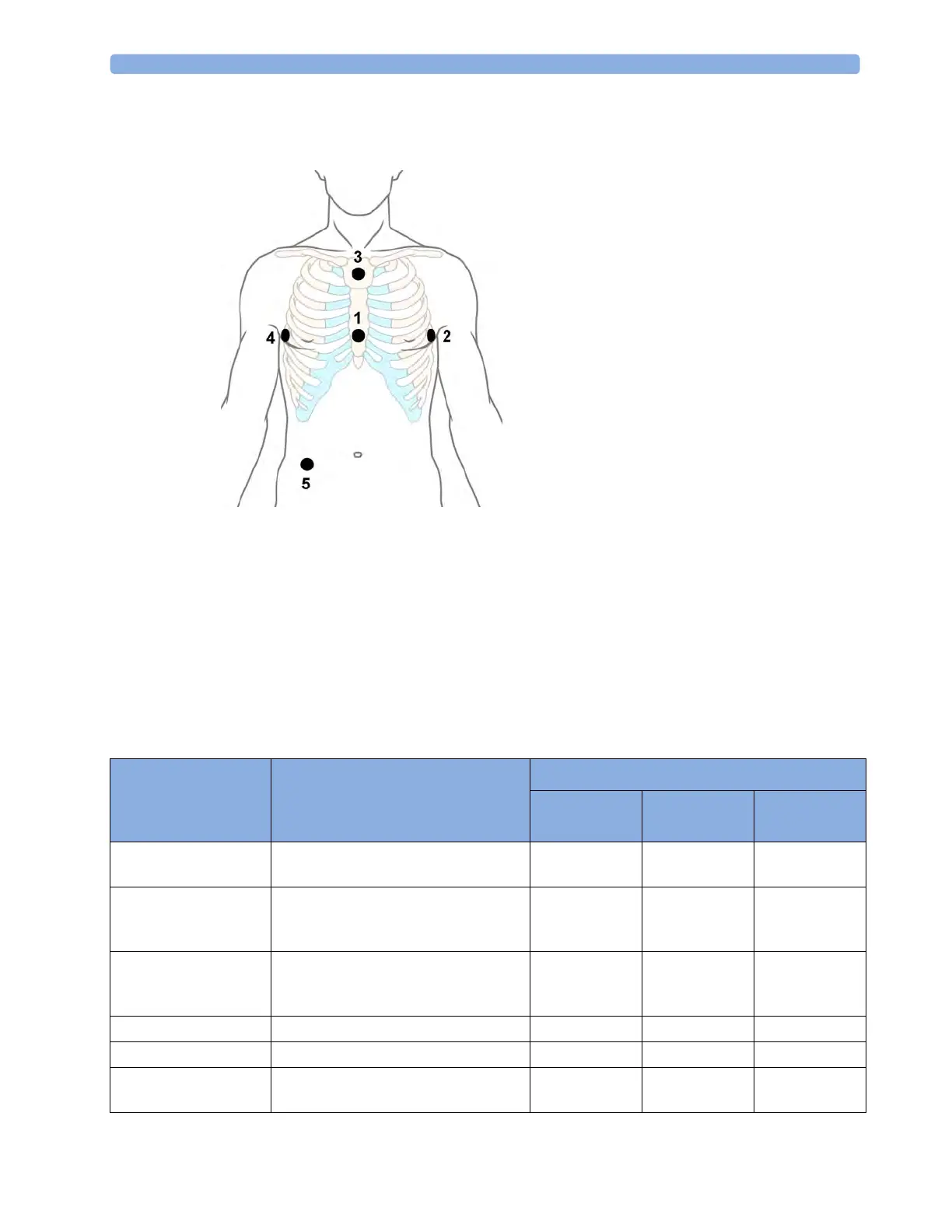

1 E (V) - on the lower sternum at the level of
the fifth intercostal space
2 A (LL) - on the left midaxillary line at the
same level as the E electrode
3 S (LA) - on the upper sternum
4 I (RA) - on the right midaxillary line at the
same level as the E electrode
5 N - reference electrode - can be anywhere,
usually below the sixth rib on the right hip
Alarm Description Arrhythmia Configuration
Arrhythmia
Off
Basic
Arrhythmia
Enhanced
Arrhythmia
*** Asystole No beat detected for a period > the
asystole threshold (2.5 to 4.0 seconds)
xxx
*** Vent Fib/Tach Fibrillatory wave (sinusoidal wave
between 2 - 10 Hz) for 4 consecutive
seconds
xxx
*** VTach A run of consecutive beats labeled as V
with run length ≥ the V-Tach Run limit
and ventricular HR > V-Tach HR limit
xx
*** Extreme Tachy Heart Rate > the Extreme Tachy limit x x x
*** Extreme Brady Heart Rate < the Extreme Brady limit x x x
** HR High Heart rate > the high HR limit x x
(see note)
x
(see note)
