1 Basic Operation
16
4
Alarm lamps (see “MP2 Controls and Indicators” on page 16)
5 Built-in carrying handle
6 Battery eject button
7 Keys (see “MP2 Controls and Indicators” on page 16)
8 Measurement connectors (see “MP2 Patient Connectors, Right Side” on page 17)
9 Battery

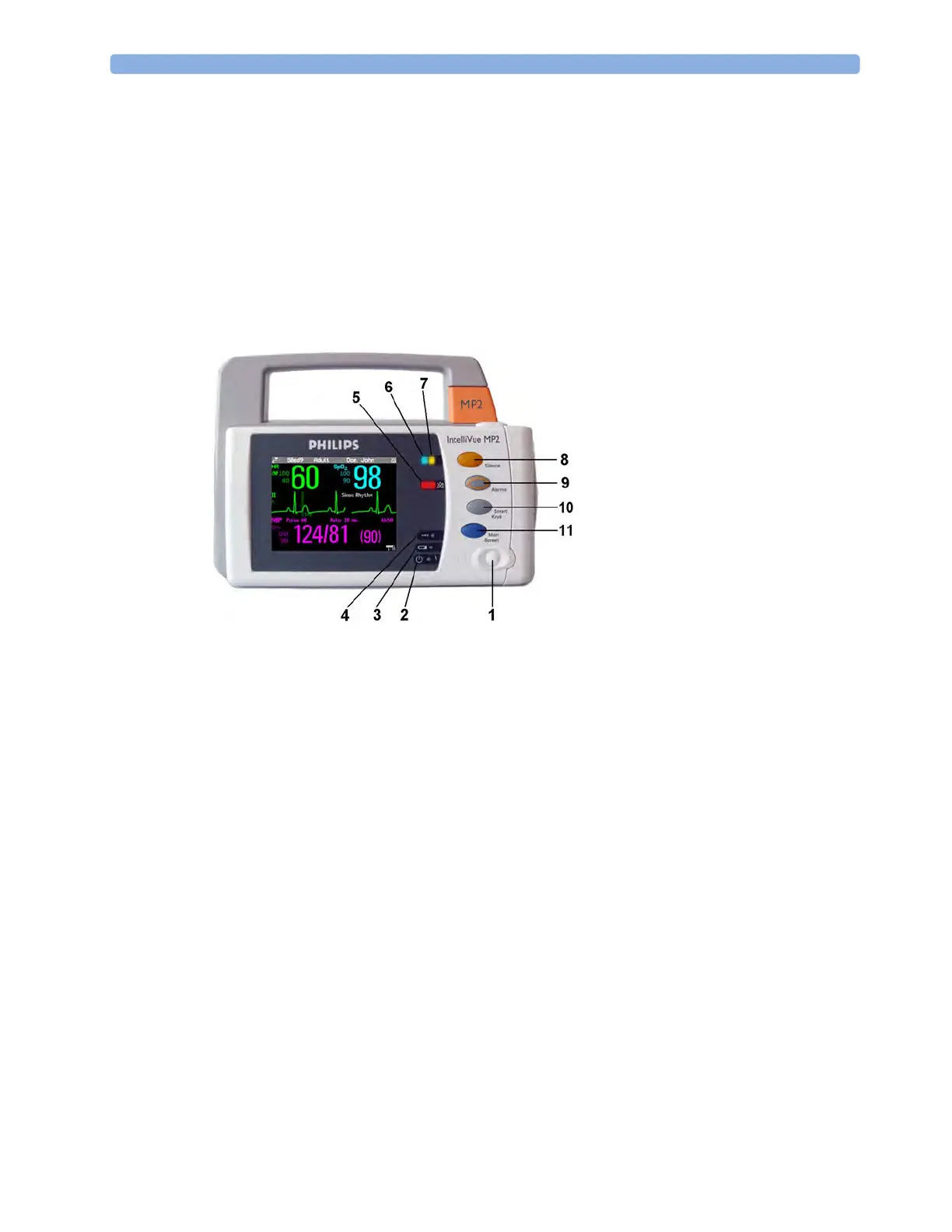

MP2 Controls and Indicators
1 On/Standby switch
2 On/Standby LED. Green when monitor is on. Red indicates an error.
3 Battery status LED. Yellow when charging. Flashing red when battery is empty, or a battery
malfunction is detected.
4 External power LED. Green when monitor is powered from an external power source.
5 Alarms off indicator. When alarms are suspended, the lamp is red, and the Alarms Off message
appears on the screen.
6 Active INOP alarm lamp in light blue. Stays lit until active INOP is acknowledged.
7 Active alarm lamp. Red or yellow, depending on alarm level. Stays lit until active alarm is
acknowledged.
8 Silence key
9 Alarms key: turns alarms On/Off, or pauses them
10 SmartKeys key: brings up SmartKeys on the screen
11 Main Screen key: closes all open menus/windows and returns to the main screen, or selects
current screen.
