Philips MP2 - M3014 A, M3015 A, and M3015 B Capnography MMS Extensions

1 Basic Operation
19
M3014A, M3015A, and M3015B Capnography MMS Extensions
The optional M3014A Capnography extension adds mainstream capnography or sidestream
capnography, and optionally one pressure plus either a pressure or a temperature to the monitor.
The optional M3015A Microstream CO
2
extension adds microstream capnography and optionally
either pressure or temperature to the monitor. The optional M3015B Microstream CO
2
extension
adds microstream capnography, two pressures and a temperature to the monitor.

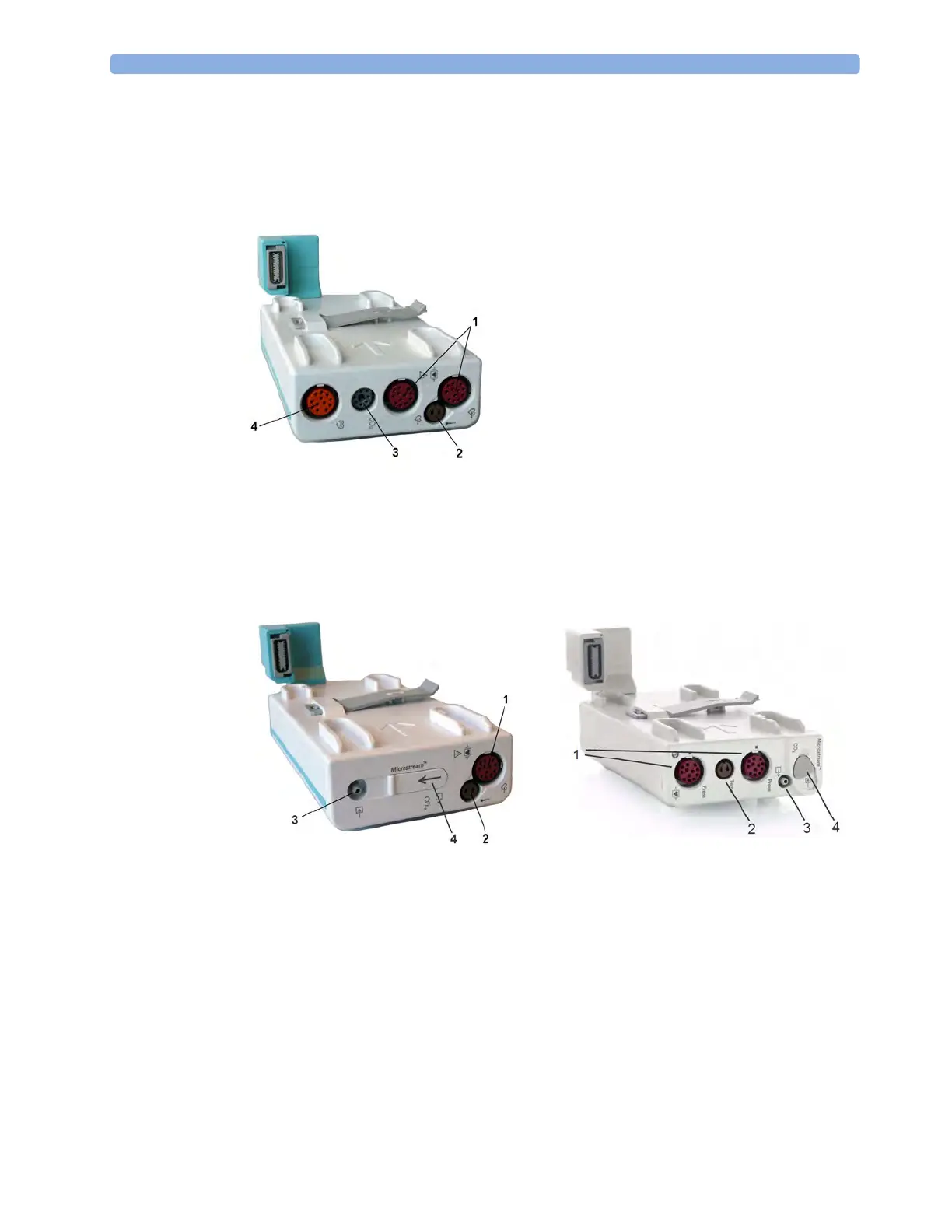

M3014A
1 Pressure connectors (red)
2 Temperature connector (brown)
3 Mainstream/sidestream connector CO
2
4 Cardiac Output connector
M3015A M3015B
1 Pressure connectors (red) - M3015A optional
2 Temperature connector (brown) - M3015A optional
3 Gas sample outlet
4 Microstream connector CO
2
and Inlet
