Philips MP2 - MP2 Patient Connectors, Right Side; MP2 Left Side; Extending Measurements

1 Basic Operation
17

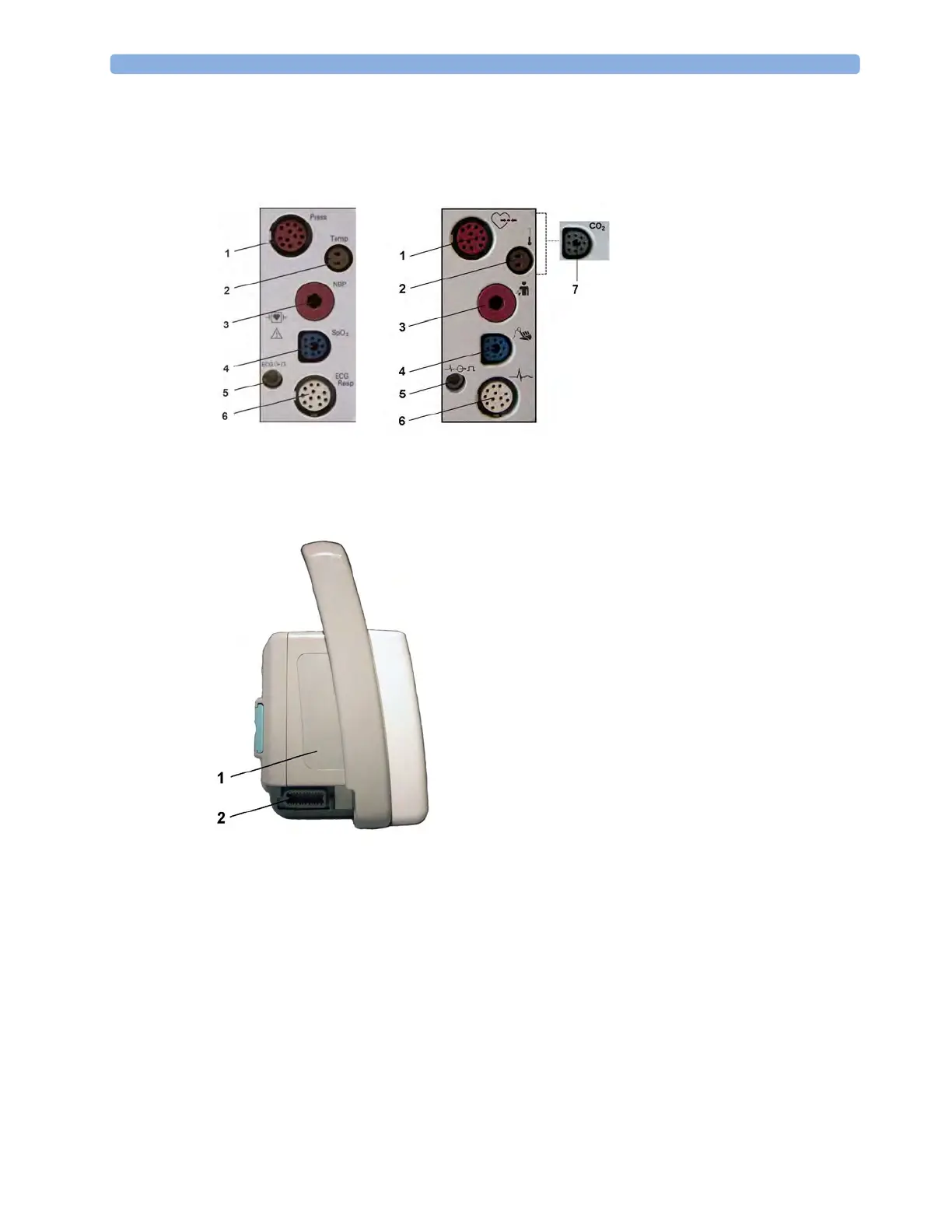

MP2 Patient Connectors, Right Side
MP2 Left Side
Extending Measurements
Your monitor is compatible with Philips measurement extensions for use with other IntelliVue patient
monitoring devices. These allow you to add specific measurements to those already integrated into
your monitor. These measurement extensions are referred to as MMS extensions. During patient
transport, the monitor with the connected MMS extension can be powered by the Battery Extension
(see “Using the Battery Extension” on page 20).
English version International version
1 Pressure (option)
2 Temperature (option)
3 Noninvasive blood pressure
4 SpO
2
5 ECG sync pulse output (See
“Monitor Performance
Specifications” on page 293 for
specifications)
6 ECG/Respiration
7 CO
2
(option)
1 Loudspeaker (do not cover with labels or stickers as this
will reduce the loudspeaker volume).
2 MSL Connector. Connects to the external power supply via
the MSL cable for AC mains operation, battery charging,
and communication with a network.
