6 ECG, Arrhythmia, ST and QT Monitoring

138

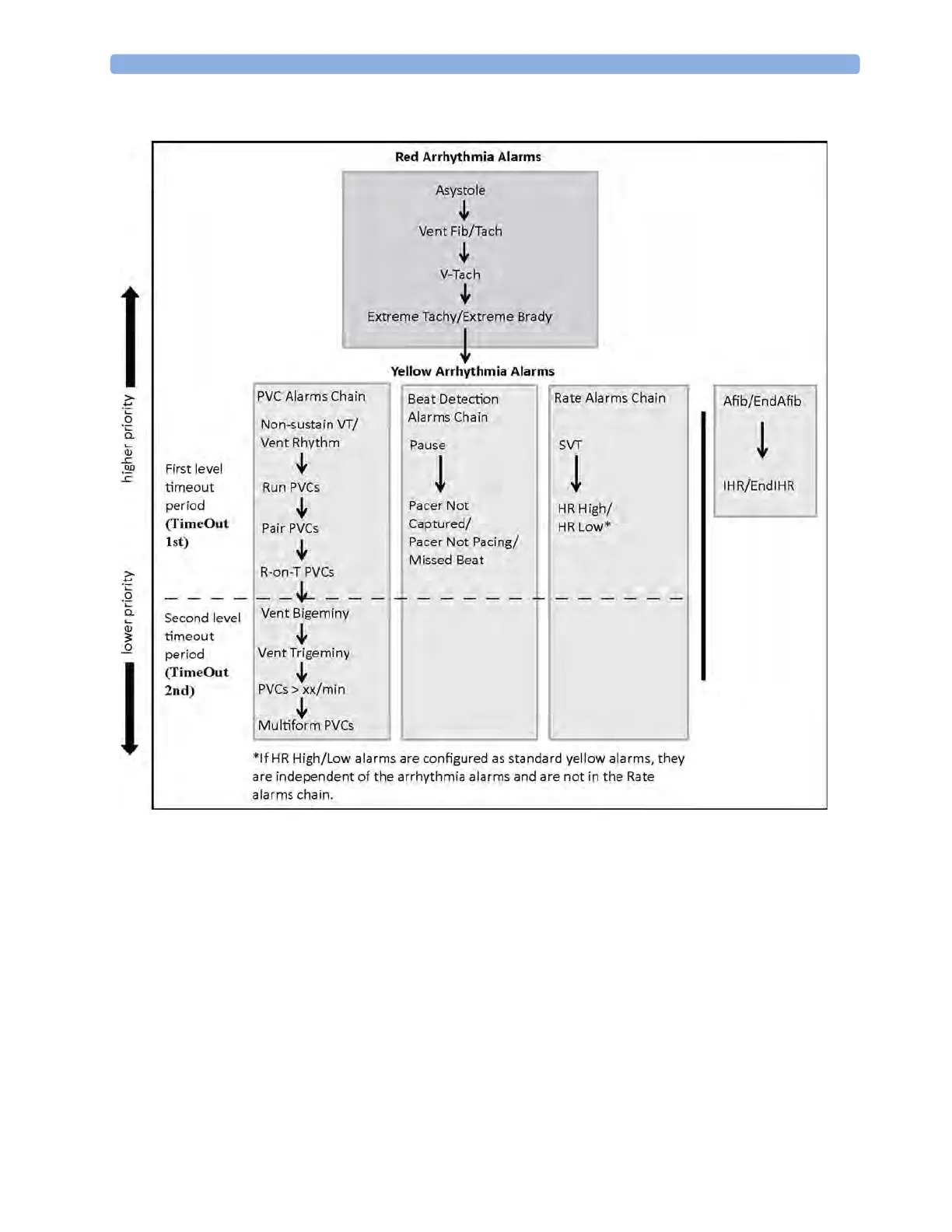

Examples of Alarm Chaining Logic

– If there is an active Vent Bigeminy alarm, a PVCs > xx/min will not be triggered because it is

lower on the same chain. However, a high HR alarm will become active because it is on a

different chain.

– Higher priority alarms supersede previous alarms. For example, if a Vent Trigeminy alarm is

active and a Pair PVCs occurs, the Pair alarm will be activated.
