those in the lower gap, but inverted. To either side of the outermost transmit channels,
lower and upper adjacent channels can be defined as in common ACLR measurement
setups.

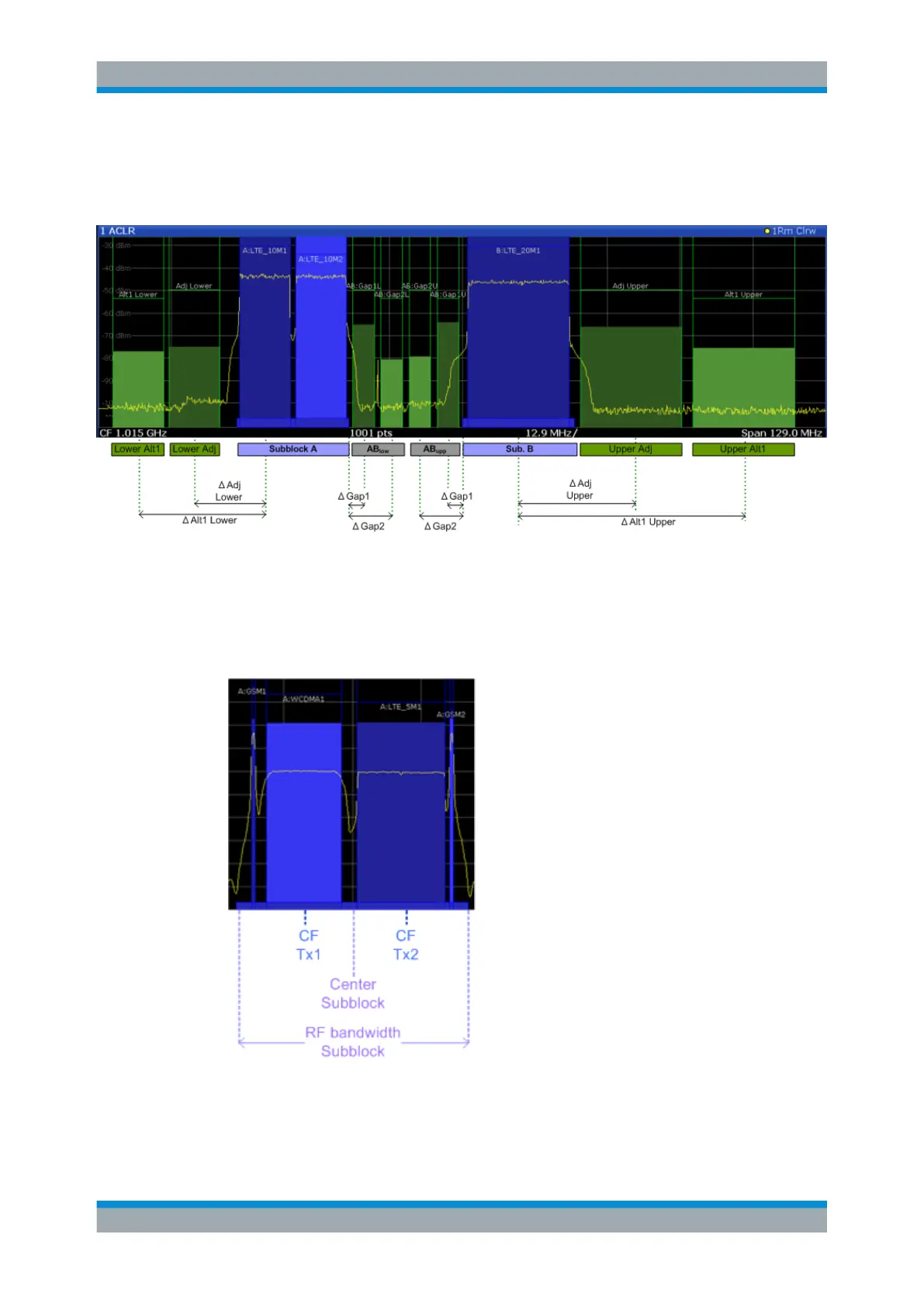

Figure 7-24: MSR signal structure
Sub block and channel definition
The sub blocks are defined by a specified center frequency, RF bandwidth, and num-
ber of transmit channels.
Figure 7-25: Sub block definition
Channel Power and Adjacent-Channel Power (ACLR) Measurement
