Measurements and Results

R&S

FSVA3000/ R&S

FSV3000

227User Manual 1178.8520.02 ─ 01

●

Inserting ranges: a symmetrical range is inserted on the other side of the reference

range

●

Deleting ranges: the symmetrical range on the other side of the reference range is

also deleted

●

Editing range settings: the settings in the symmetrical range are adapted accord-

ingly

Note: If "Fast SEM" mode is deactivated while "Symmetrical Setup" mode is on, "Sym

Setup" mode is automatically also deactivated.

If "Fast SEM" mode is activated while "Symmetrical Setup" mode is on, not all range

settings can be set automatically.

Remote command:

[SENSe:]ESPectrum<sb>:SSETup on page 808

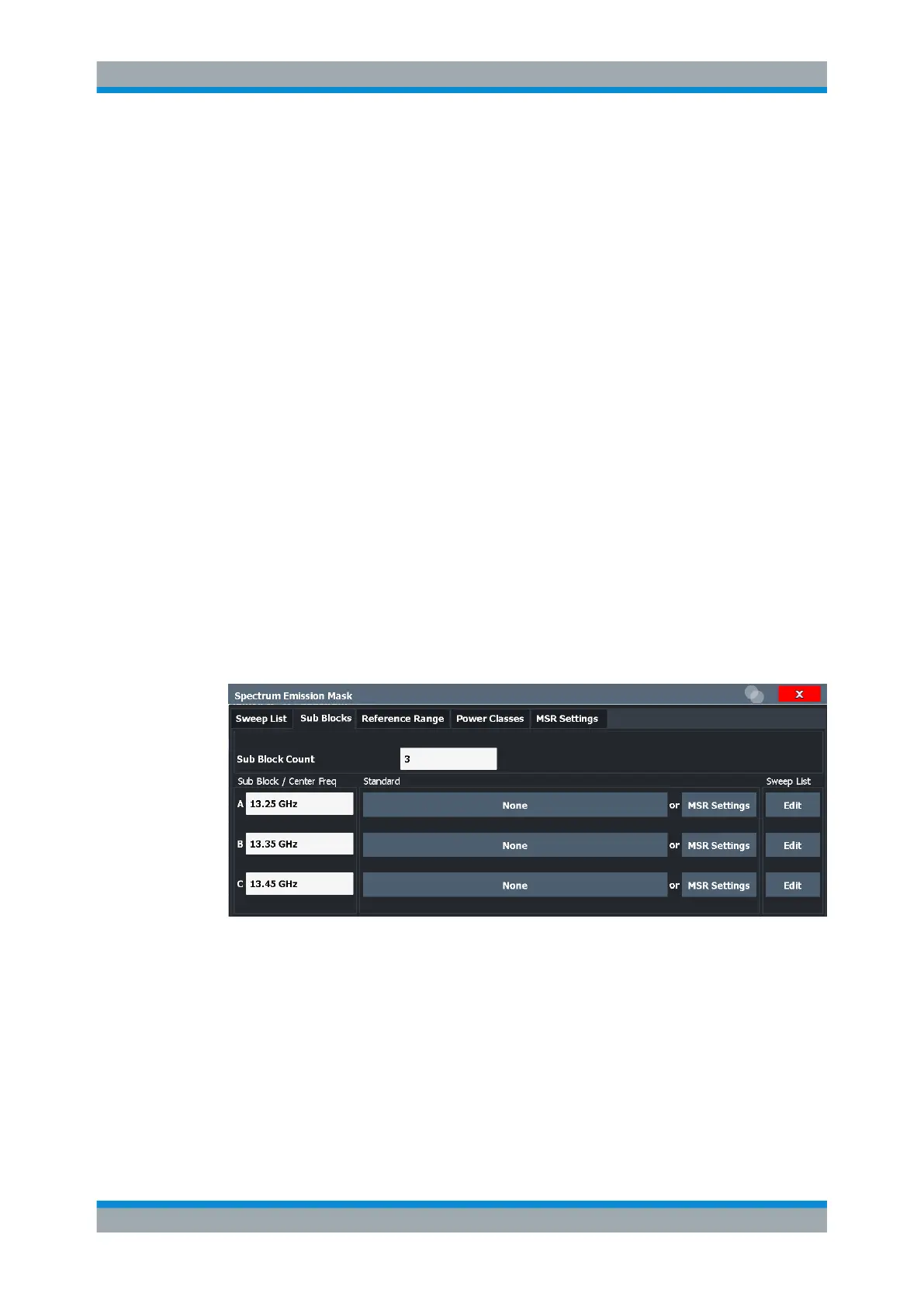

7.6.5.2 Multi-SEM (Sub Block) Settings

Access: "Overview" > "Select Measurement" > "Spectrum Emission Mask" > "Sub

Blocks"

In the Spectrum application application only, spectrum emissions can be measured for

multiple sub blocks of channels (see Chapter 7.6.4.5, "SEM with Multiple Sub Blocks

("Multi-SEM")", on page 216). Sub blocks are a set of multiple ranges around a defined

center frequency (carrier).

By default, a single sub block is assumed. If more than one sub blocks are defined,

additional tabs are inserted for each sub block in the individual tabs of the "Spectrum

Emission Mask" configuration dialog box.

Sub Block Count ........................................................................................................ 227

Sub Block / Center Freq .............................................................................................228

Standard / MSR Settings ............................................................................................228

Edit Sweep List .......................................................................................................... 228

Sub Block Count

Defines the number of sub blocks. By default, the familiar SEM measurement with just

one single block of ranges is configured.

Remote command:

[SENSe:]ESPectrum<sb>:SCOunt on page 794

Spectrum Emission Mask (SEM) Measurement
