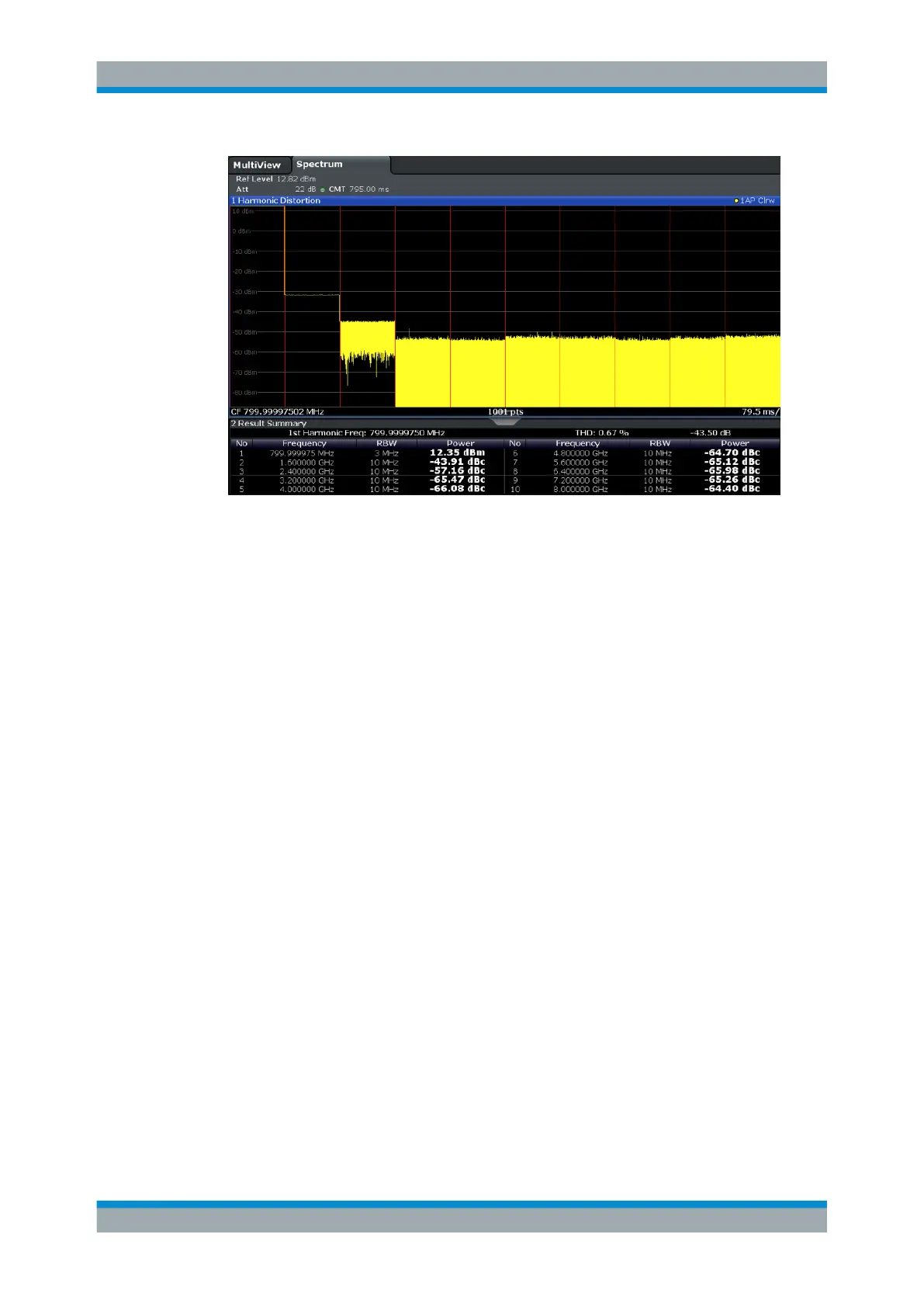

In addition, a result table is displayed providing the following information:
●
First harmonic frequency
●
THD (total harmonic distortion), relative and absolute values
●
For each detected harmonic:
– Frequency
– RBW
– Power
Remote commands
The results can also be queried using remote commands.
The first harmonic frequency can be read out via the general center frequency com-
mand [SENSe:]FREQuency:CENTer on page 886.
THD: CALCulate<n>:MARKer<m>:FUNCtion:HARMonics:DISTortion?
on page 860
List of harmonics: CALCulate<n>:MARKer<m>:FUNCtion:HARMonics:LIST
on page 860
7.10.4 Harmonic Distortion Configuration
Access: "Overview" > "Select Measurement" > "Harmonic Distortion" > "Harmonic Dis-
tortion Config"
Harmonic Distortion Measurement
