Measurements and Results
R&S
®
FSVA3000/ R&S
®
FSV3000
181User Manual 1178.8520.02 ─ 01
Channel names for all TX, adjacent, and alternate channels are user-definable.
In the "Names" tab, you can define a customized name for each channel in each sub
block. Note that the names are not checked for uniqueness.

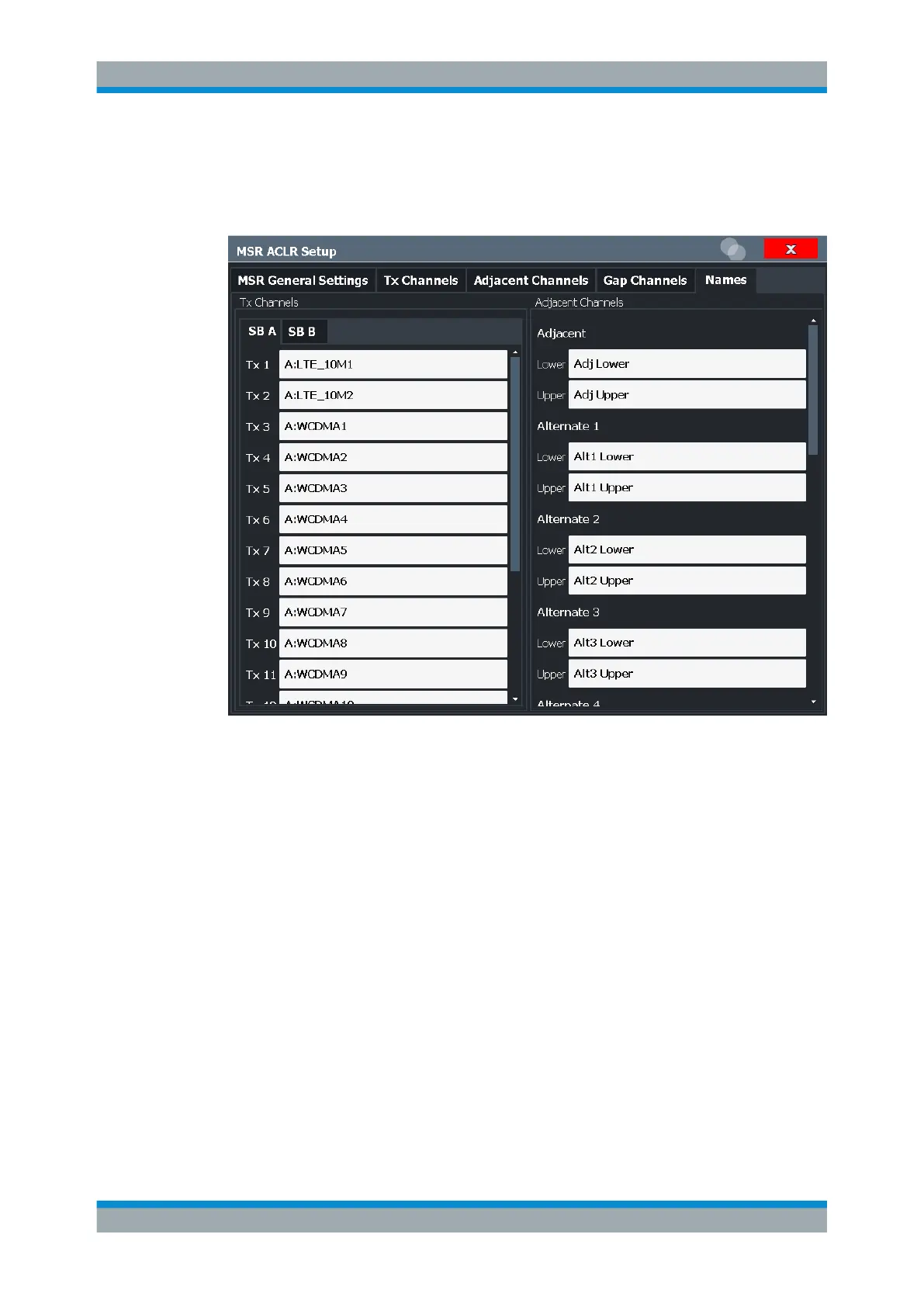

Figure 7-29: Channel name definition for asymmetric adjacent channels
Remote command:
[SENSe:]POWer:ACHannel:SBLock<sb>:NAME[:CHANnel<ch>] on page 780
[SENSe:]POWer:ACHannel:NAME:ACHannel on page 755
[SENSe:]POWer:ACHannel:NAME:ALTernate<ch> on page 755
[SENSe:]POWer:ACHannel:NAME:UACHannel on page 780
[SENSe:]POWer:ACHannel:NAME:UALTernate<ch> on page 780
7.3.6 How to Perform Channel Power Measurements
The following step-by-step instructions demonstrate the most common tasks when per-
forming channel power measurements.
Channel Power and Adjacent-Channel Power (ACLR) Measurement
