12.10.2 User-Defined Parameter Coupling
Access: [SETUP] > "Parameter Coupling" > "User Coupling"
User couplings allow you to synchronize user-defined parameters, as well as markers
and lines, between measurement channels.
Compared to the predefined couplings, user couplings do not necessarily have to syn-
chronize all active measurement channels. Instead you can define specific channels
that are synchronized with each other, in any combination, while other channels remain
independent.
Example:
You currently run two instances of the Spectrum application, two instances of the VSA
application, and one instance of the Analog Demodulation application.
You can synchronize only the first instance of the Spectrum application with the first
instance of the VSA application, while the other three channels remain independent.
Alternatively, you can synchronize all instances of the VSA application, while the Spec-
trum and Analog Demodulation applications remain independent.

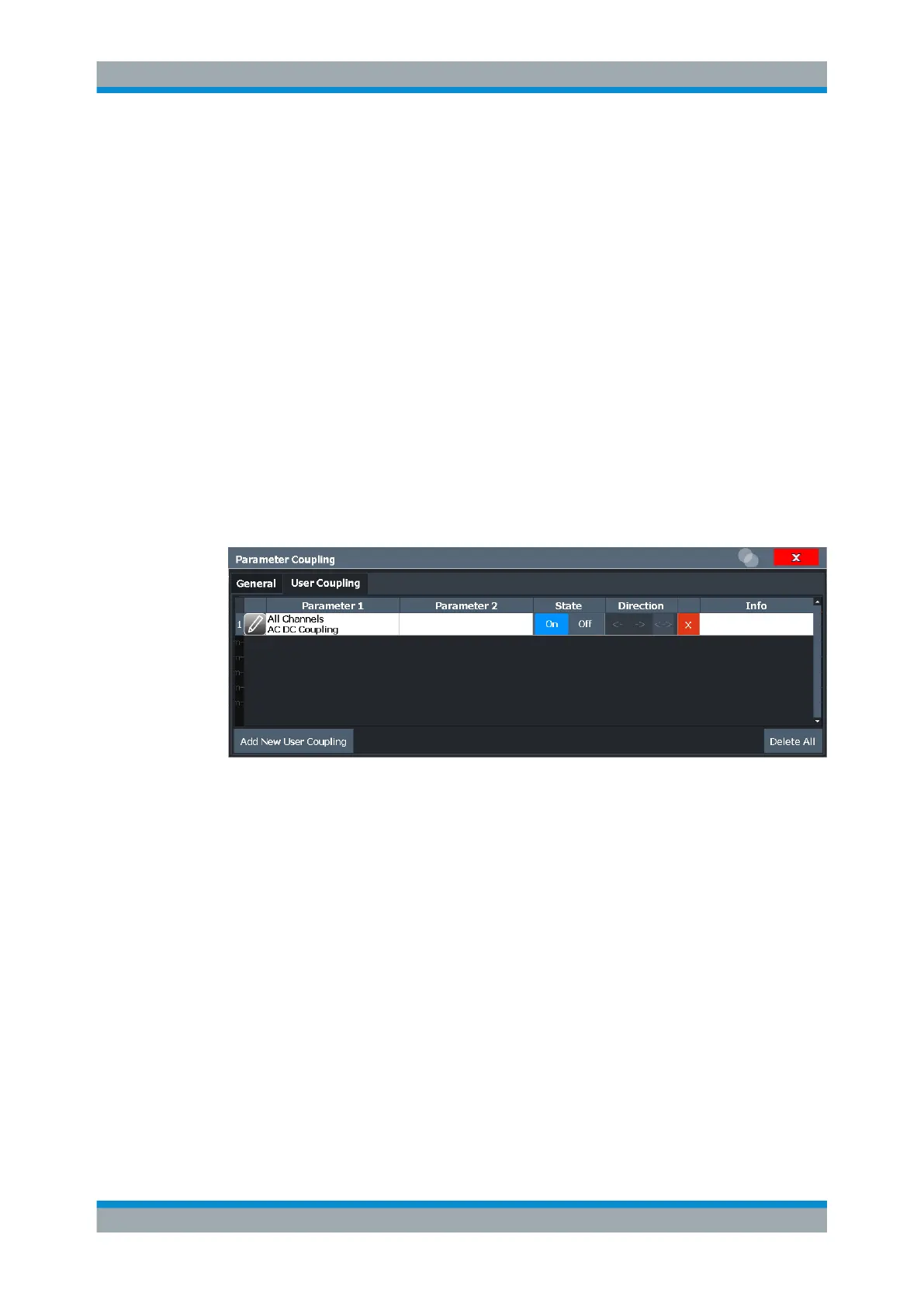

Any existing user-defined couplings are displayed in the dialog box.
Index........................................................................................................................... 635
Edit coupling definition................................................................................................ 635
Parameter 1 / Parameter 2..........................................................................................635
State............................................................................................................................635
Direction......................................................................................................................635
Delete coupling definition............................................................................................635
Info.............................................................................................................................. 636
Delete All.....................................................................................................................636
Add New User Coupling..............................................................................................636
└ Category....................................................................................................... 636
└ Channel 1 / Channel 2.................................................................................. 636
└ Specifics for Window.....................................................................................637
└ Coupling Element 1 / Coupling Element 2.................................................... 637
└ Couple Selected Parameters........................................................................637
