12.9.3 Calibration Signal Display

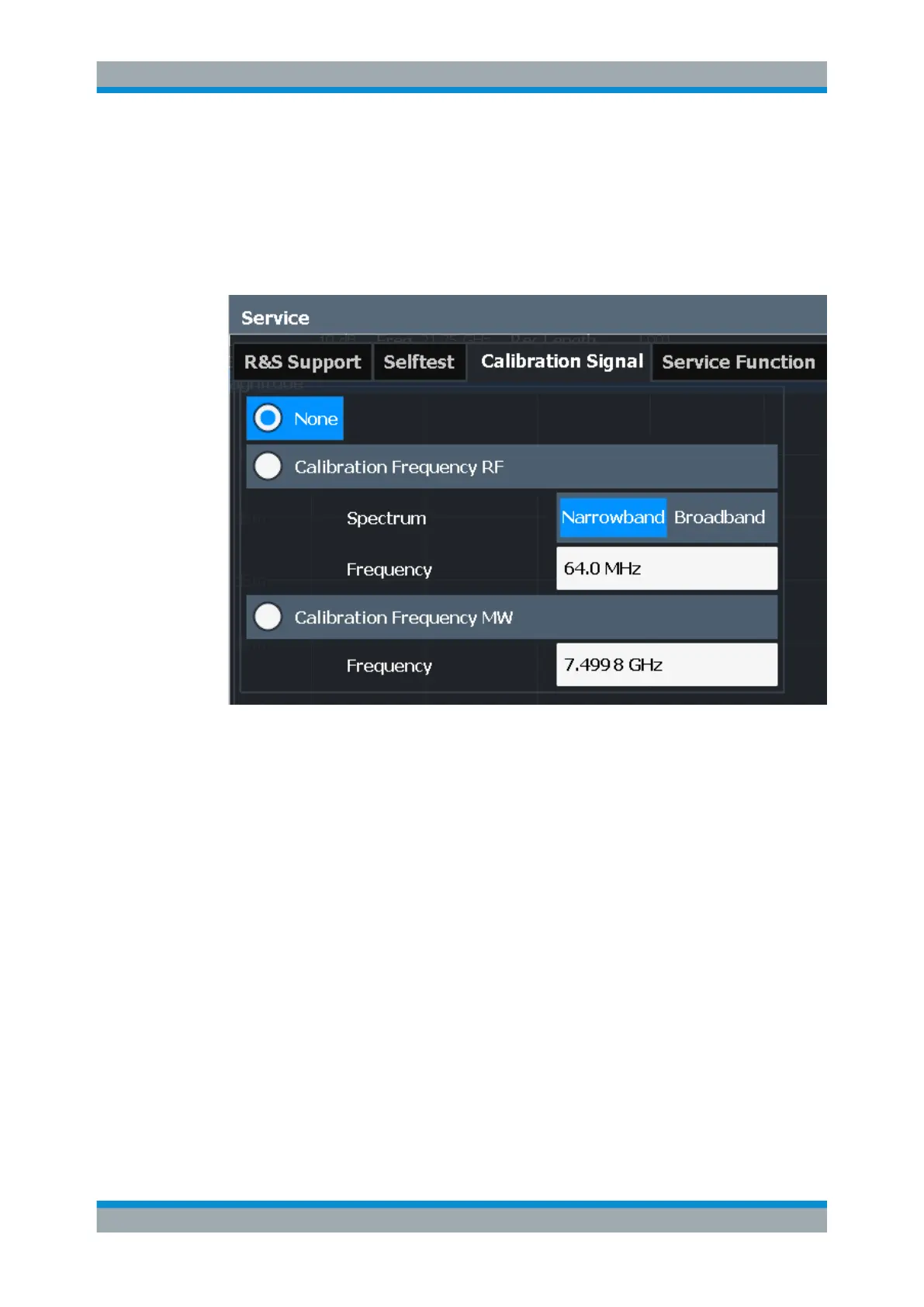

Access: [Setup] > "Service" > "Calibration Signal"
Alternatively to the RF input signal from the front panel connector you can use the
instrument's calibration signal as the input signal, for example to perform service func-
tions on.
NONE .........................................................................................................................628
Calibration Frequency RF .......................................................................................... 628
└ Spectrum ......................................................................................................628
└ Frequency ....................................................................................................629
Calibration Frequency MW .........................................................................................629
NONE
Uses the current RF signal at the input, i.e. no calibration signal (default).
Remote command:
DIAGnostic:SERVice:INPut[:SELect] on page 1096
Calibration Frequency RF
Uses the internal calibration signal as the RF input signal.
Remote command:
DIAGnostic:SERVice:INPut[:SELect] on page 1096
DIAGnostic:SERVice:INPut:PULSed:CFRequency on page 1095
Spectrum ← Calibration Frequency RF
Defines whether a broadband or narrowband calibration signal is sent to the RF input.
"Narrowband"
Used to calibrate the absolute level of the frontend at 64 MHz.
Service Functions
