Common Measurement Settings
R&S
®
FSVA3000/ R&S
®
FSV3000
311User Manual 1178.8520.02 ─ 01

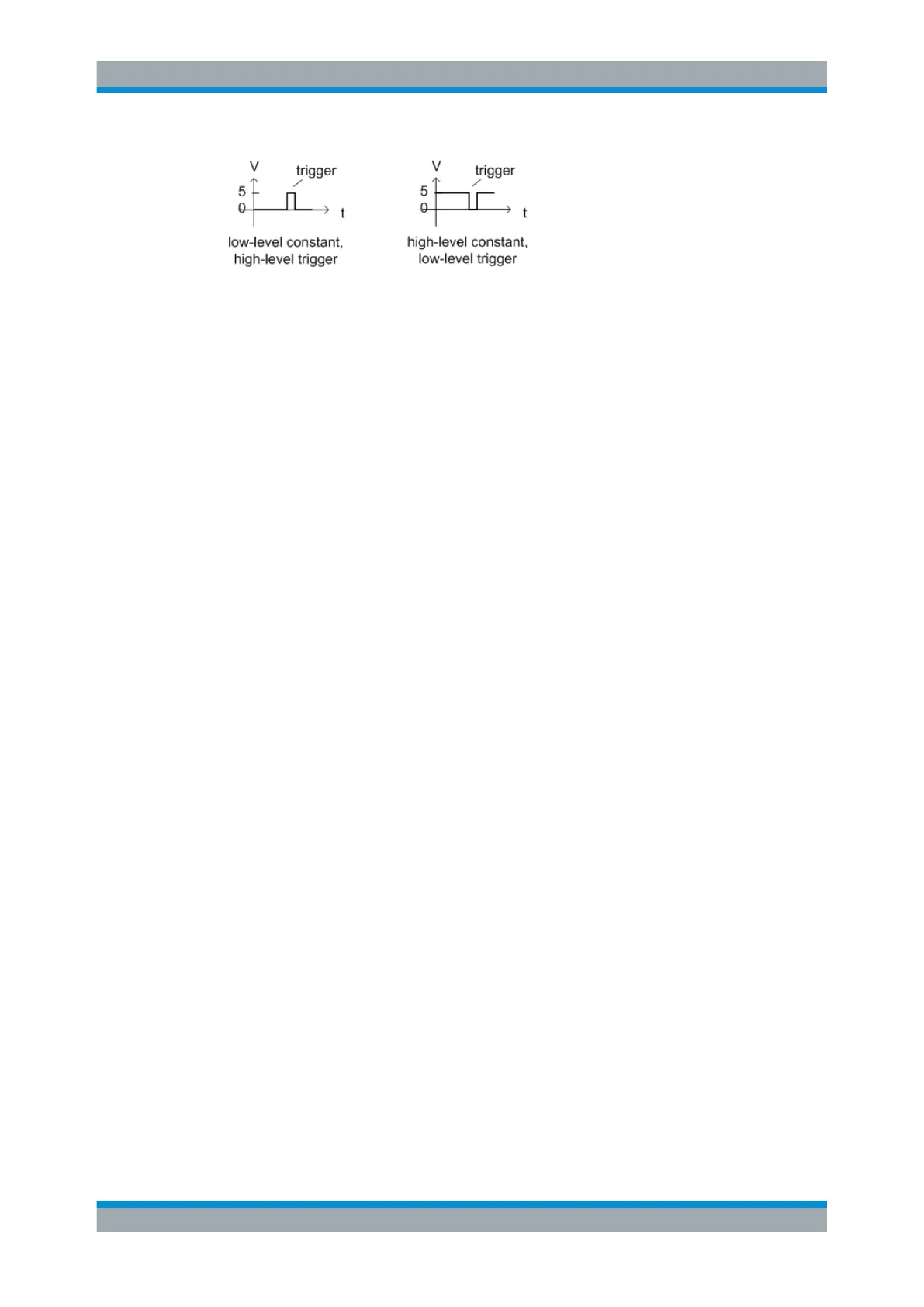

8.2.1.3 IF and Video Signal Output
The measured IF signal or displayed video signal (i.e. the filtered and detected IF sig-
nal) can be provided at the IF output connector of the R&S FSV/A.
The video output is a signal of 1 V. It can be used, for example, to control demodula-
ted audio frequencies.
The IF output is a signal of the measured level at a specified frequency.
Restrictions
Note the following restrictions for data output:
●
IF and video output is only available in the time domain (zero span).
●
For I/Q data, only IF output is available.
●
IF output is not available if any of the following conditions apply:
– The sample rate is larger than 200 MHz (upsampling)
8.2.2 Input Source Settings
Access: "Overview" > "Input" > "Input Source"
The input source determines which data the R&S FSV/A will analyze.
The default input source for the R&S FSV/A is "Radio Frequency" , i.e. the signal at the
"RF Input" connector of the R&S FSV/A. If no additional options are installed, this is the
only available input source.
● Radio Frequency Input..........................................................................................311
● Probe Settings.......................................................................................................314
8.2.2.1 Radio Frequency Input
Access: "Overview" > "Input/Frontend" > "Input Source" > "Radio Frequency"
Data Input and Output
