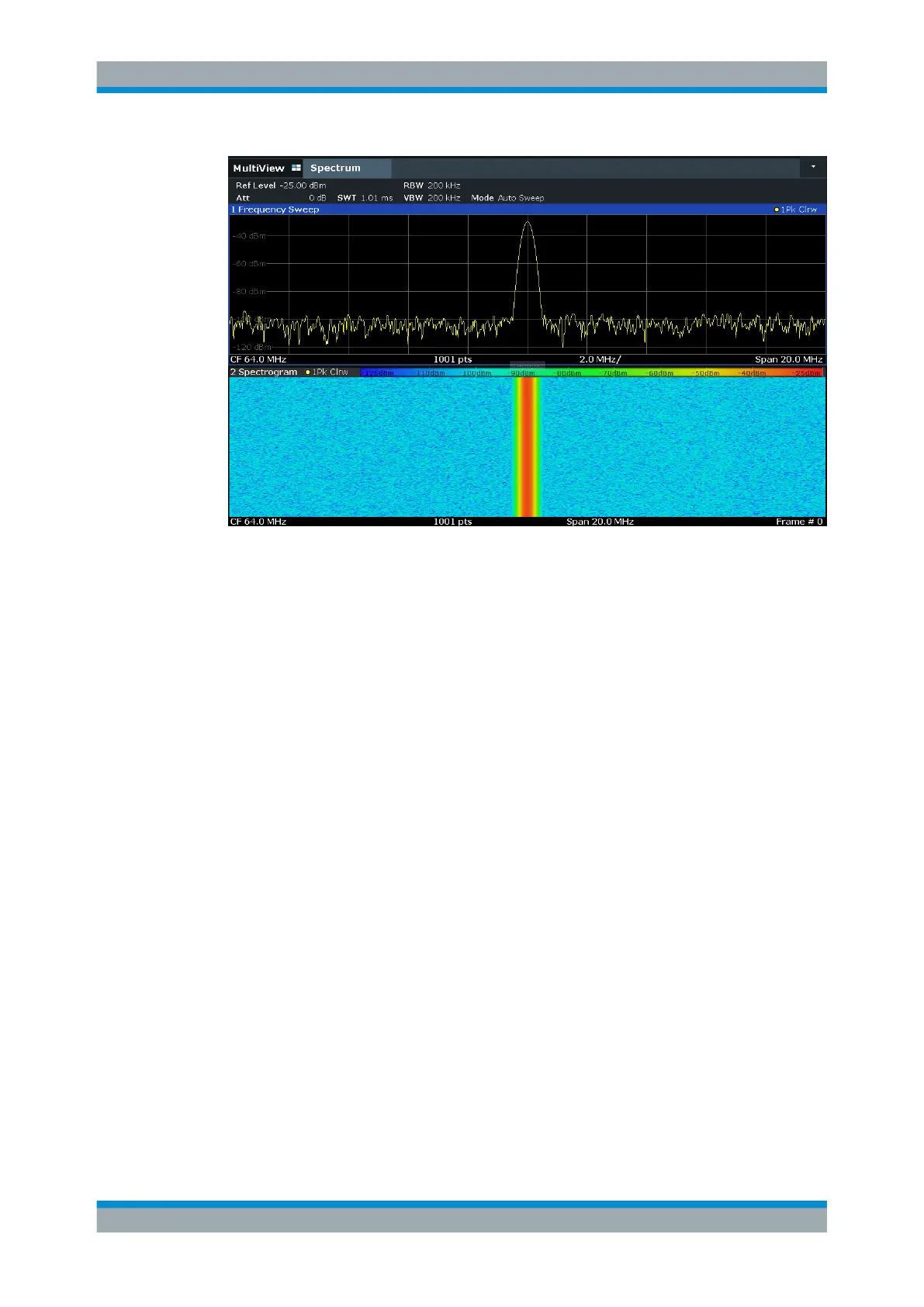

Figure 5-7: Spectrogram of the calibration signal
5.3.3 Activating Additional Measurement Channels
The R&S FSV/A features multiple measurement channels, i.e. you can define several
measurement configurations in parallel and then switch between the channels auto-
matically to perform the measurements sequentially. We will demonstrate this feature
by activating additional measurement channels for a different frequency range, a zero
span measurement, and an I/Q analysis.
To activate additional measurement channels
1. Press the [Mode] key on the front panel.
2. On the "New Channel" tab of the "Signal + Spectrum Mode" dialog box, tap the
"Spectrum" button.
