R&S FSV3000 Series - Page 62

Getting Started
R&S
®
FSVA3000/ R&S
®
FSV3000
62User Manual 1178.8520.02 ─ 01

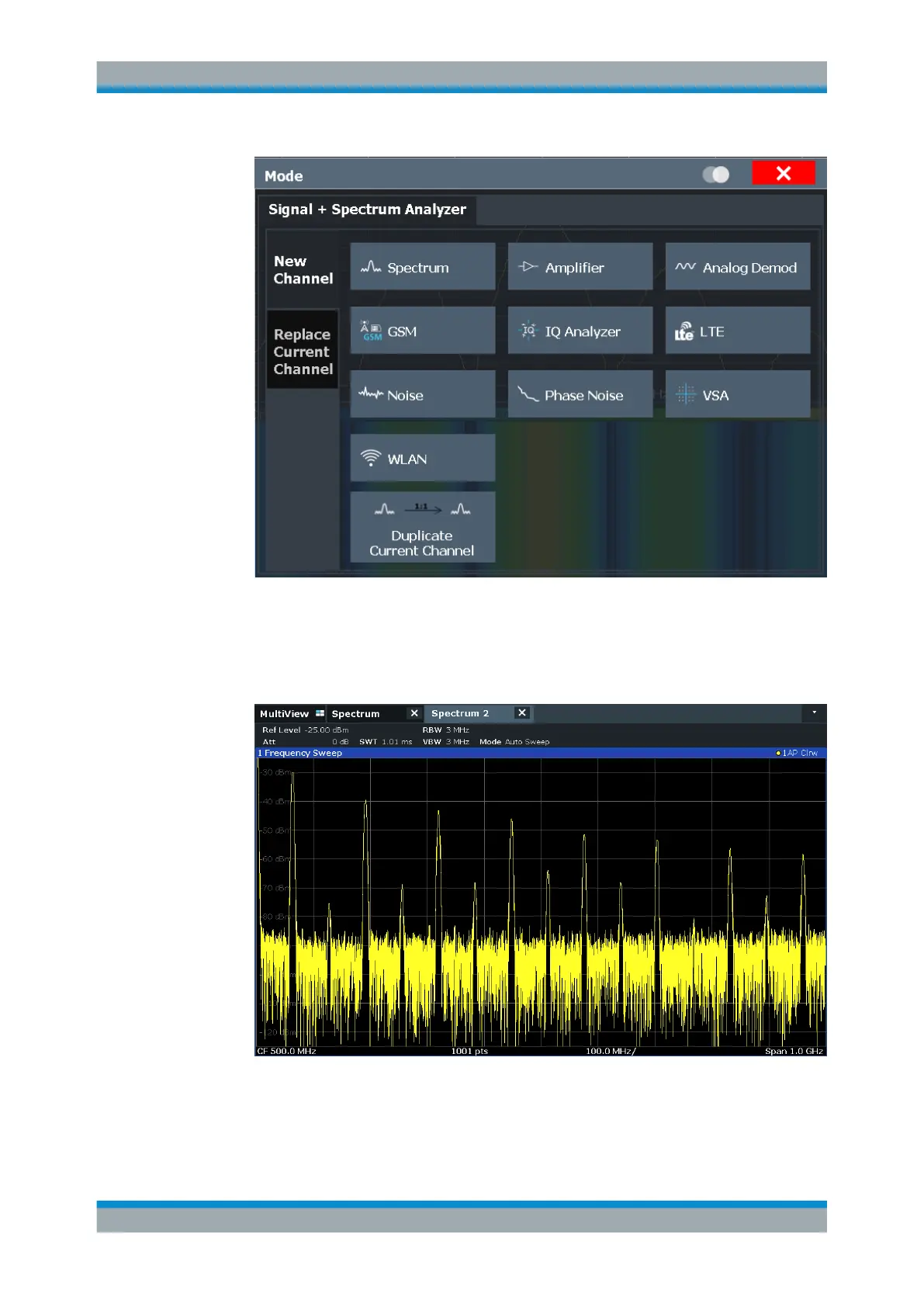

Figure 5-8: Adding a new measurement channel
3. Change the frequency range for this spectrum display:
In the "Frequency" dialog box, set the center frequency to 500 MHz and the span
to 1
GHz.
Figure 5-9: Frequency spectrum of the calibration signal with a larger span
4. Repeat the previous steps to activate a third Spectrum window.
Change the frequency range for this spectrum display:
Trying Out the Instrument
