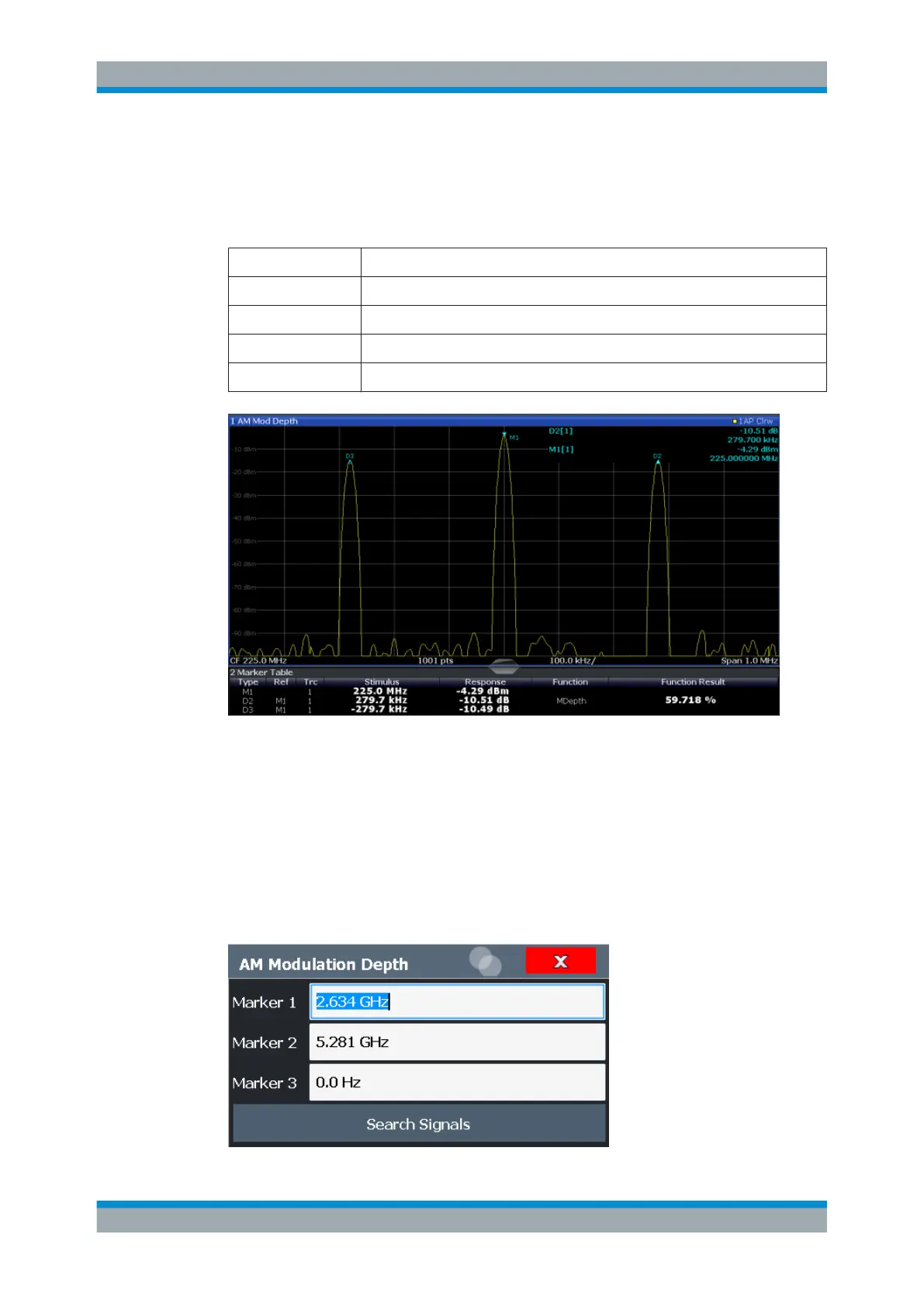

7.12.2 AM Modulation Depth Results
As a result of the AM Modulation Depth measurement, the following values are dis-
played in the marker area of the diagram:
Label Description
MDepth AM modulation depth in percent
M1 Maximum of the signal (= carrier level)
D2 Offset of next peak to the right of the carrier
D3 Offset of the next peak to the left of the carrier
Remote command:
The AM modulation depth can also be queried using the remote command
CALCulate<n>:MARKer<m>:FUNCtion:MDEPth:RESult<t>? on page 865.
7.12.3 AM Modulation Depth Configuration
Access: "Overview" > "Select Measurement" > "AM Modulation Depth" > "AM Mod
Depth Config"
AM Modulation Depth Measurement
